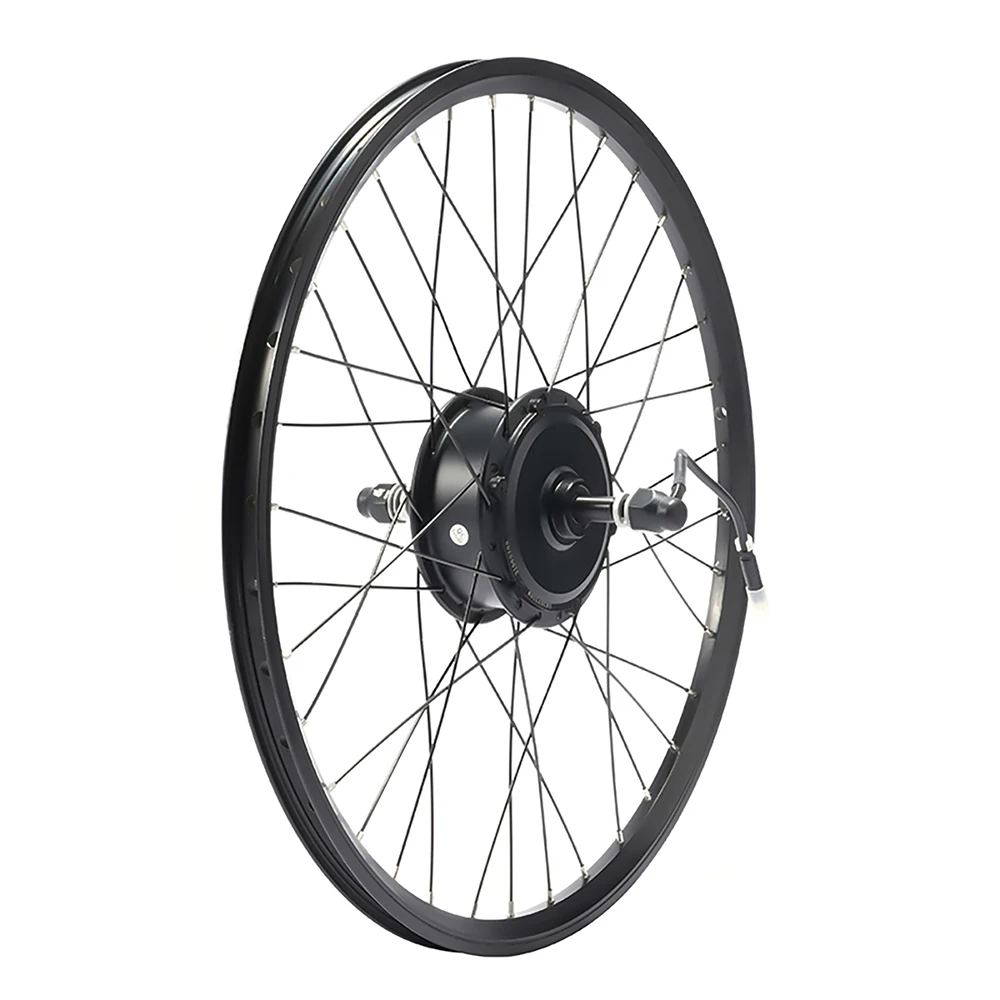

48V 750W Front/Rear Gear Hub Motor

Note:

Please use the 25A controller to run the 48v 750w hub motor.

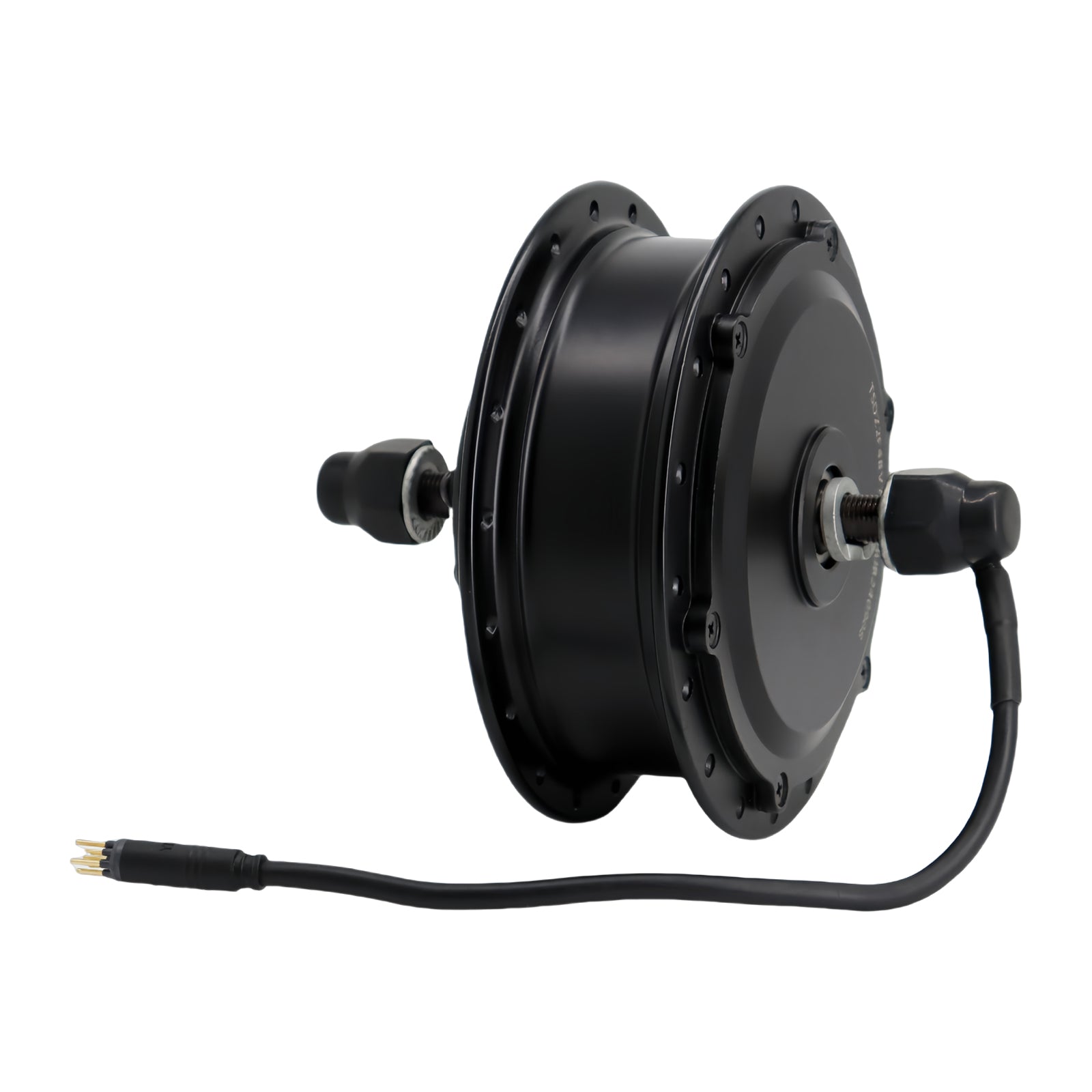

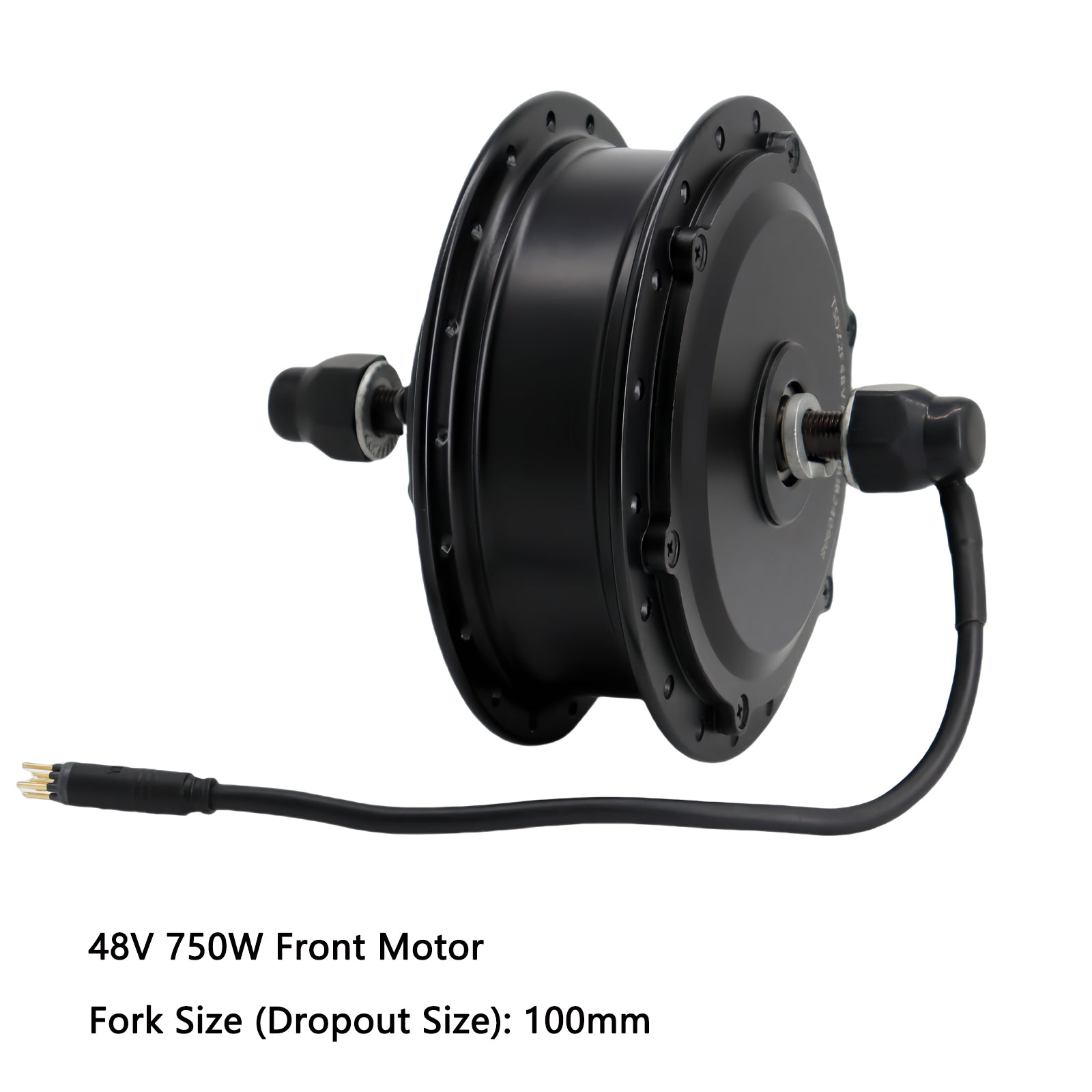

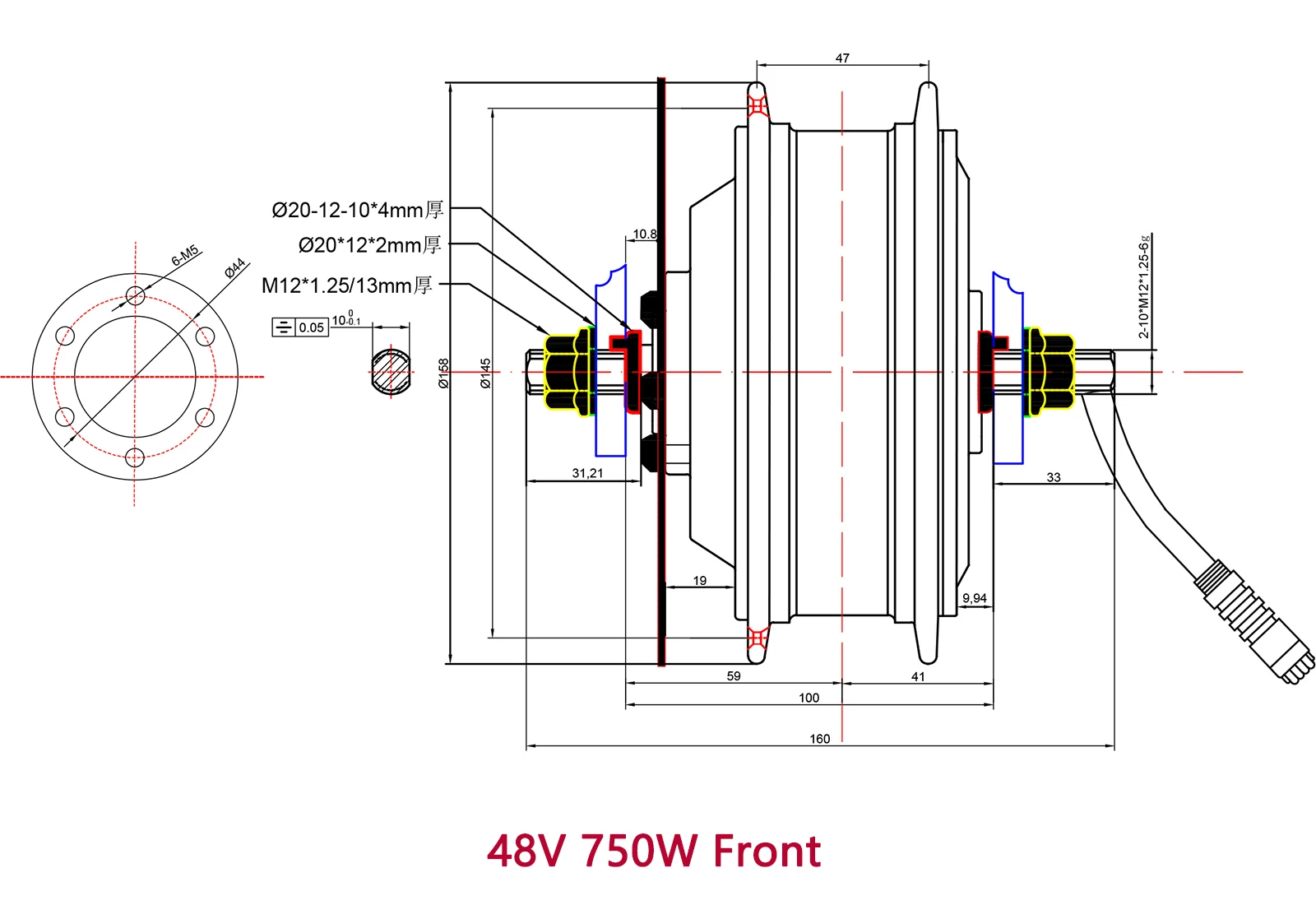

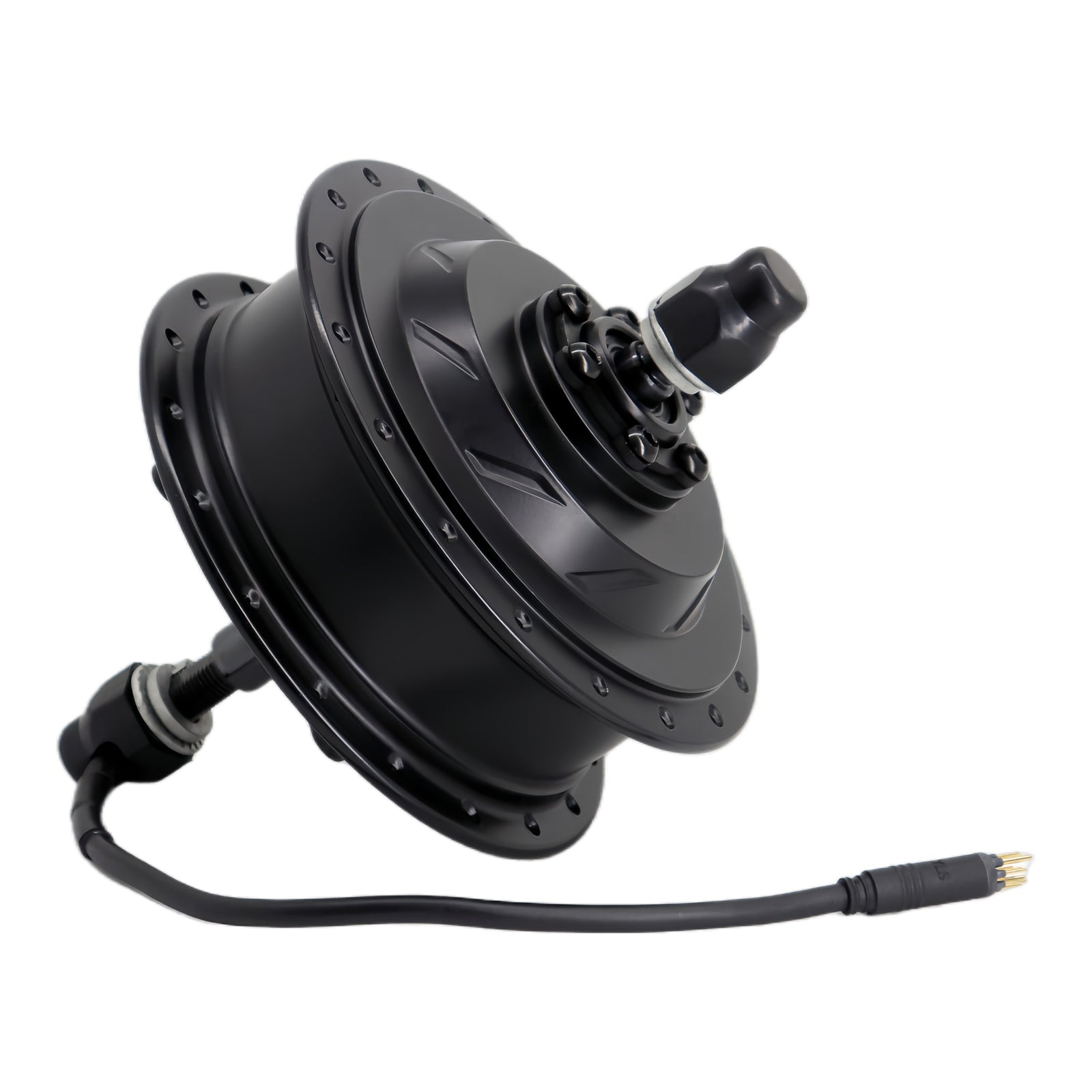

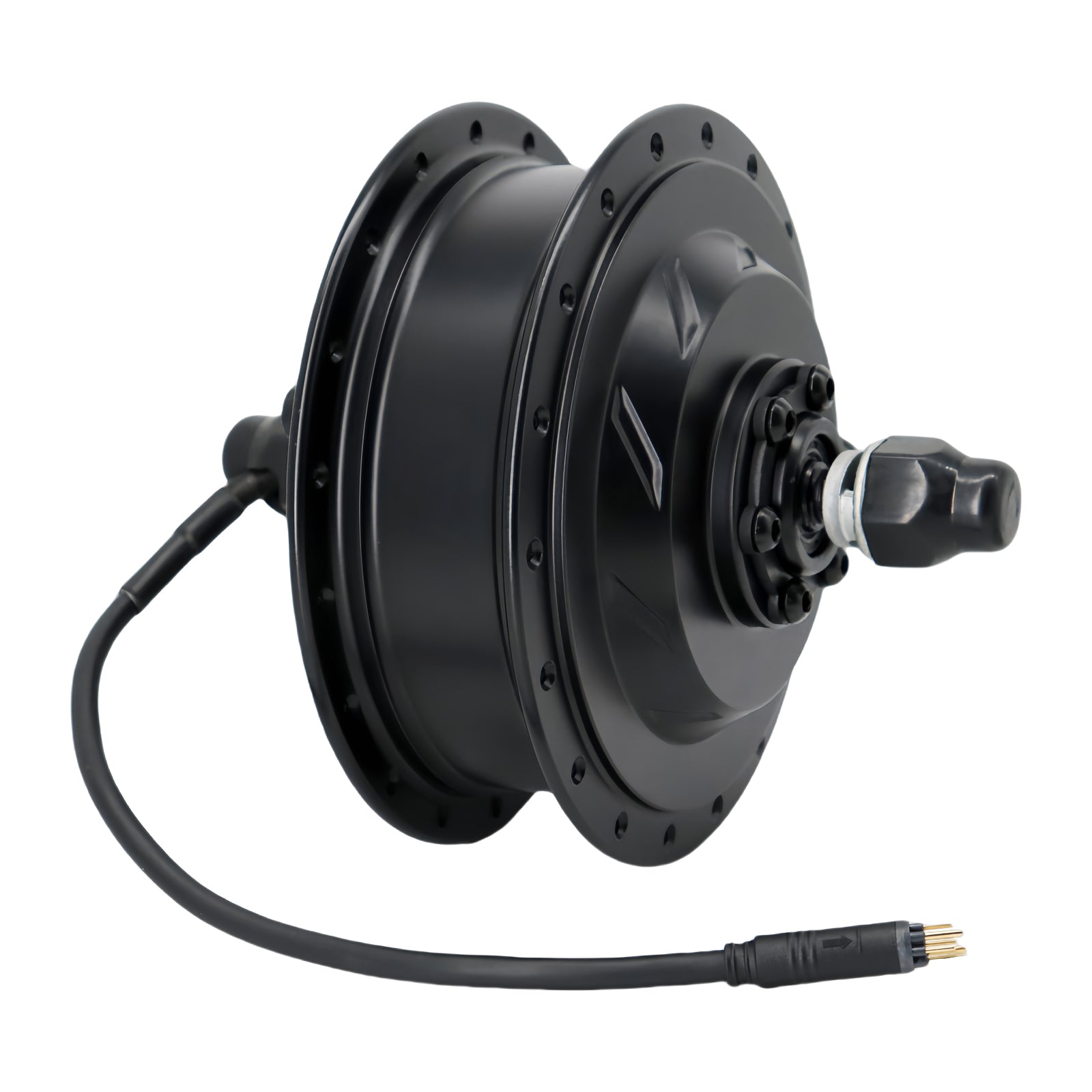

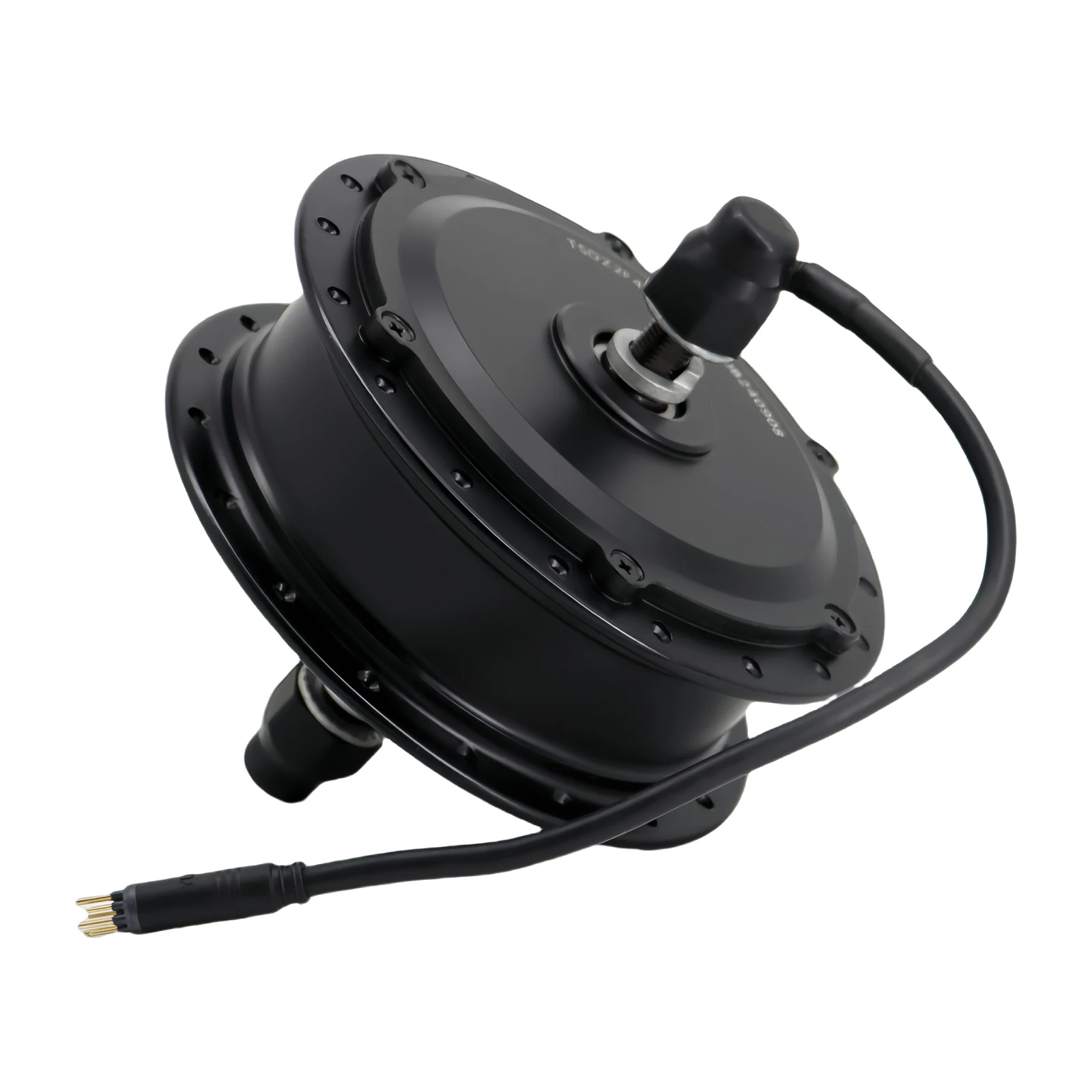

48V 750W Front Motor
Position                                  Front
Construction                           Gear
Rated Voltage(V)                     48
Rated Power(W)                      750
Weight(Kg)                              3.5
Reduction Ratio                      1:5.2
Wheel Diameter(lnch)             20-29
Rated Speed(km/h)      48V 750W RPM 350
Magnet Poles(2P)                         10
Fork size (Dropout Size)         100mm
Brake Type                          V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                      ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector: hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

Torque: 68 N.m

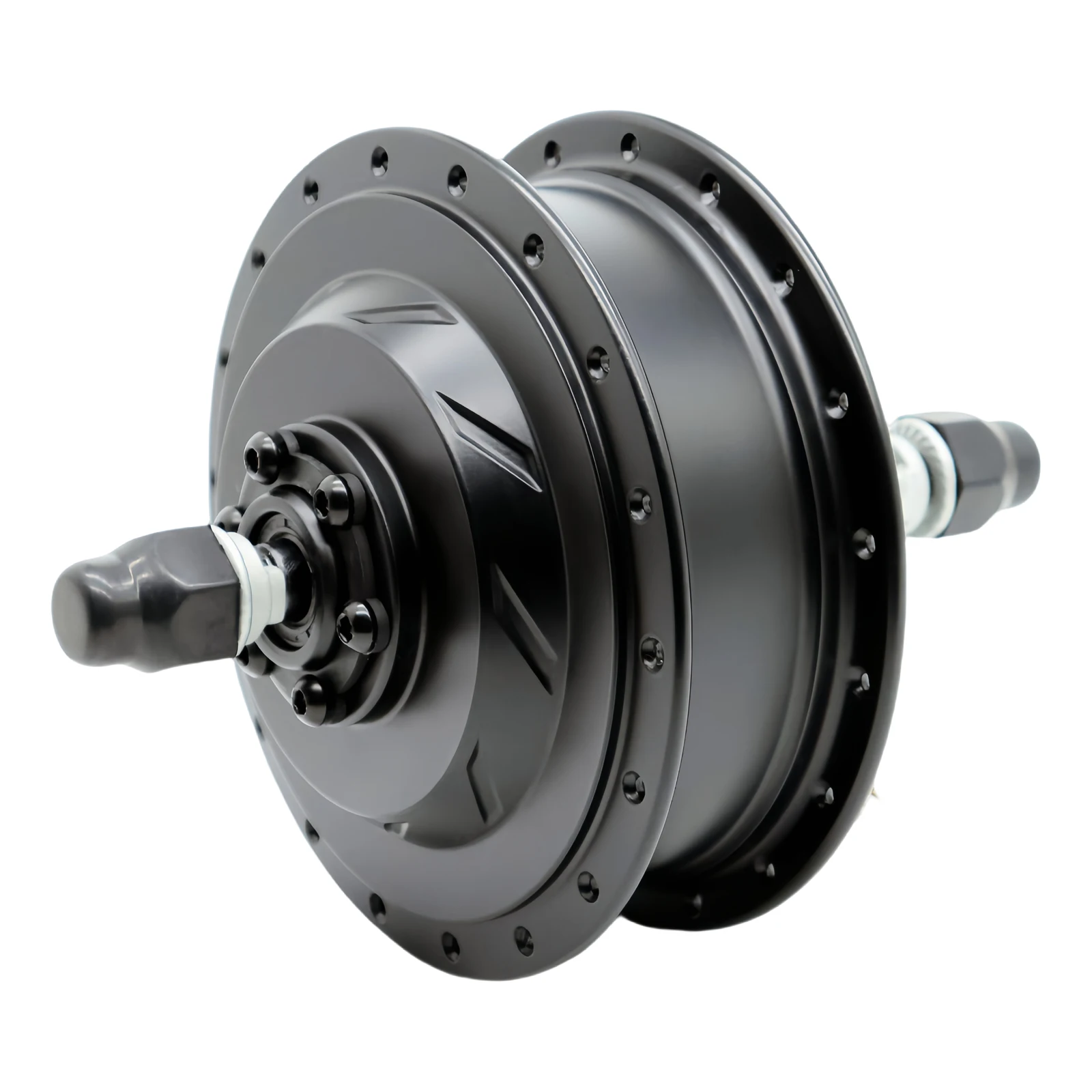

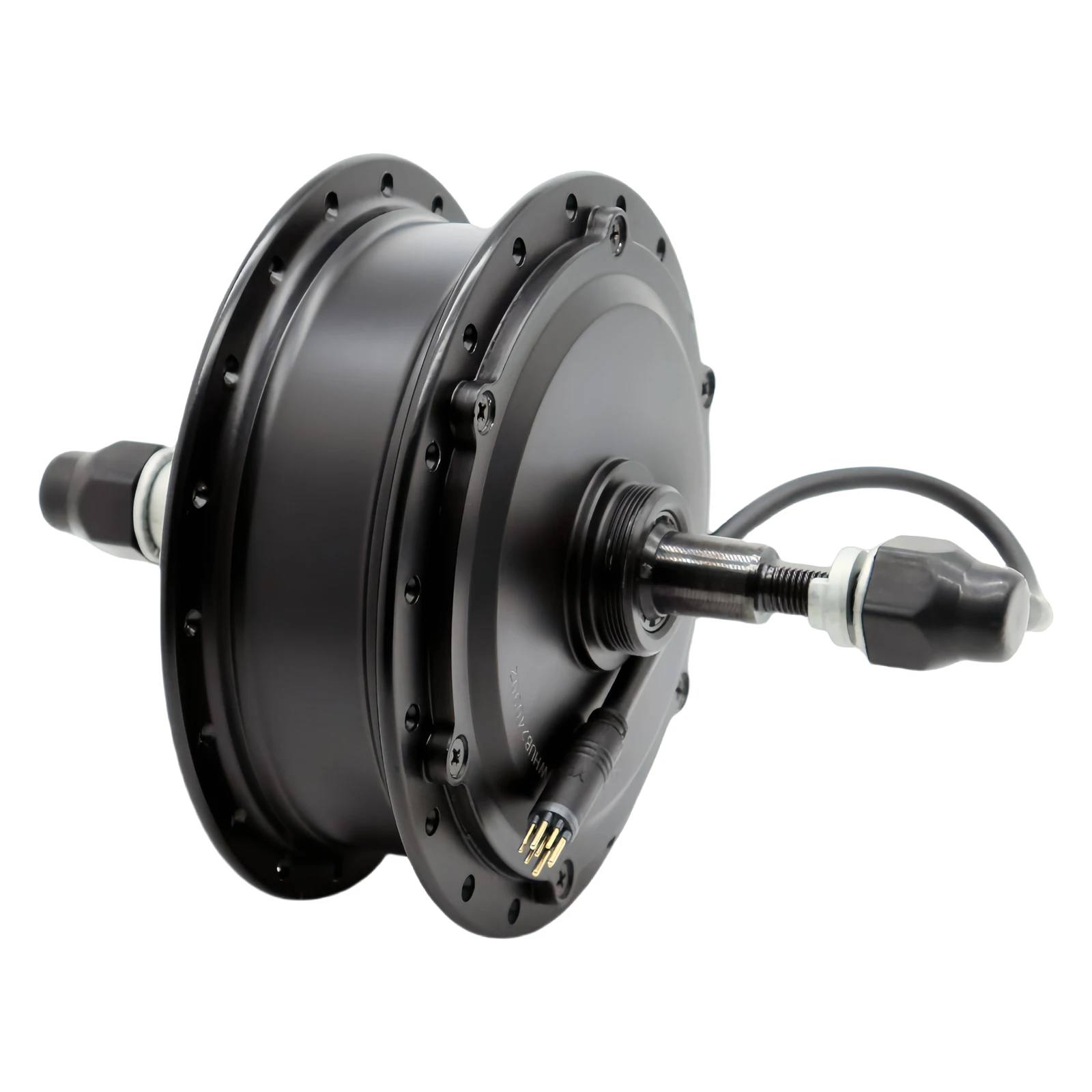

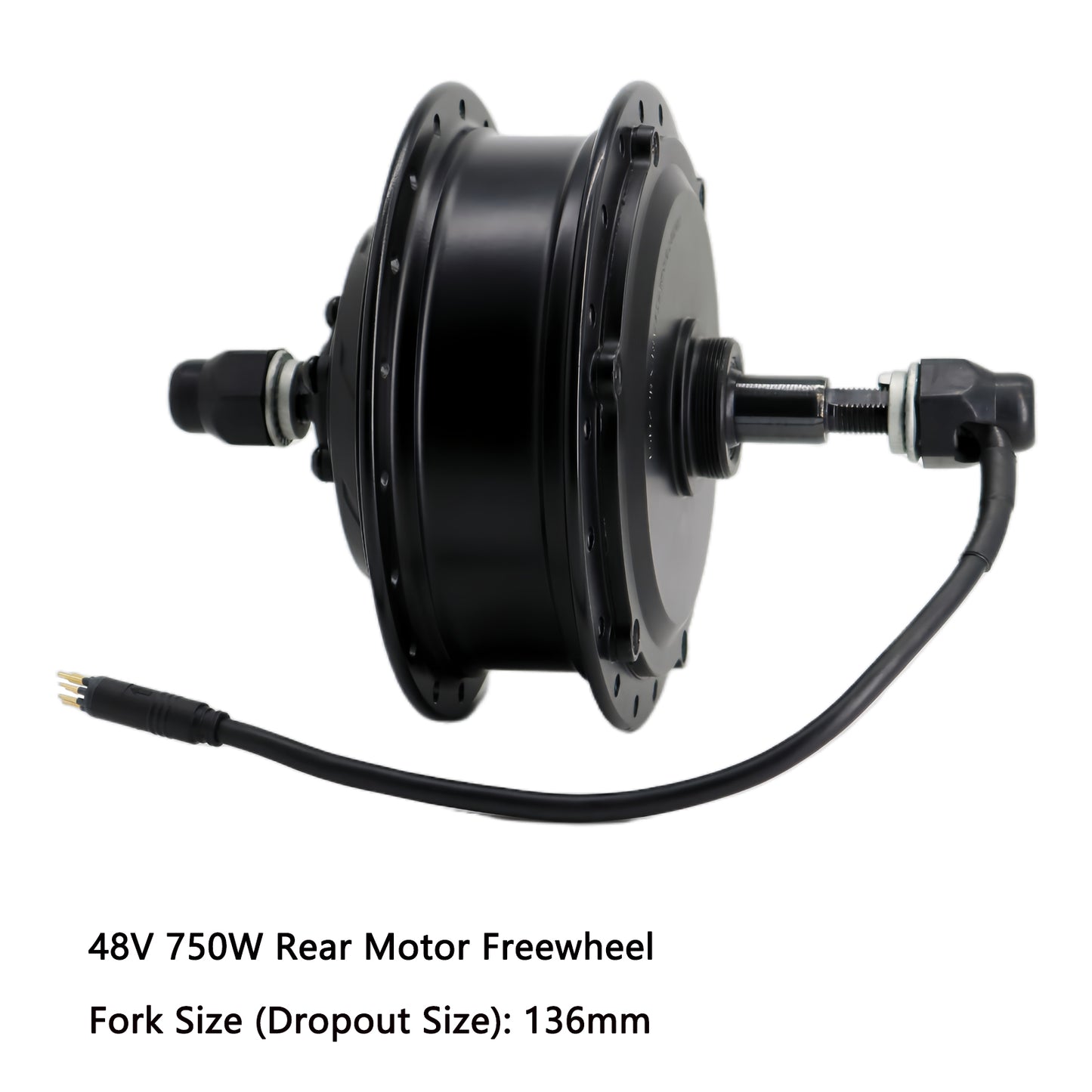

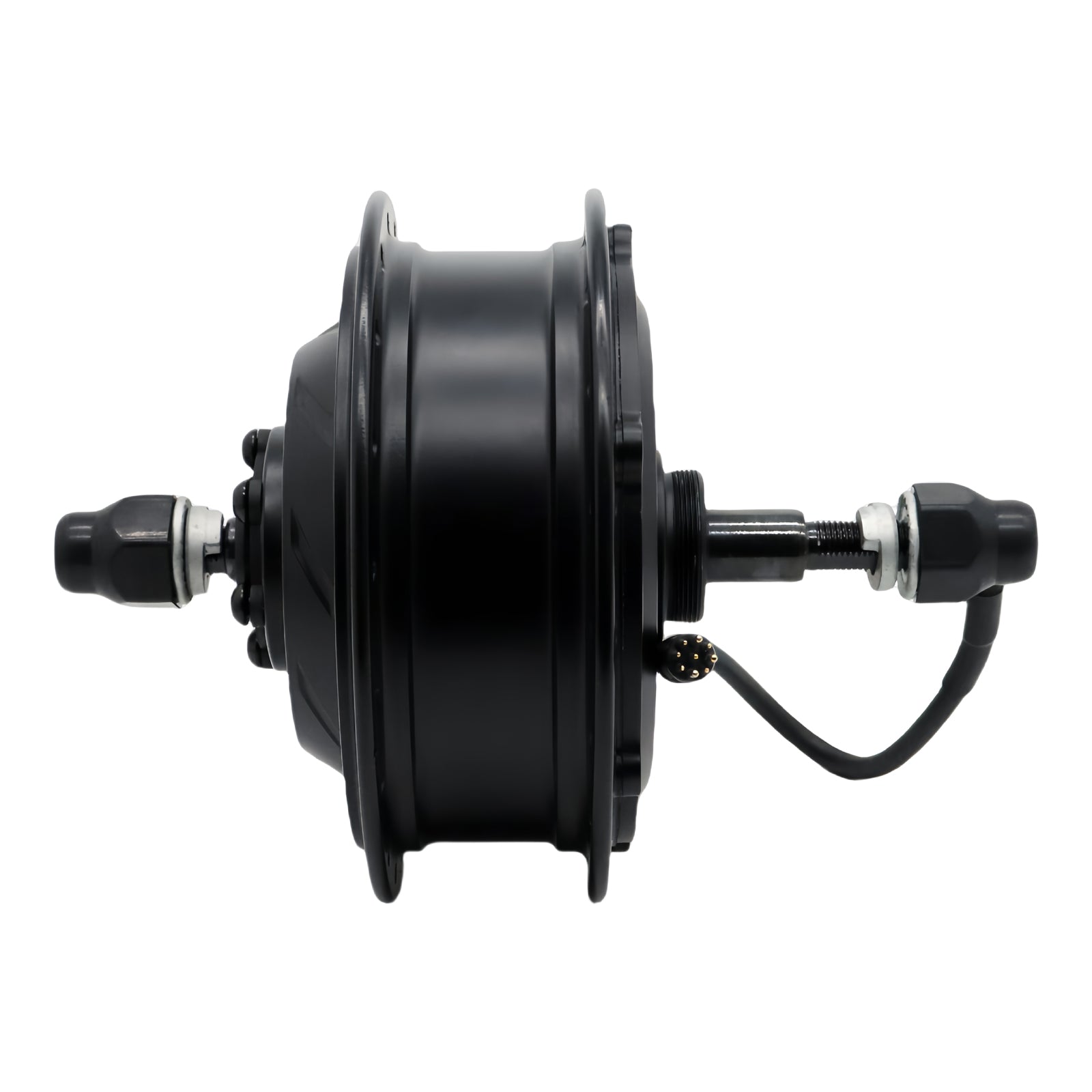

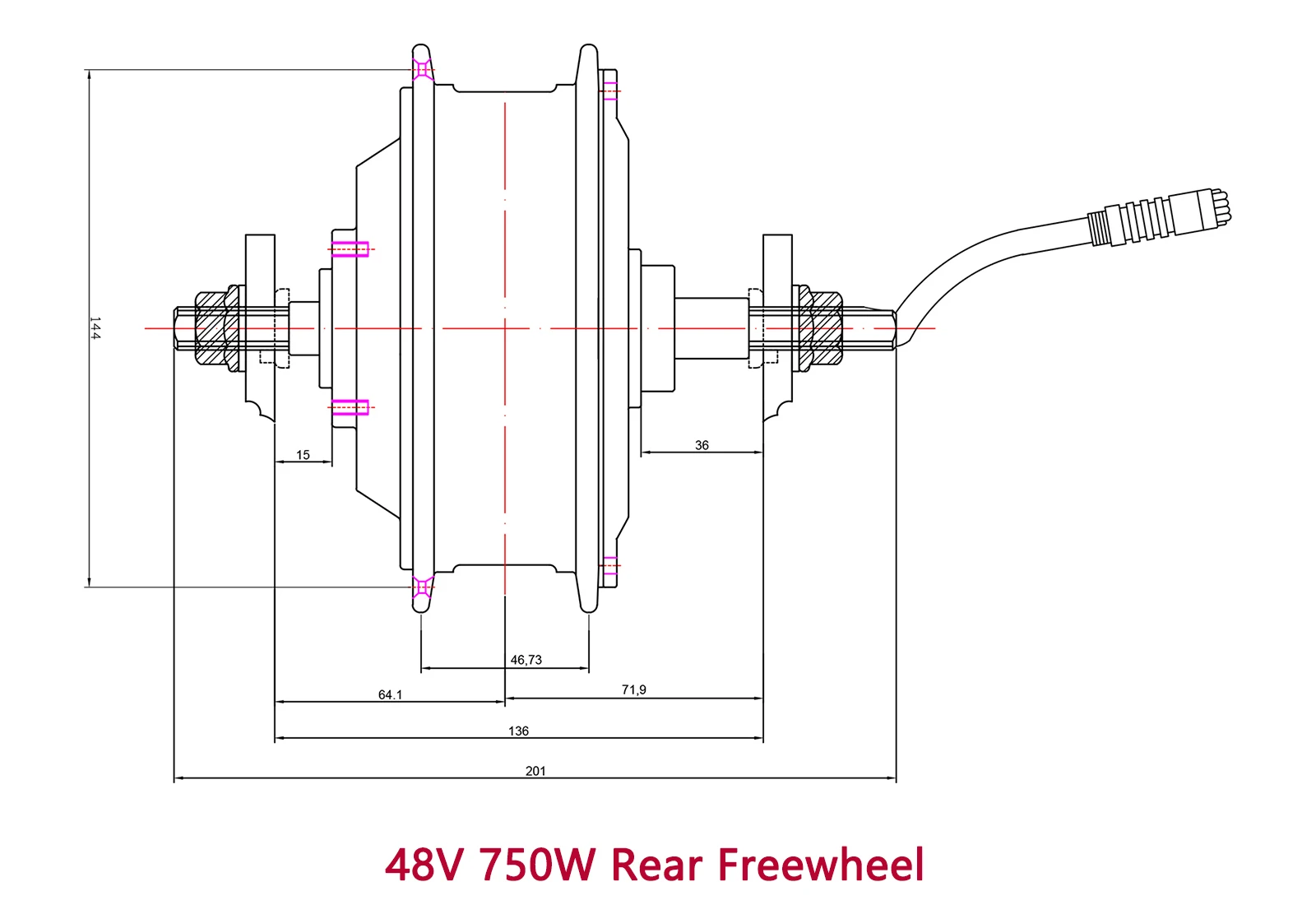

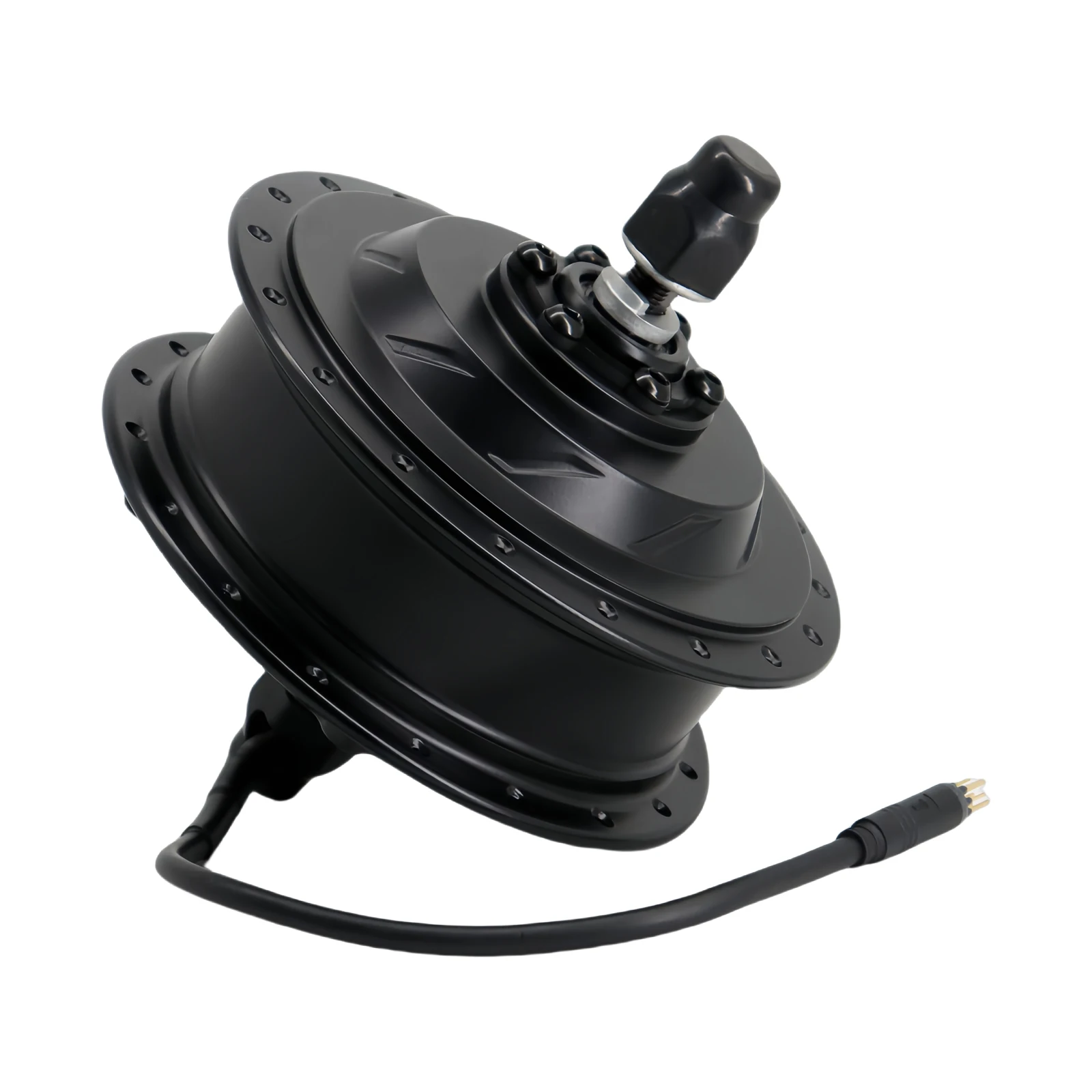

48V 750W Rear Freewheel Motor

Position                                   Rear
Construction                           Gear
Rated Voltage(V)                     48
Rated Power(W)                      750
Weight(Kg)                              3.6
Reduction Ratio                      1:5.2
Wheel Diameter(lnch)           20-29
Rated Speed(km/h)    48V 750W RPM 350
Magnet Poles(2P)                     10
Fork size (Dropout Size)          136mm
Freewheel                               6s-7s
Brake Type                        V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                      ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector: hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications                     ROHS/CE
Spoke Specification           36H*13G
Cable Length(mm), Connection Type 250 G9.1

Torque                                68 N.m

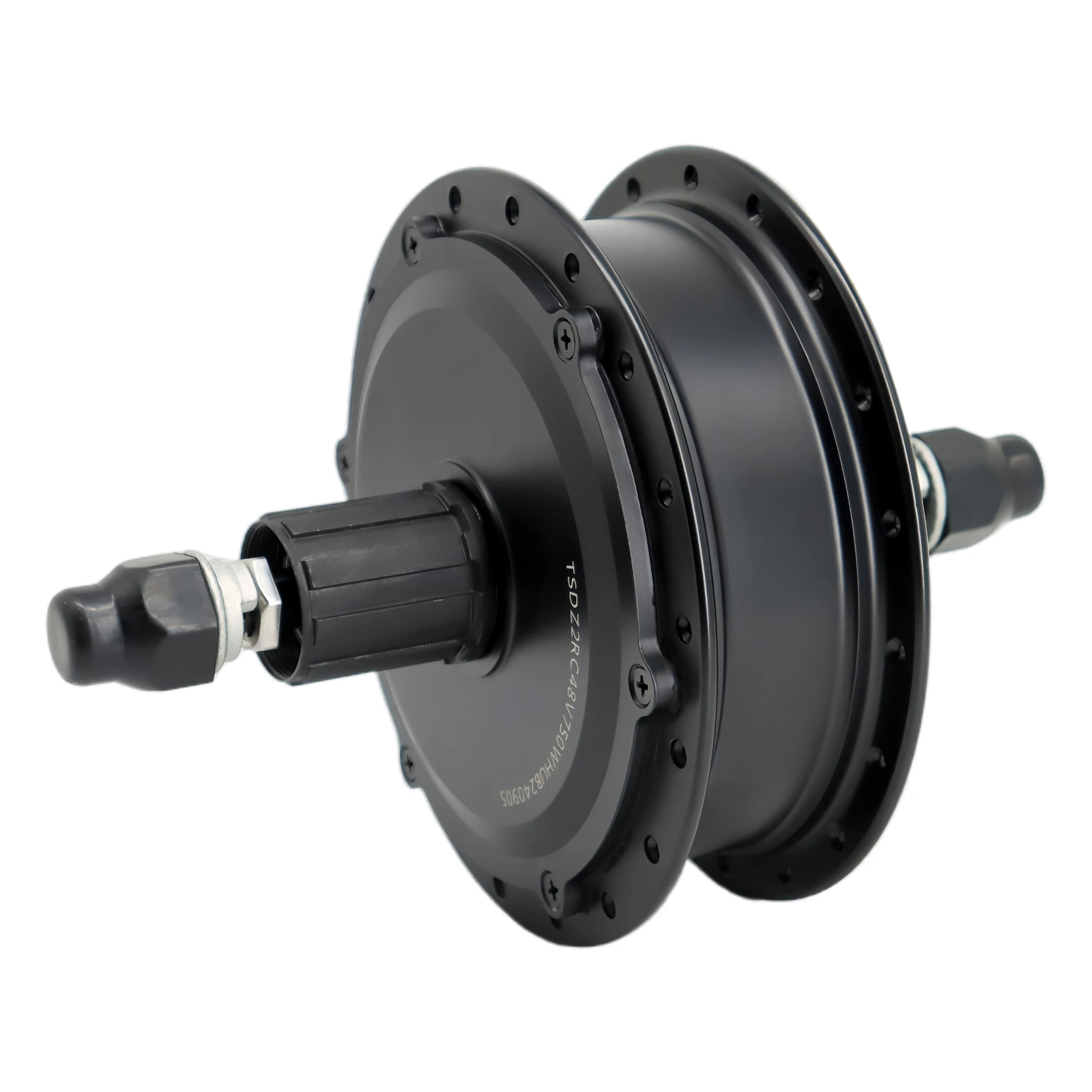

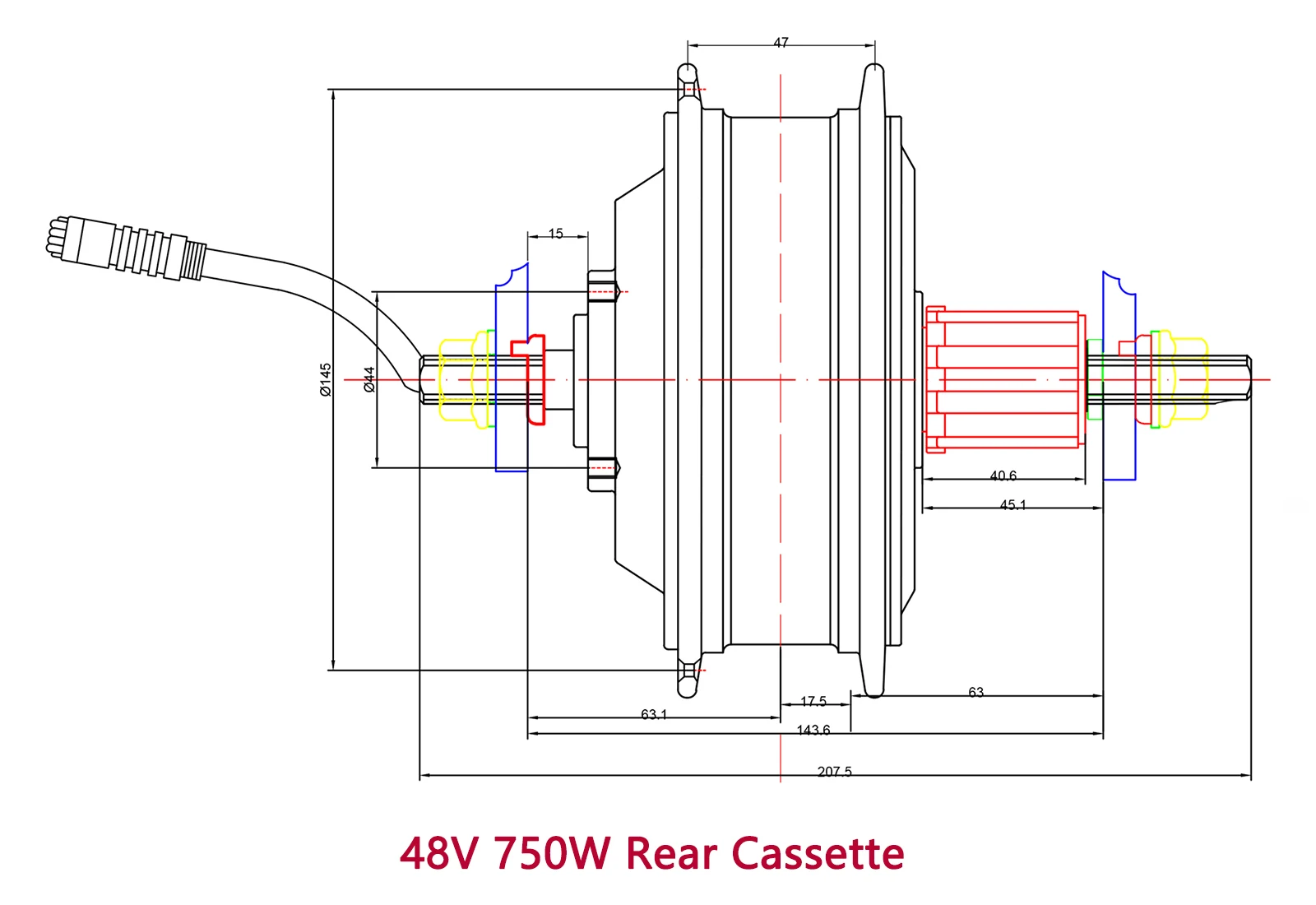

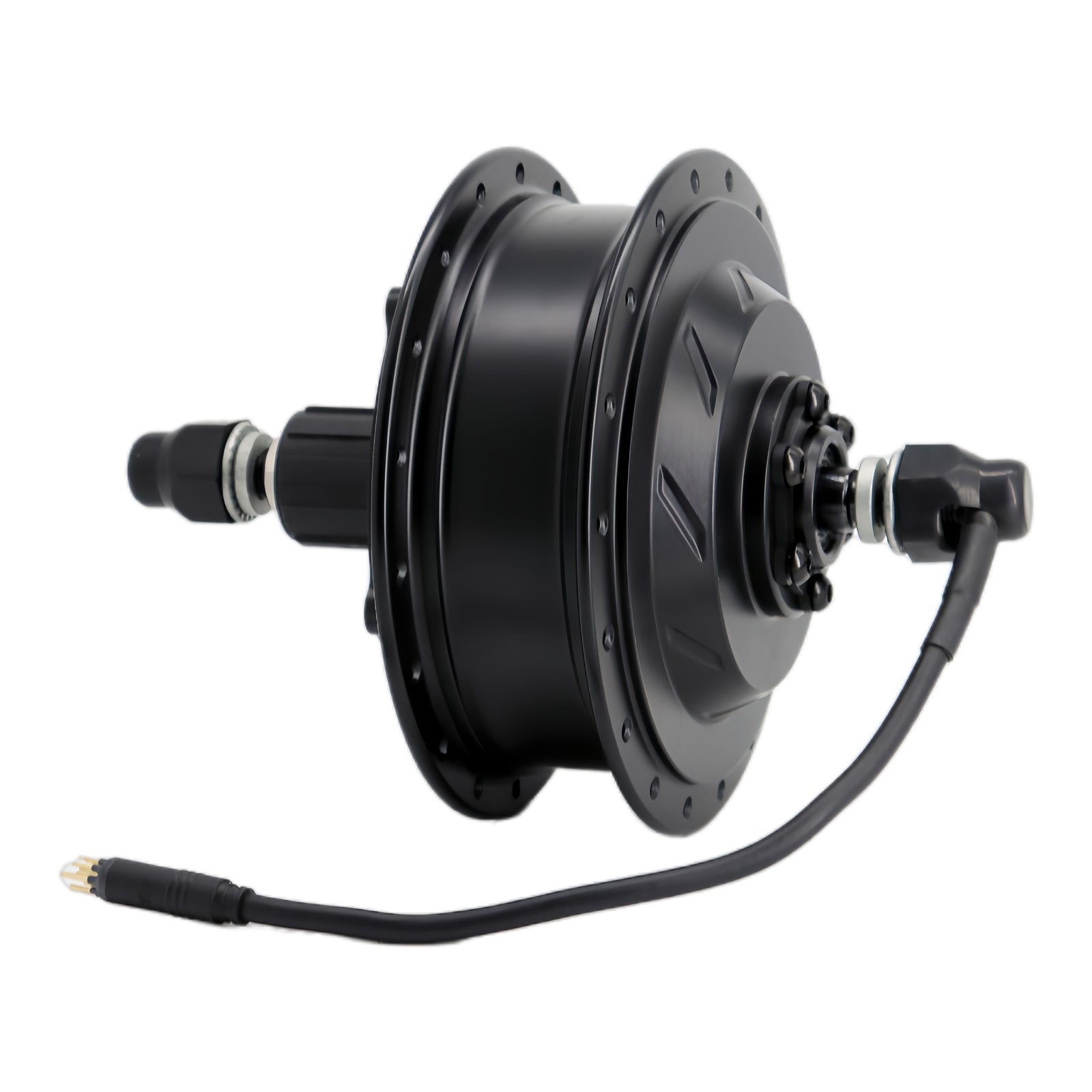

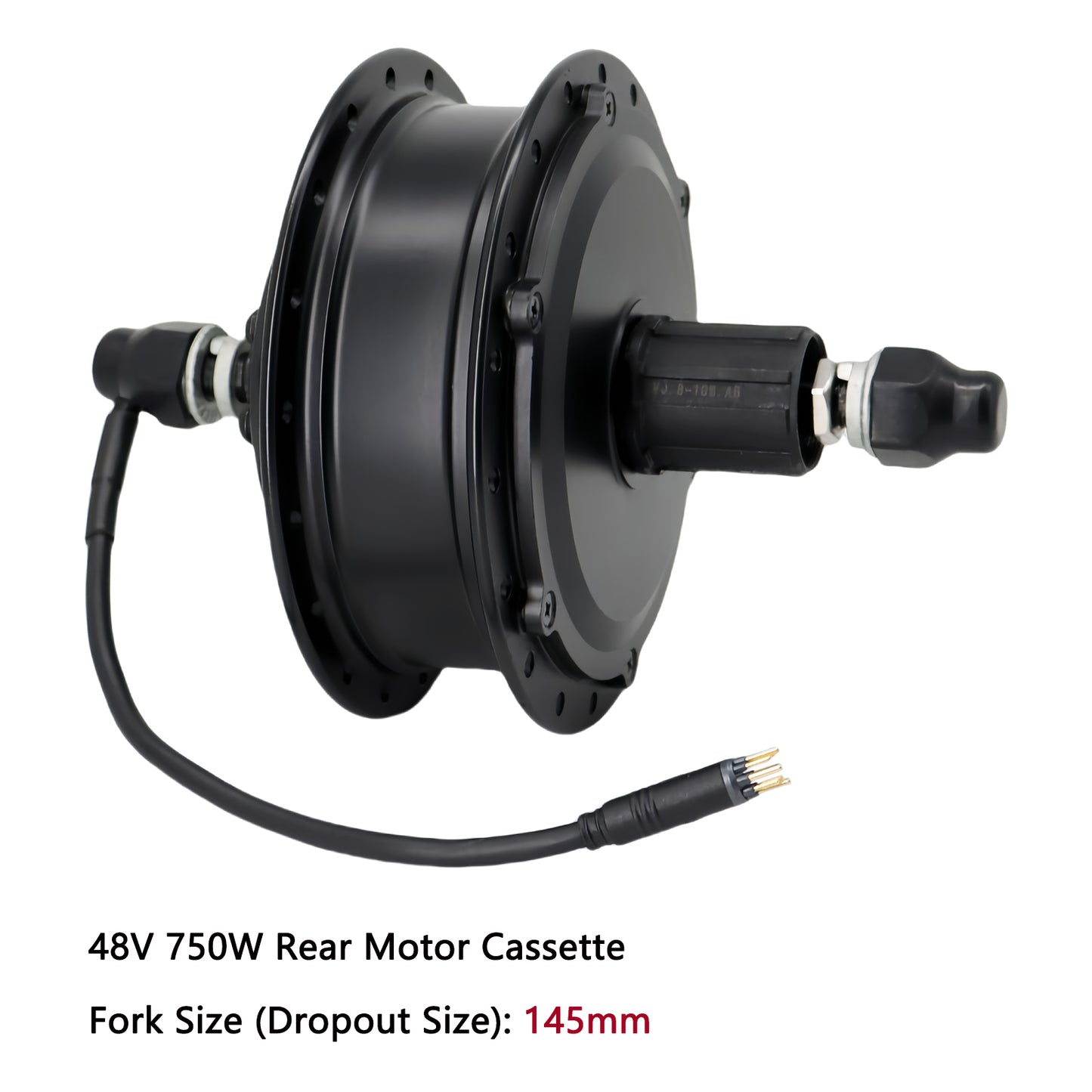

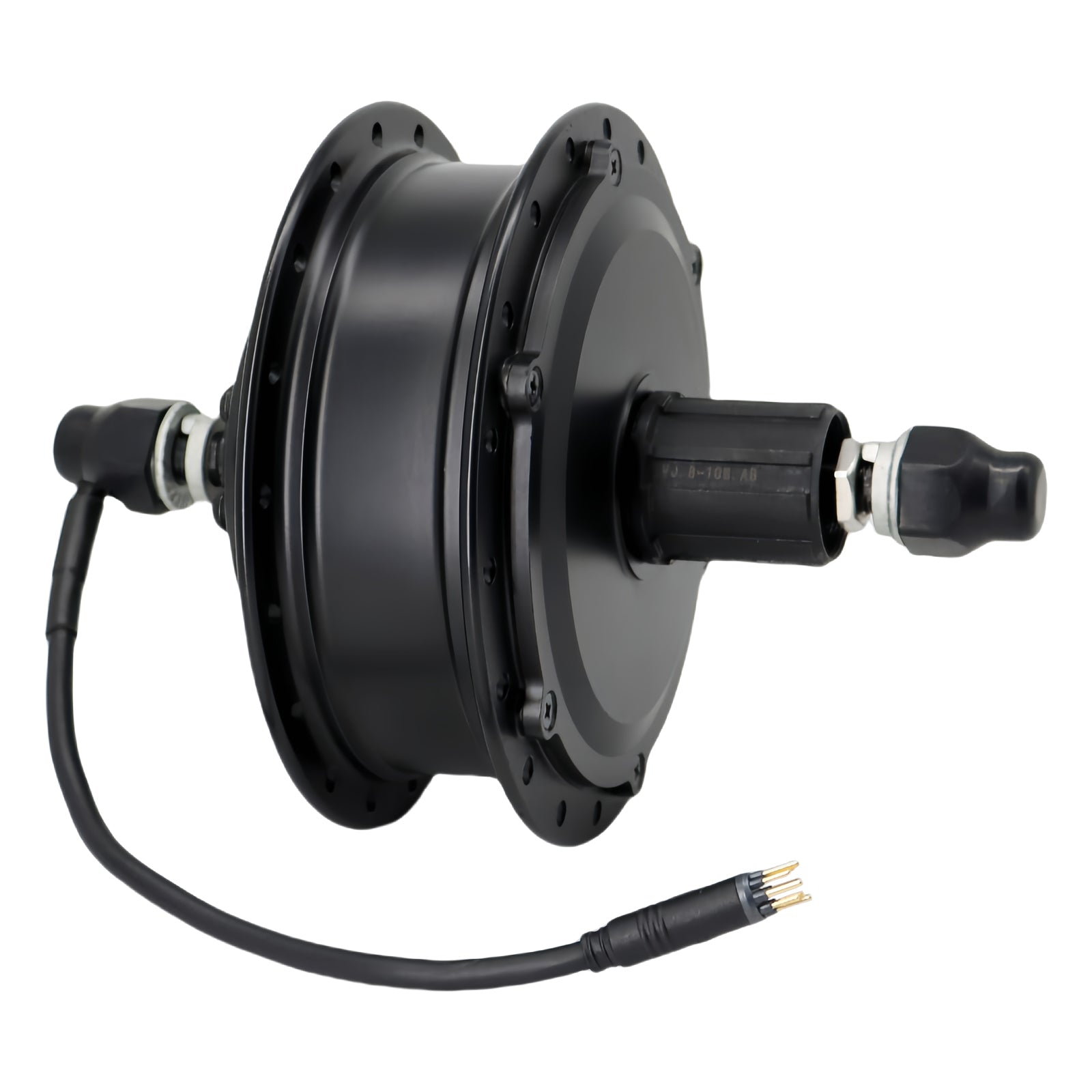

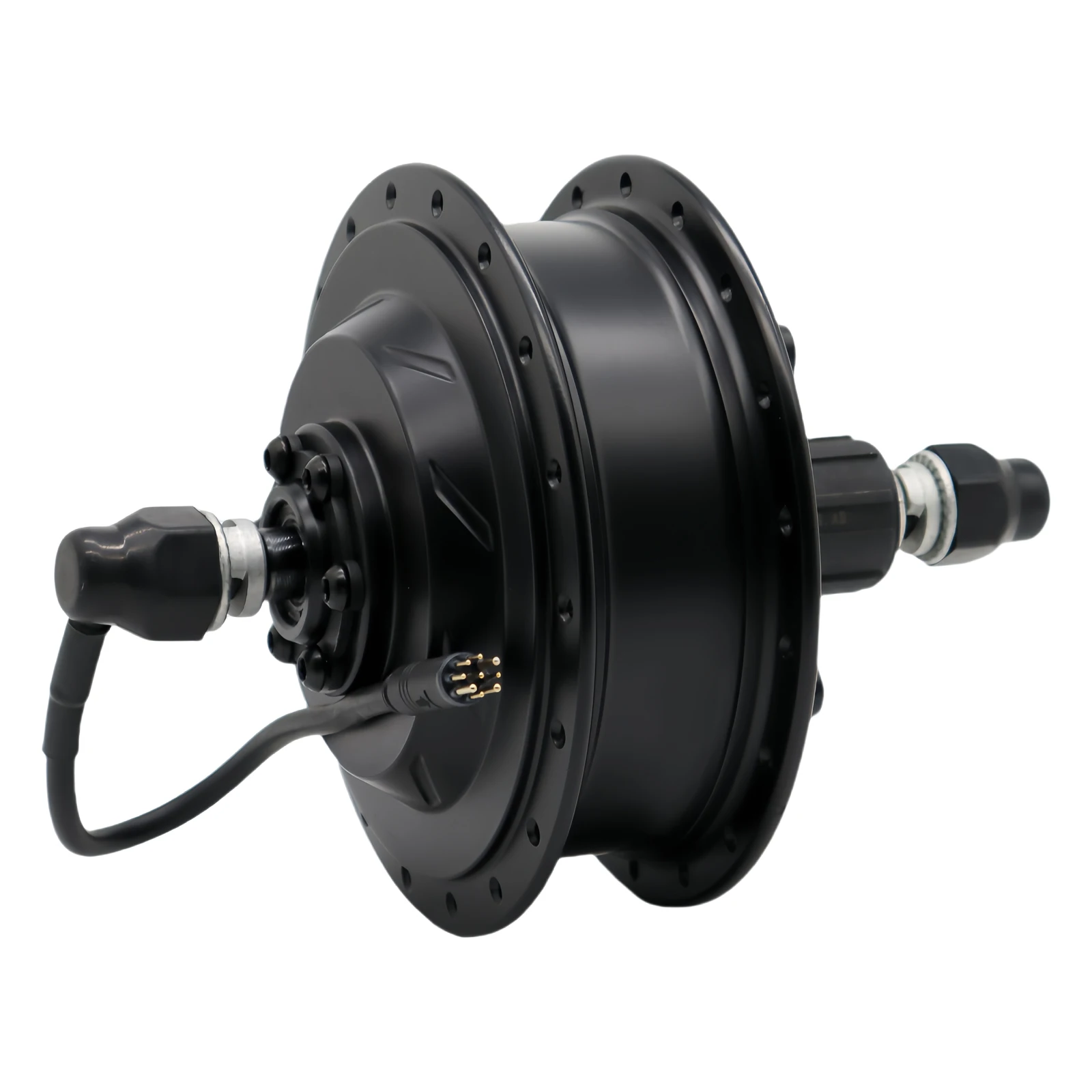

48V 750W Rear Cassette Motor
Position                                Rear
Construction                        Gear
Rated Voltage(V)                  48
Rated Power(W)                   750
Weight(Kg)                           3.7
Reduction Ratio                    1:5.2
Wheel Diameter(lnch)           20-29
Rated Speed(km/h)    48V 750W RPM 350
Magnet Poles(2P)                      10
Fork size (Dropout Size)         145mm
Freewheel         8s-11s cassette freewheel
Brake Type                      V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center left
Noise Grade(DB)                      ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector: hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications                      ROHS/CE
Spoke Specification           36H*13G
Cable Length(mm), Connection Type 250 G9.1

Torque                                68 N.m
