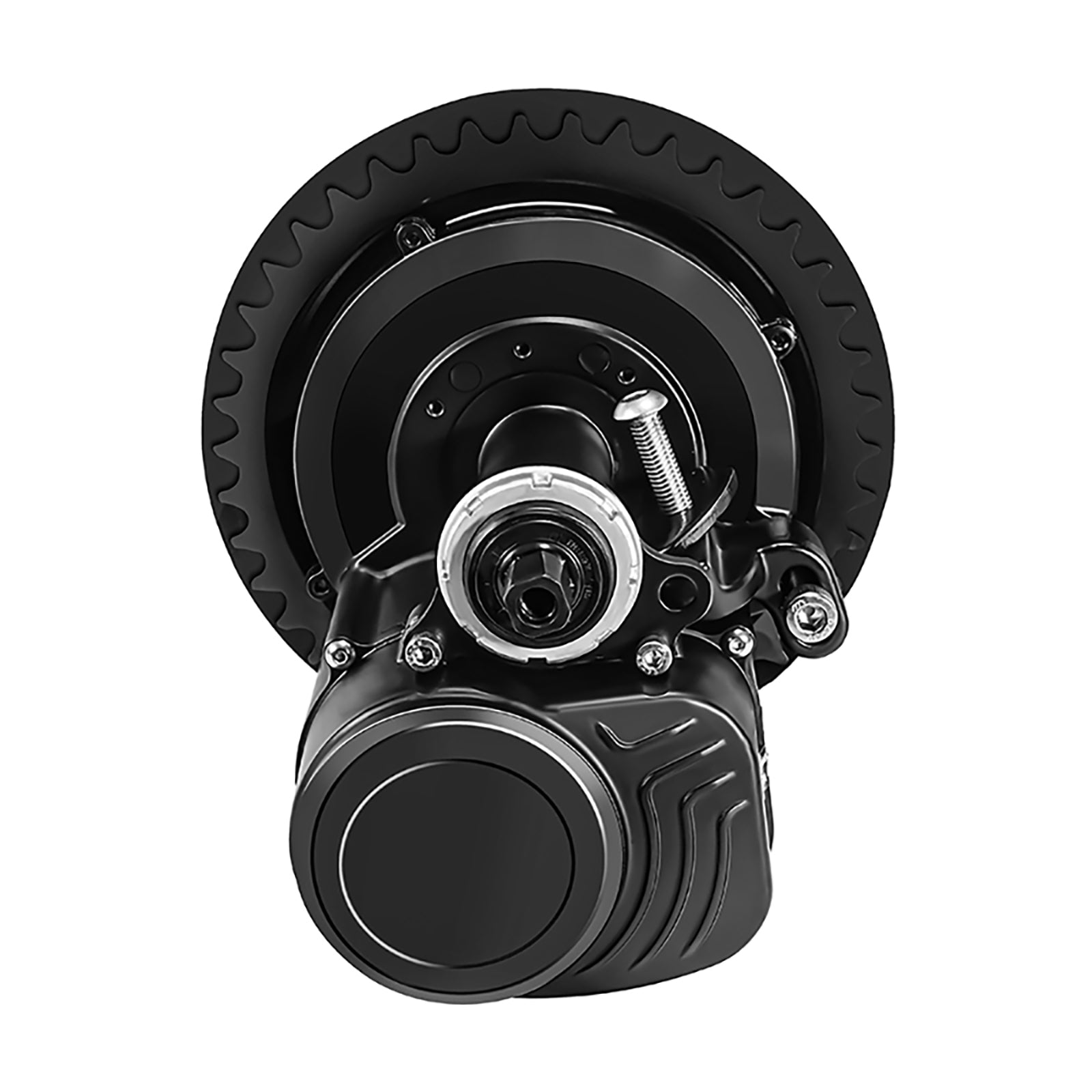

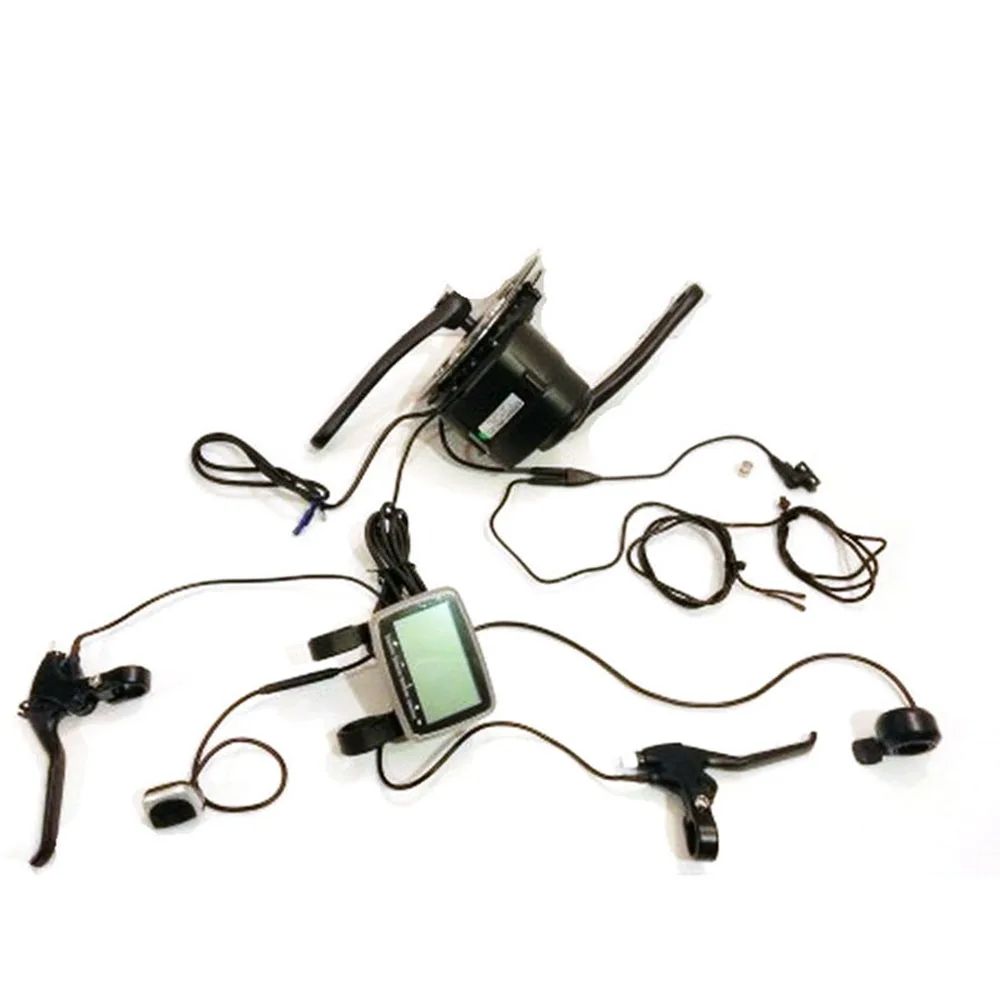

Bracket Bottom 120mm/100mm/68mm TONGSHENG TSDZ2B 36V-52V Mid Motor for DIY Fat Bike to Electric





Parameters

1. Related Voltage: 52V, 48V, 36V

2. Related Power: 500W, 350W

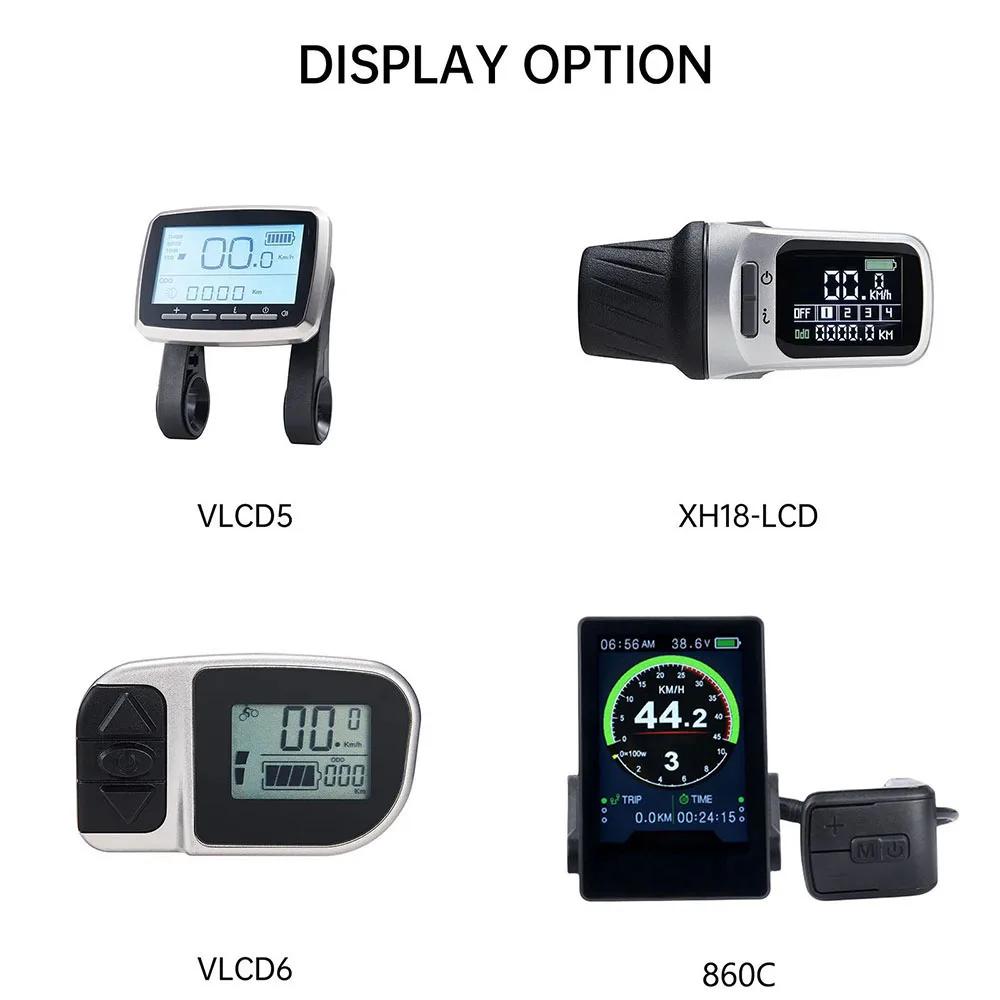

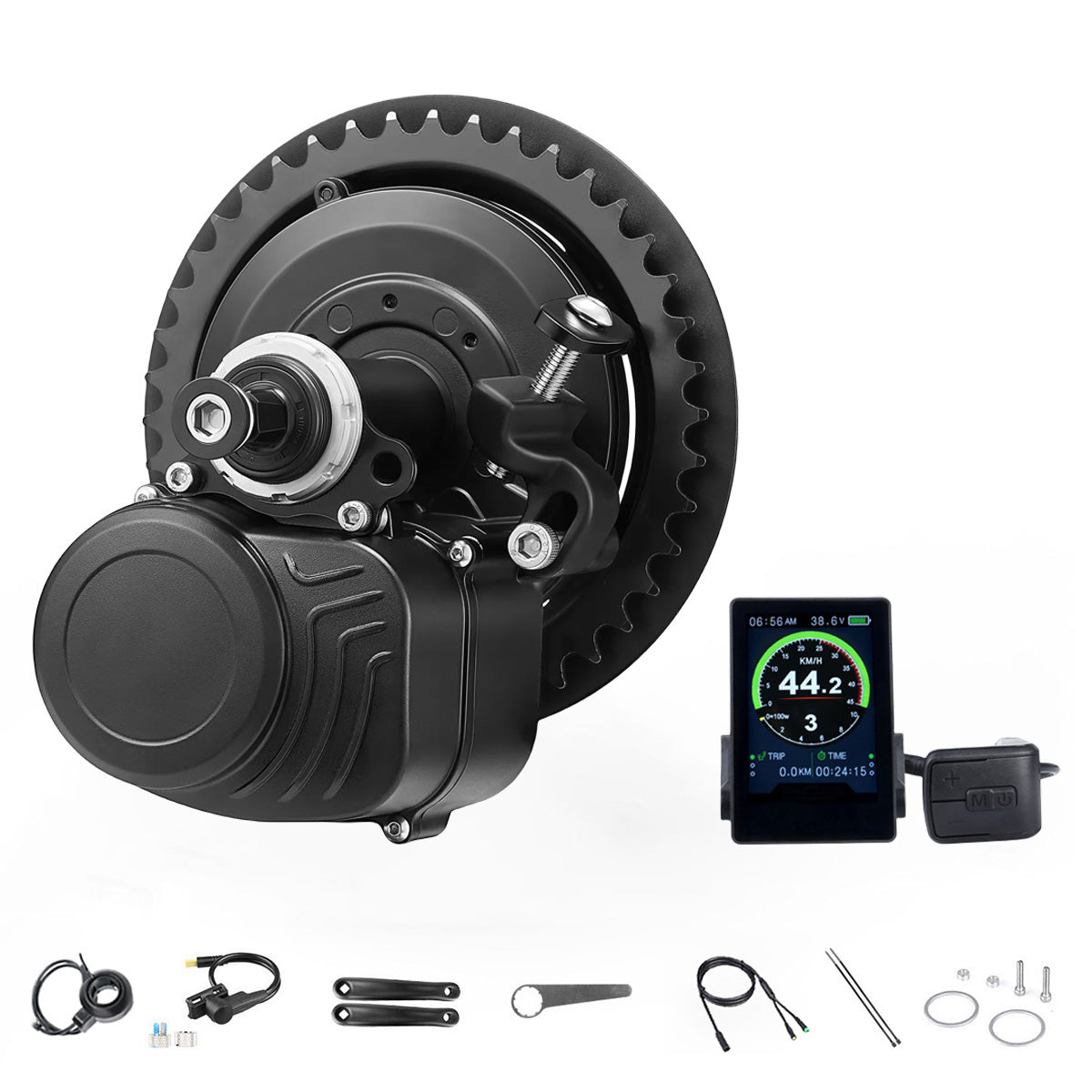

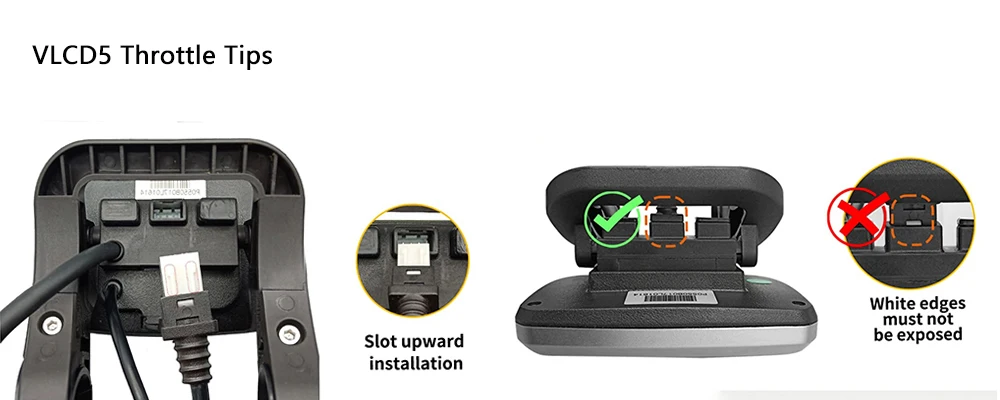

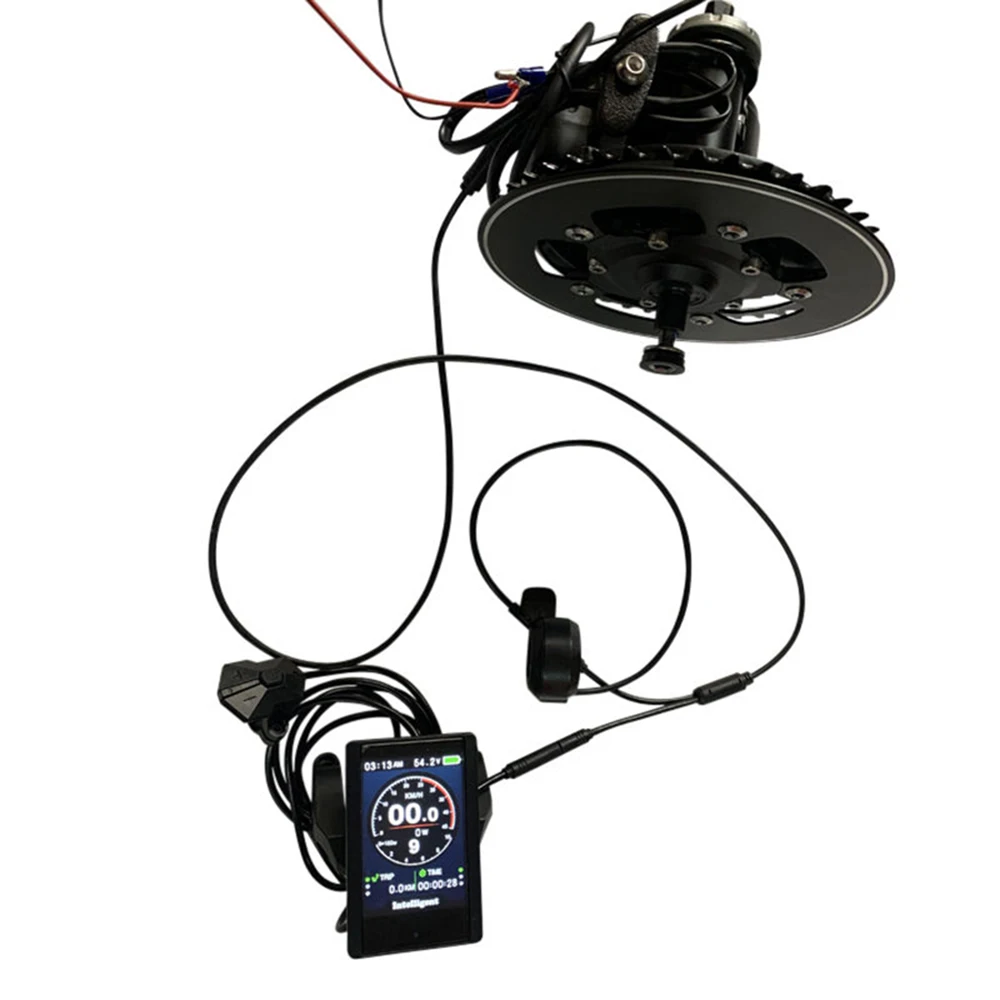

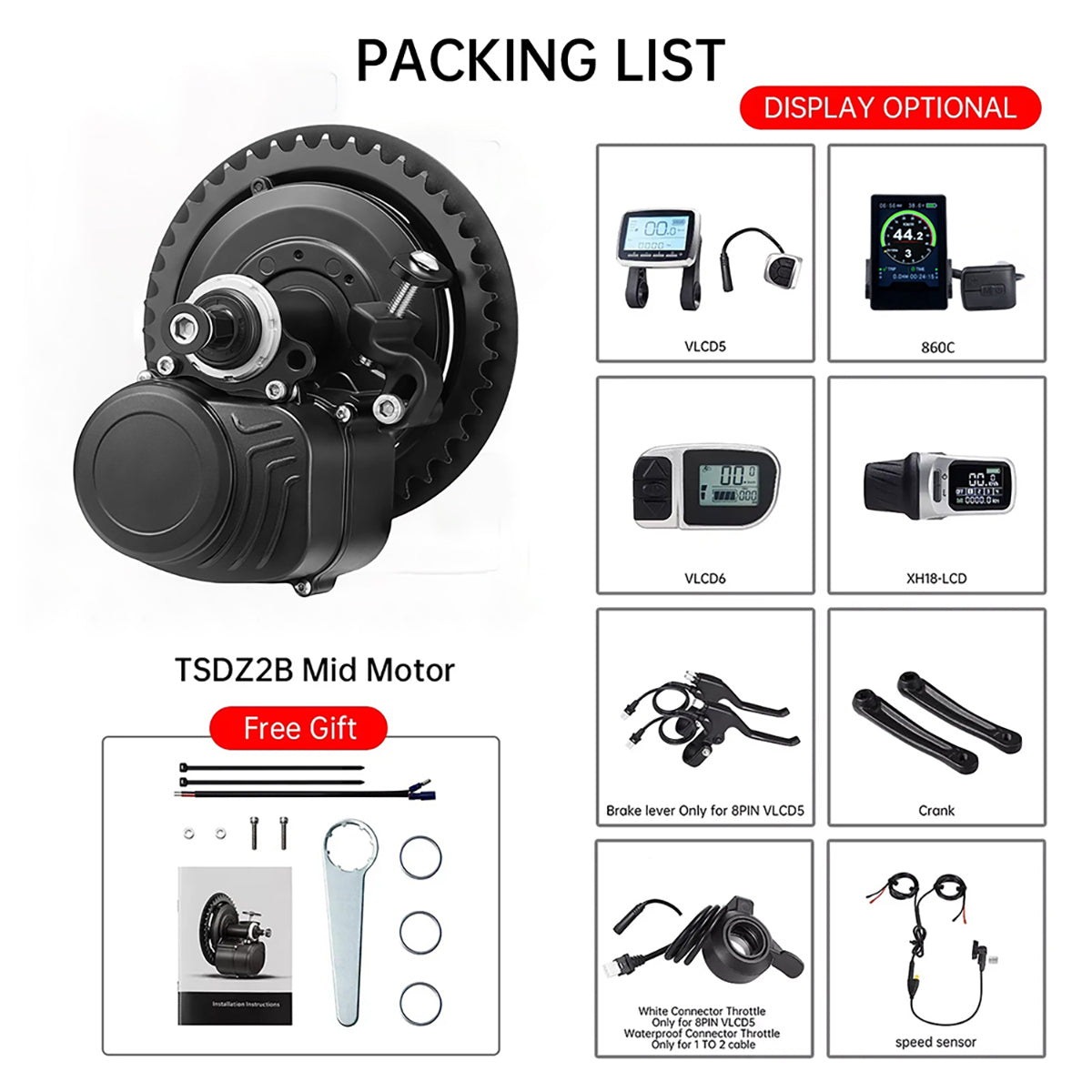

3. Monitor: VLCD5, VLCD6, XH-18, 860C for option

4. Maximum Torque: 80N.M

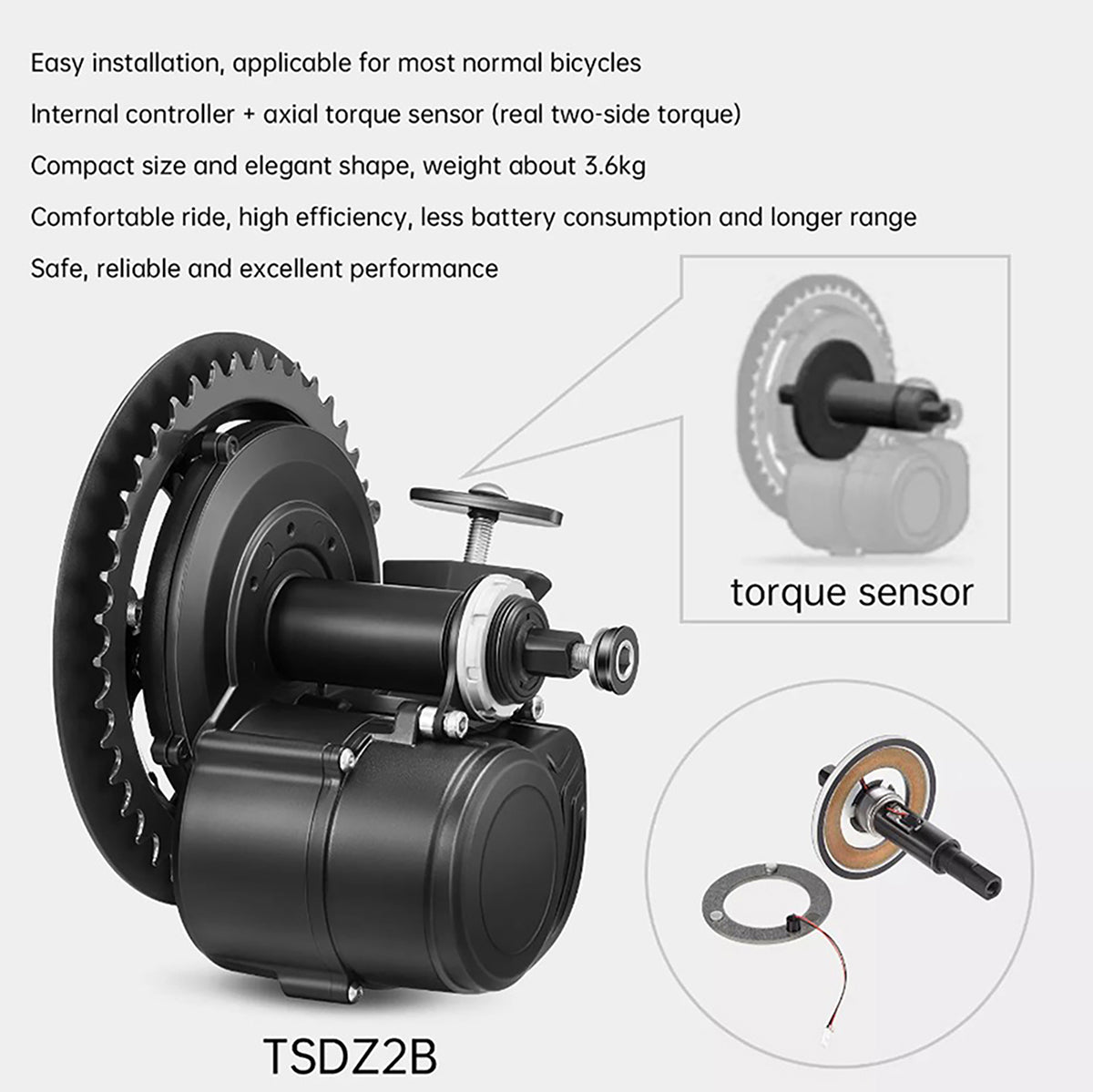

5. Built-in Controller and both side torque sensor

6. Motor Weight: 3.6kg, package Weight: 5.5kg

7. Speed: 25km/h (Limited), 30-40km/h (Unlimited)

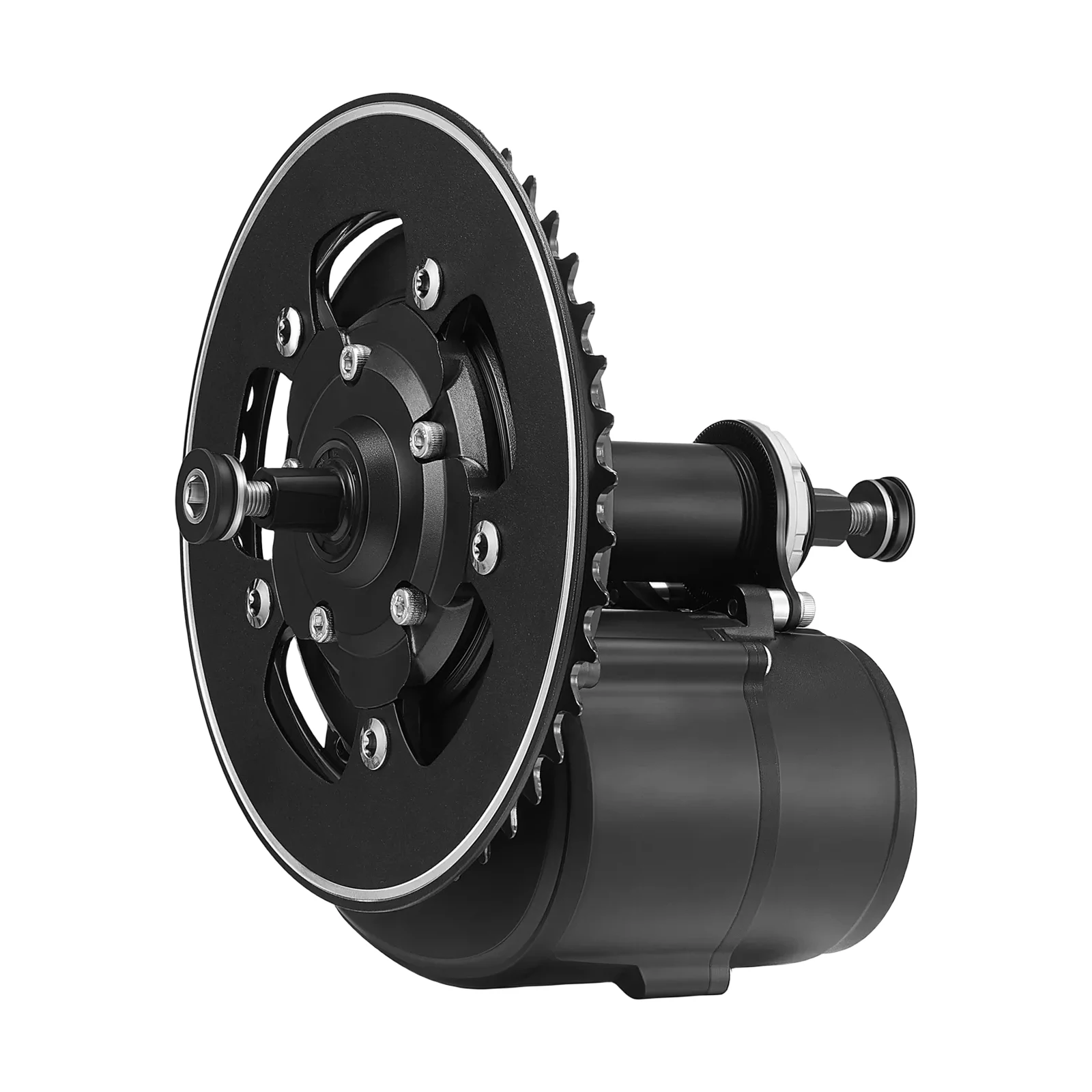

8. Chainwheel: 42T

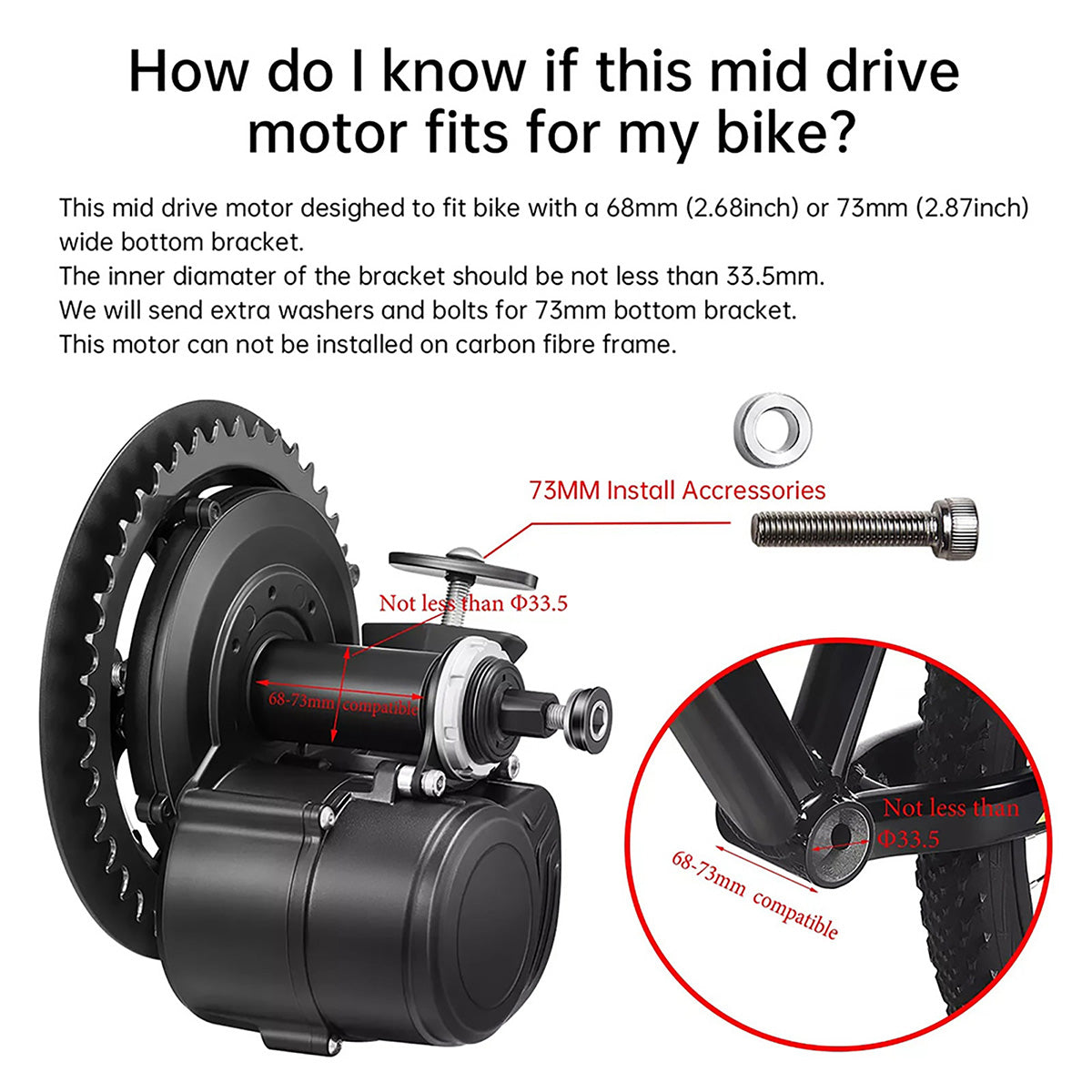

9. Bottom Bracket Length: 68/73mm, 100mm and 120mm for option

10. Current cutoff as long as pedaling stopped



Notice:

[Speed sensor]

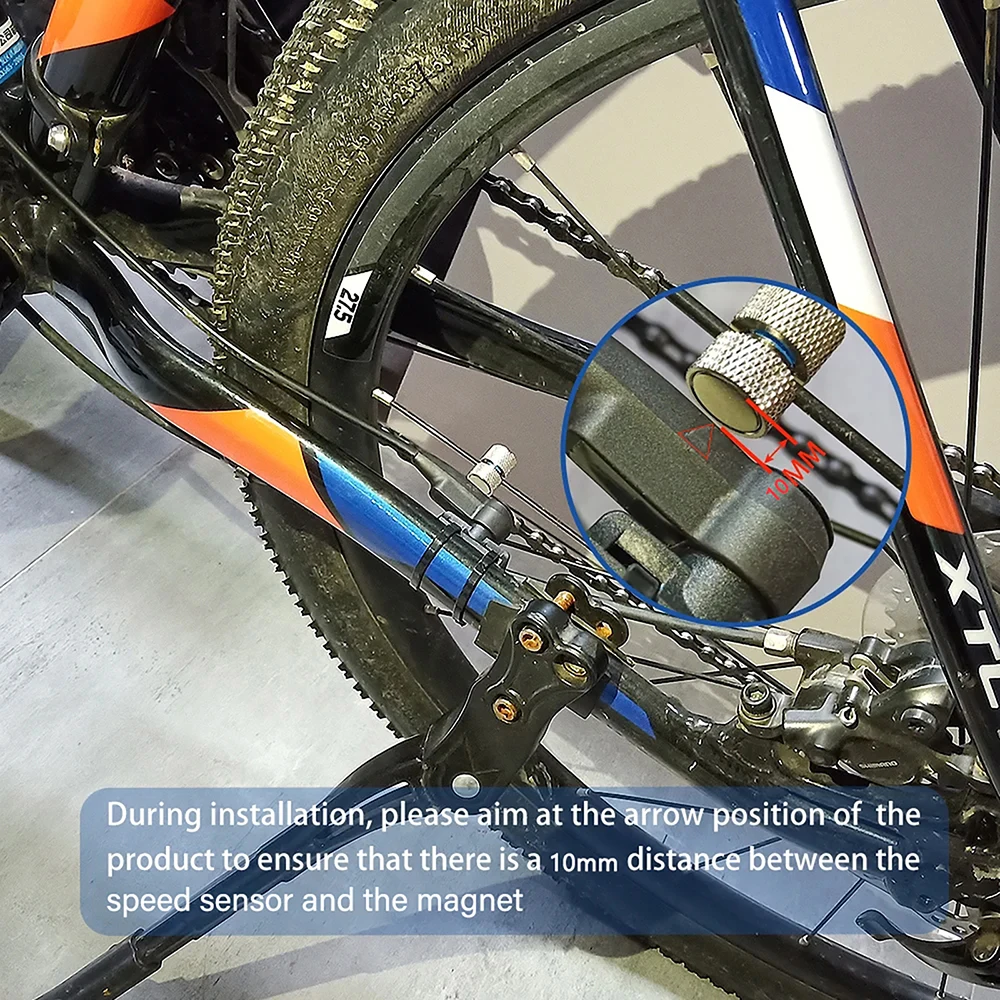

Tighten with cable tie, has to keep distance between 10mm to 15mm and the arrow on the speed sensor align at magnet, otherwise the torque assistance and the speed sensor will not work.

[After Installing]

1. Do not test it by hand since the motor does not work if the mid motor TSDZ2B is withthout load.

2. Do not touch the pedals by your foot before turning on the display.

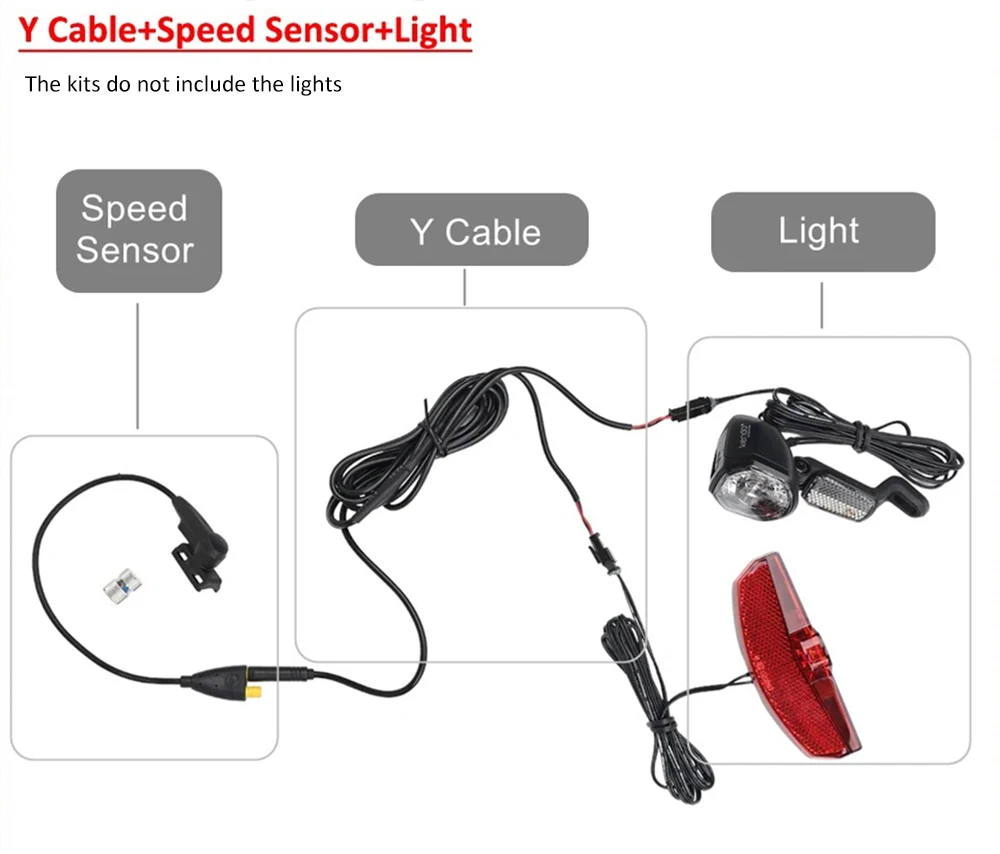

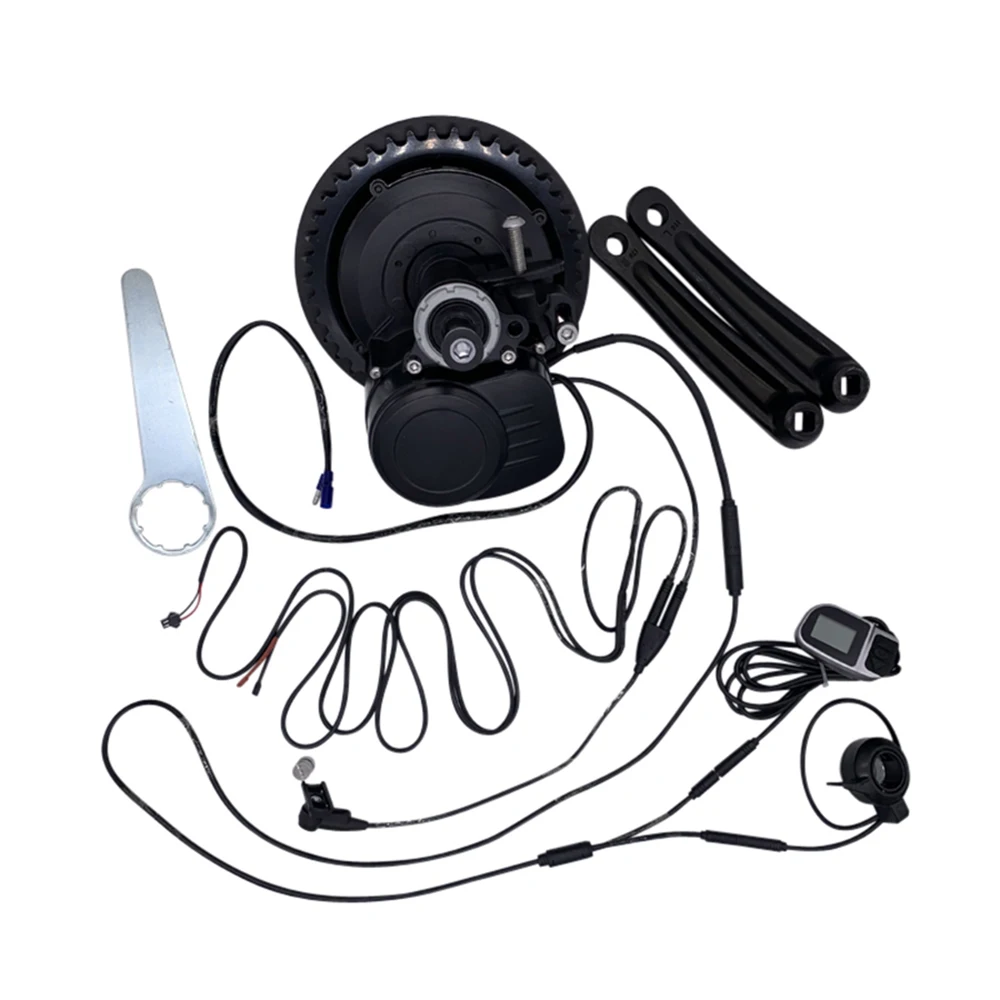

Dual socket speed sensor, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display supports up to 54.6V input voltage, this motor cannot works on 58.4V input voltage.

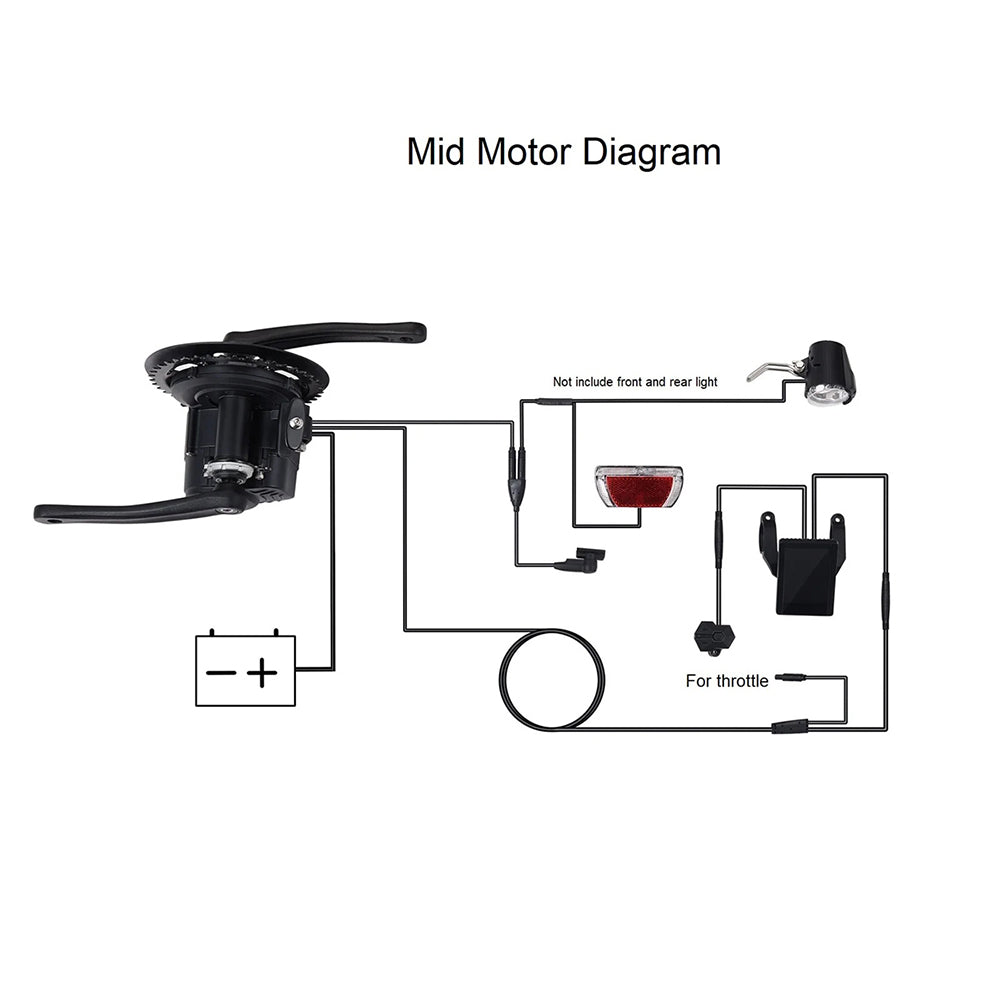

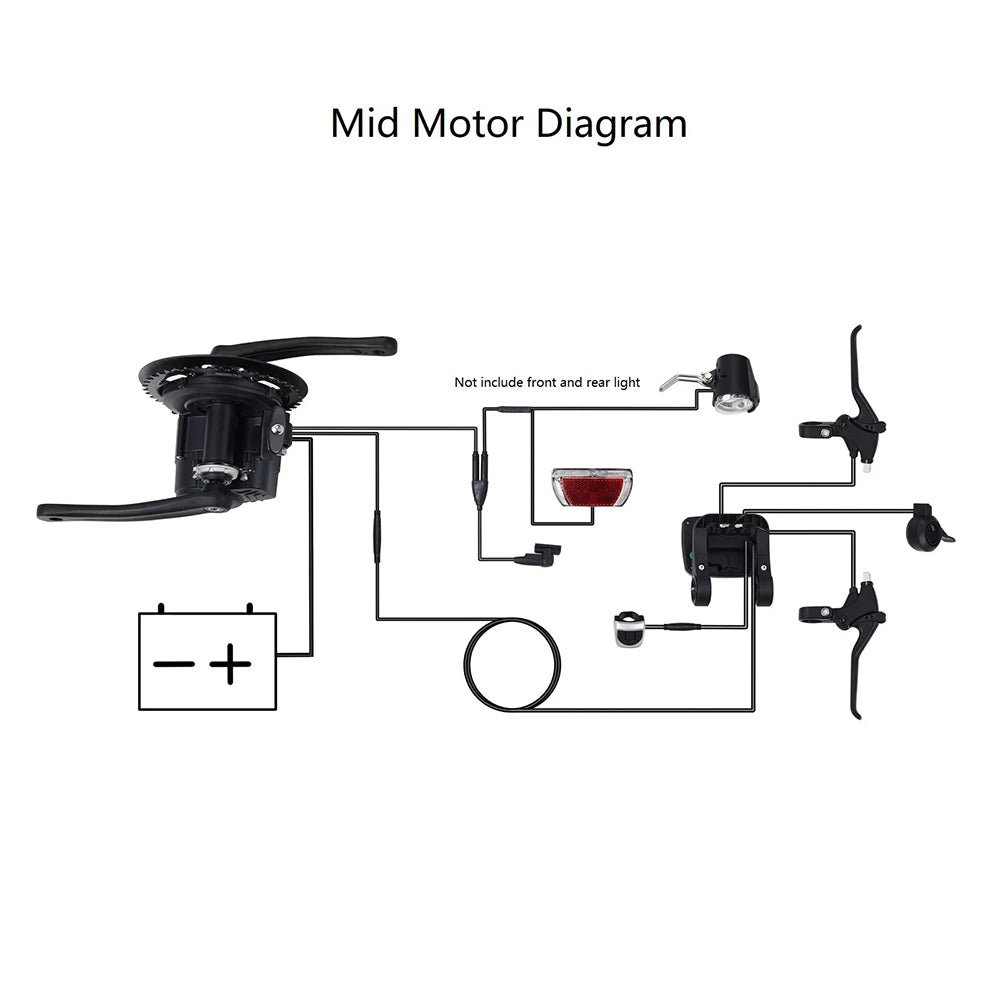

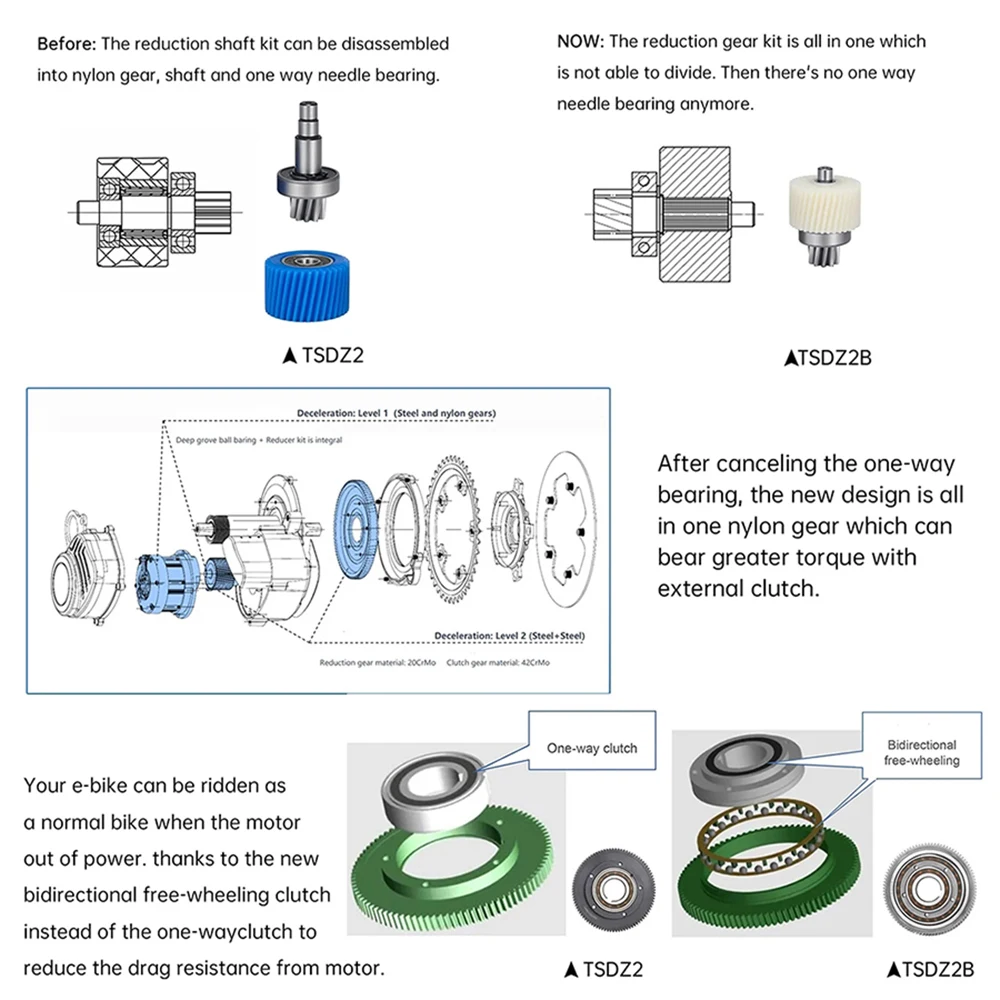

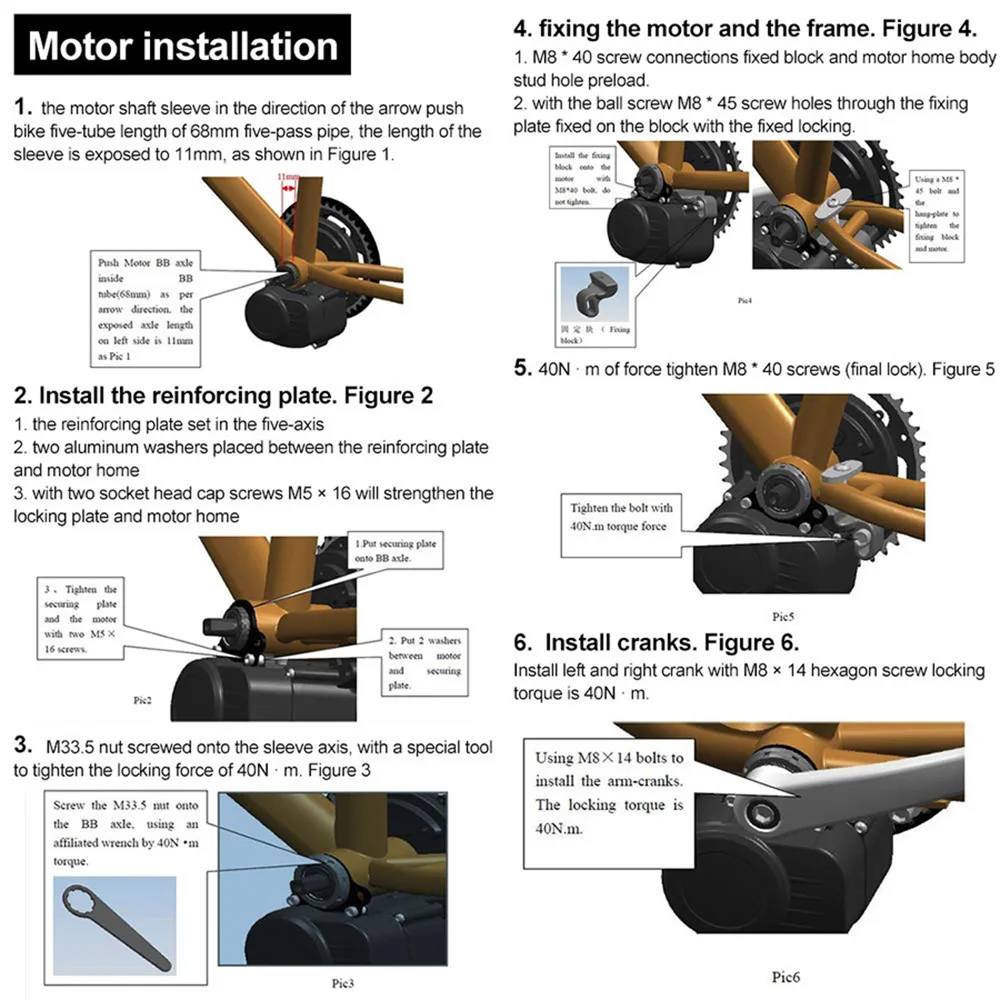

Motor Diagram

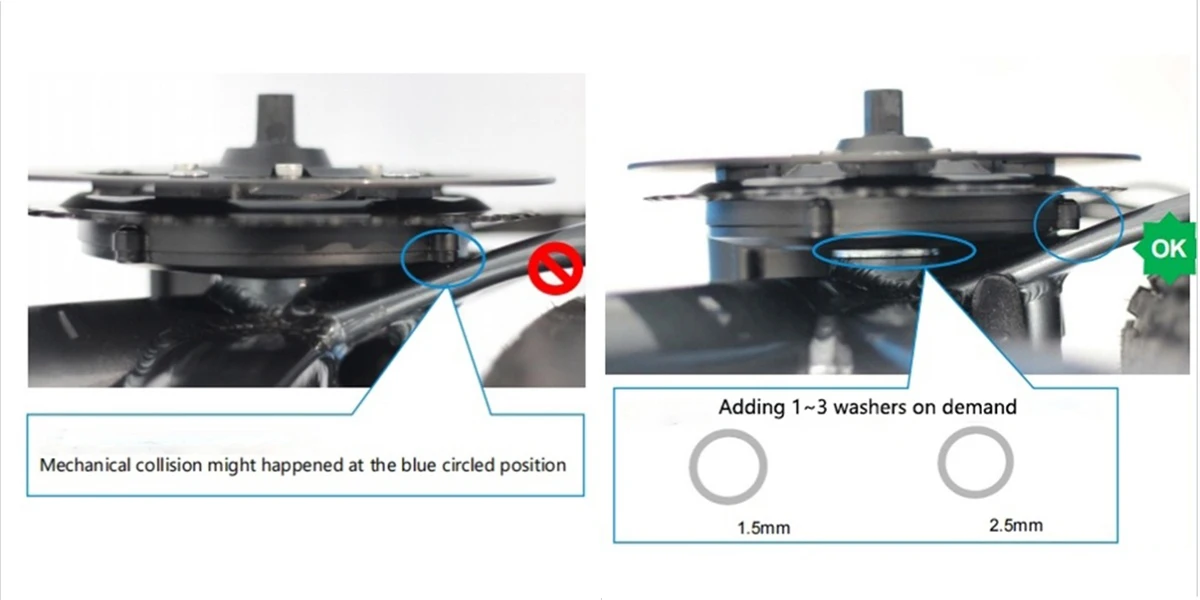

If mechanical collisions happened between motor and frame, add gaskets, we will send extra 1pcs 42*35*1.0 and 2 pcs 42*35*1.5 gaskets. If you do not add gaskets, it is easy crack the shell and destroy torque sensor.
