Electric Bike Lithium Battery 36V/48V/52V

Electric Bike Lithium Battery 36v/48v/52v



Feature:

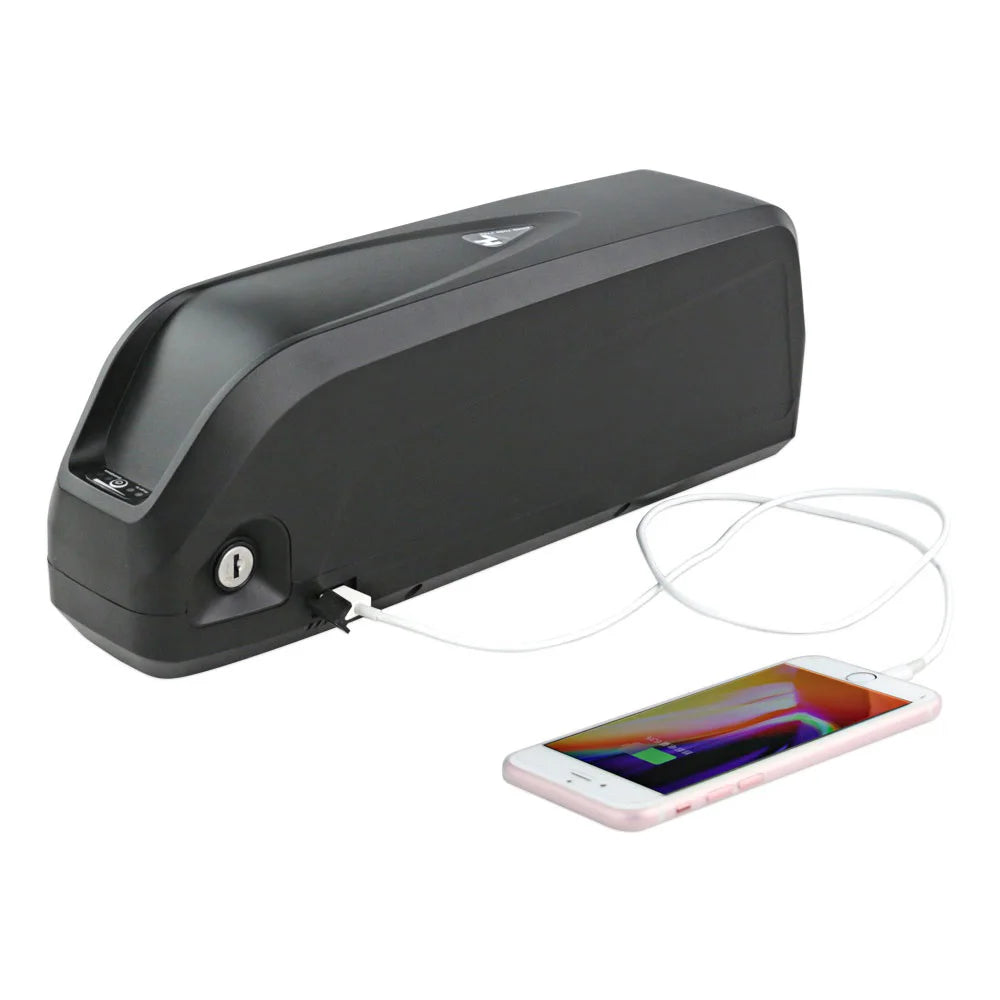

1. With USB port can charge Cell Phone and Bluetooth Speaker

2. New slim shark style Case Battery with power button

3. Convenient Charge Port support 4A faster charge

4. Waterproof and Solid plastic Case

5. Lighted battery LED power Indicator

6. Lock with Keys securely locks the mount on bike frame

7. Protection Function: Over charge, Over discharge, Over current, Short circuit, Balance


Specifactions of Battery:

36V 13Ah Electric Bike Battery

Nomal Volt: 36V

Rated Capacity: 13AH

Battery Cell: Built in 18650 cells

Array mode:10s6p

Fit Motor Power: 36V 350W 500W Engine

Max Constant Discharge Current:30A

Peak current: 60A

Charge voltage: 42V

Discharge cut off voltage: 28V

Way of Charge: CC/CV

Charge Temperature: -15-65℃

Discharge Temperature: -15-65℃

Cycle life: ≥80% capacity after 800 cycles

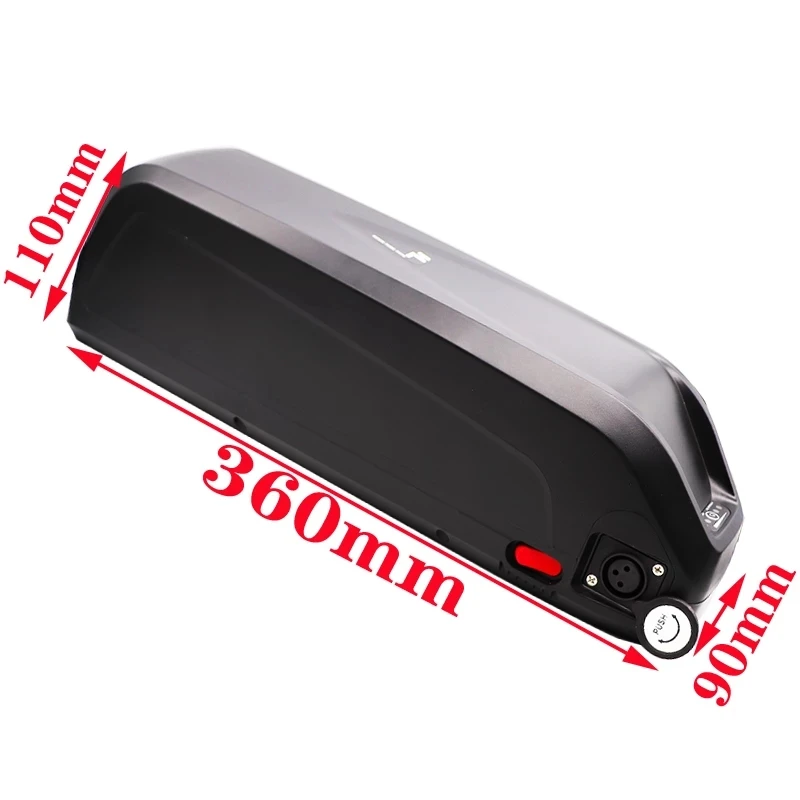

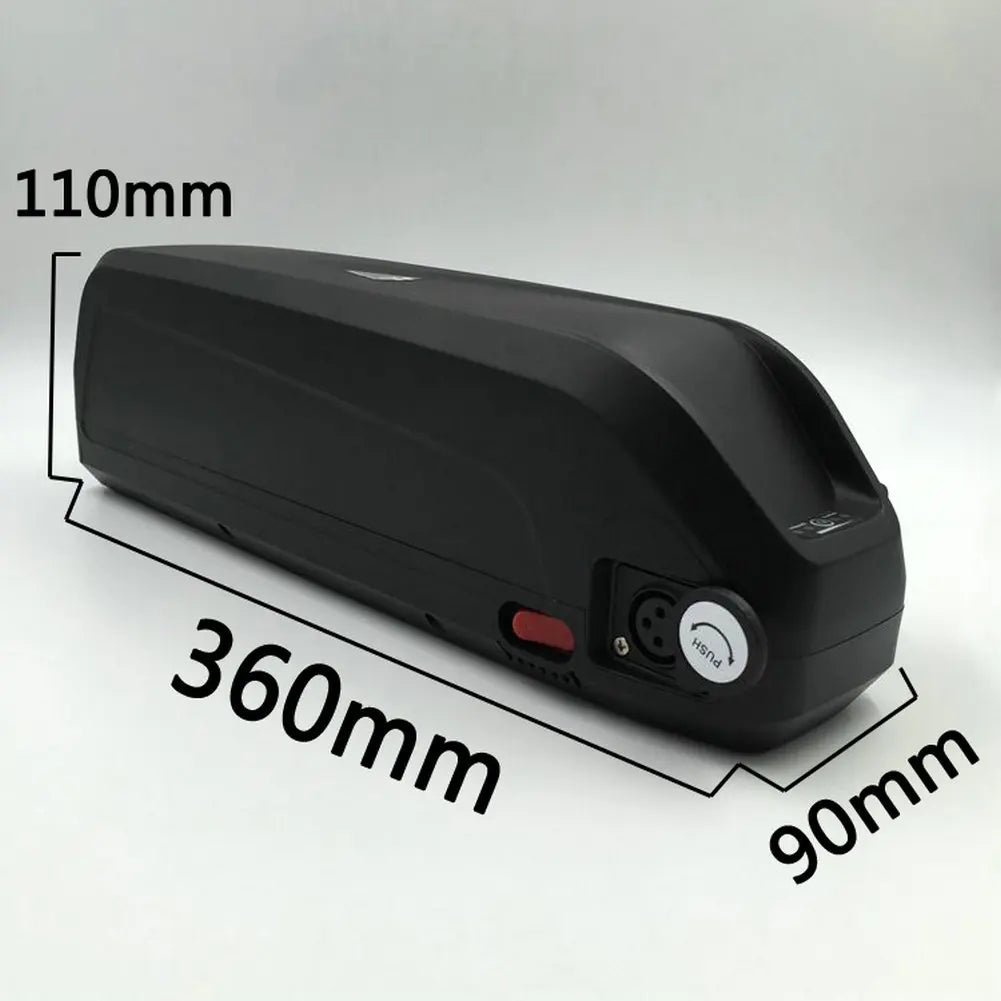

Dimensions: 90*110*360mm

Battery Weight: 4.1kg



48V 13AH Electric Bike Battery

Nominal Voltage: 48V

Nominal Capacity: 13Ah

Composed Type: 13 Series & 5 Paralles 13S5P

Battery Cells: Built in 18650 cells

BMS: 30 Amp continuous 7010Amp max

Fit Motor Power: 48V 350W 500W 750W Engine

Charge Current: 2-5A

Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V

Discharge Temperature: -20 to 65C ℃

Charge Temperature: 0 to 45 ℃

Cycle life: ≥80% capacity after 800 cycles

Dimensions: 90*110*360mm

Battery Weight: 4.5kg

52V 14A Electric Bike Battery

Nominal Voltage: 52V

Nominal Capacity: 14Ah

Composed Type: 14Series 4Paralles  14S4P

Battery Cells: Built in 18650 Cells

BMS: 30 Amp

Fit Motor Power: 52V 750W 1000W engine

Charge Current: 2-5A

Charge Cut-off Voltage: 58.8V

Discharge Cut-off Voltage: 42V

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

Cycle life: ≥80% capacity after 800 cycles

Dimensions: 90*110*360mm

Battery Weight: 4.25kg

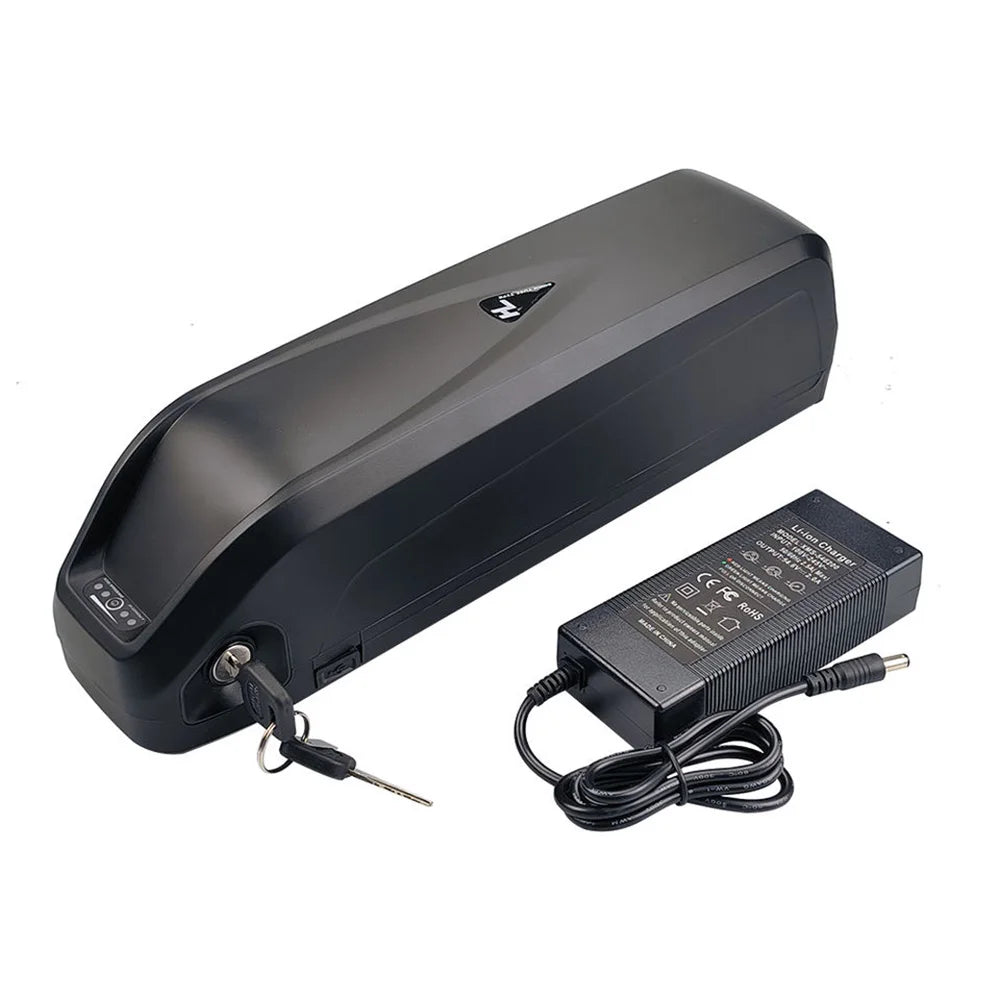

90W~120W Lithium Ion Charger:

Input Voltage: 100-240V

Output Voltage: 42V/54.6V/58.8V

Output Current: 2A

Charging Mode: CC-CV

Intelligent Charger
