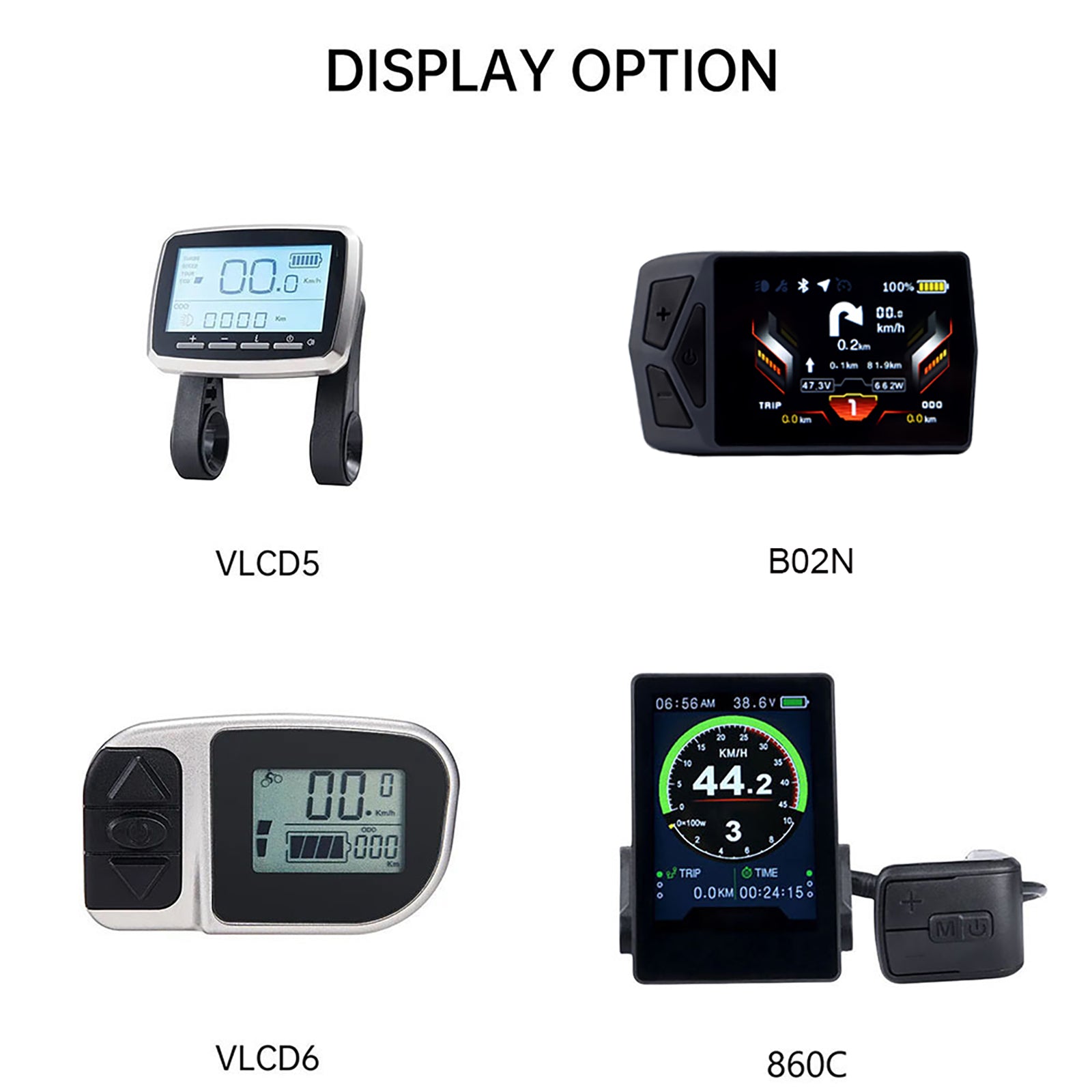

TONGSHENG TSDZ2/TSDZ2B LCD Display - 860C/B02N/VLCD5/VLCD6





PS:

if you buy wrong display, we can't accept return parcel

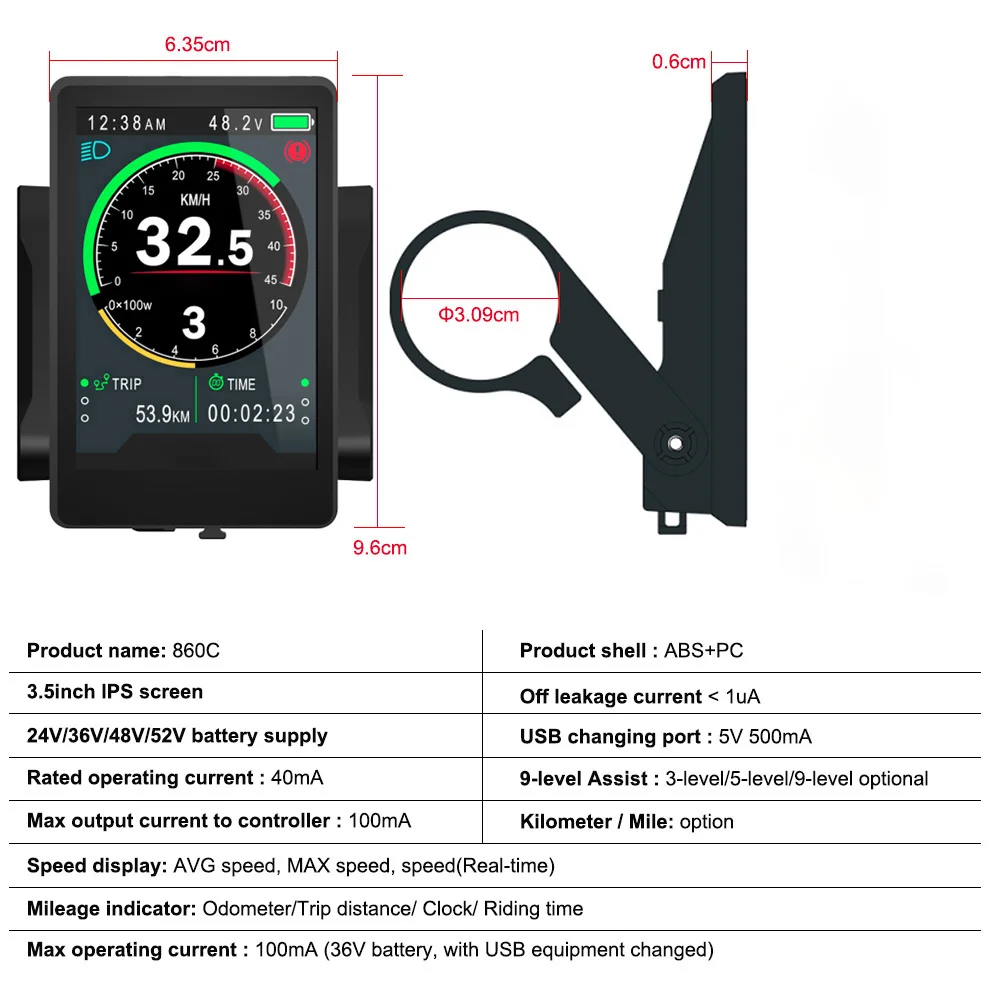

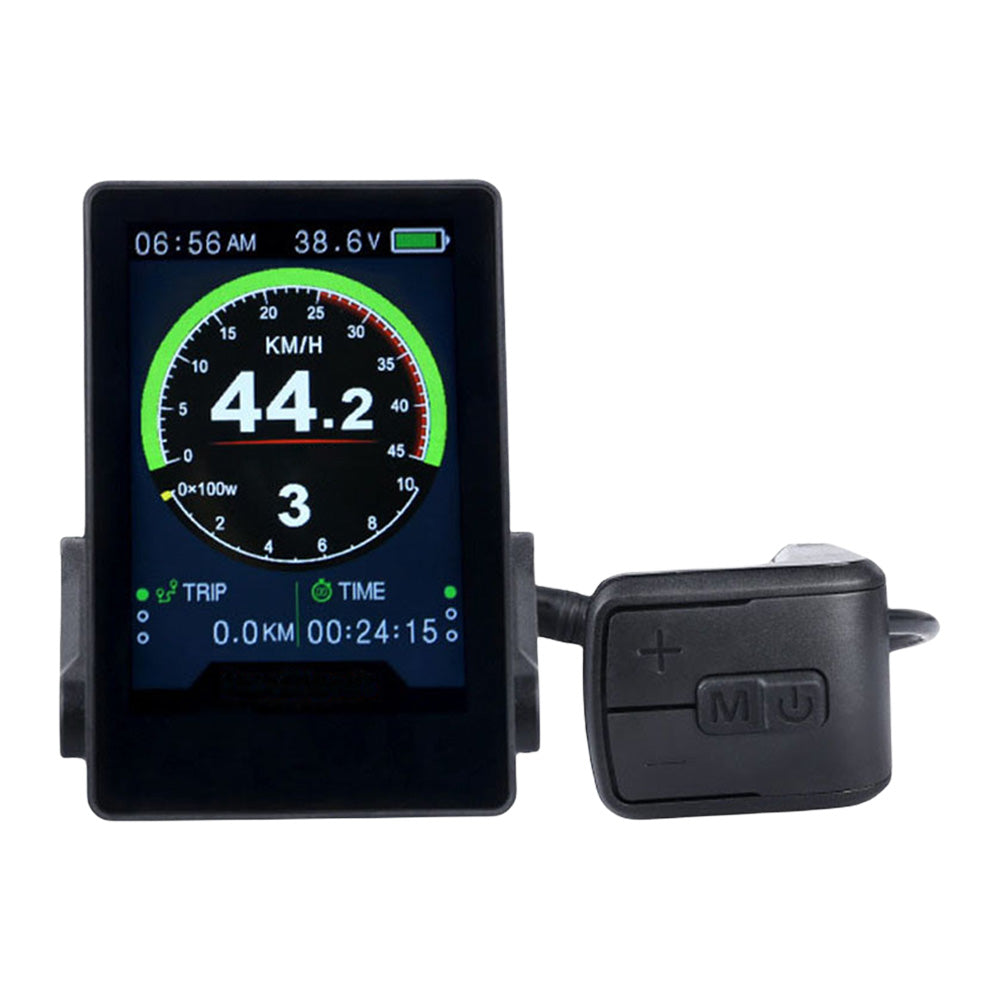

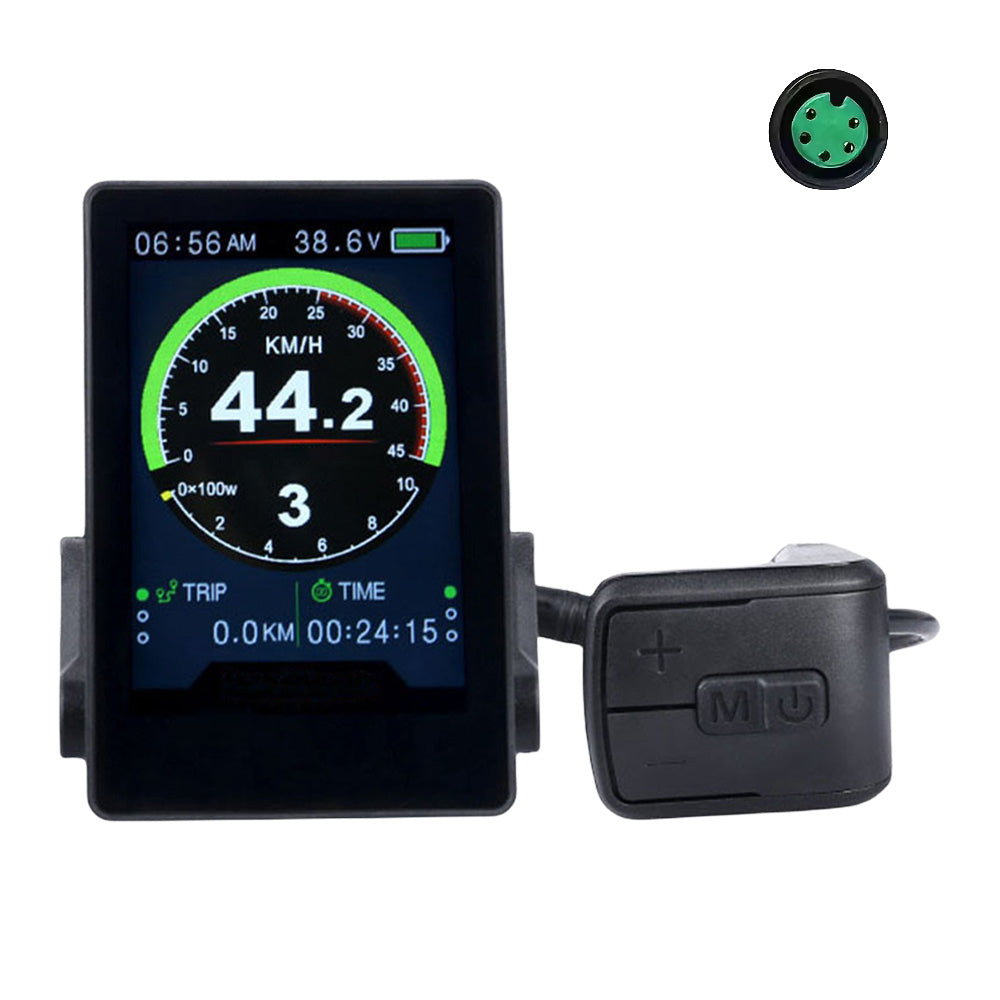

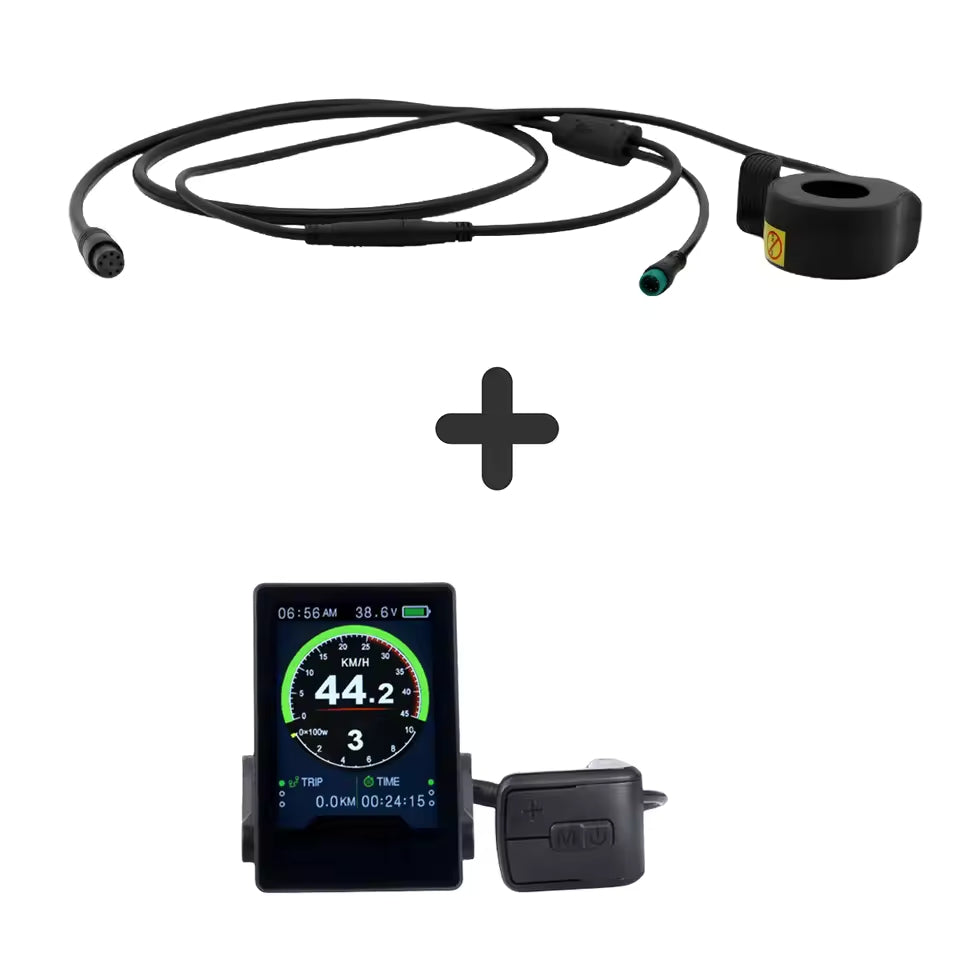

860C Color Display

Specification:

Core Data: Display
Type: LCD

Rated Voltage(DCV): 24/36/48/52V

Support Modes: 0-9

Speed Limited: 99KM/H (Can not be controed by display to limte the speed, it depend on motor controller.)

Operating Temperature: -20 - 70℃

Com. Protocol: UART

Mounting Paramenters

Dimensions(mm): 96.6*71.6*6.1(3.8*2.8*0.1 inch)

Holder(mm): Φ22.2/25.4/31.8

Further Specifications

Bluetooth:  NO

Com. Protocol: UART

USB Charge Port : 5V 500mA

IP: IP65 waterproof

Package Includes:

1x860C  display

Notice:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.

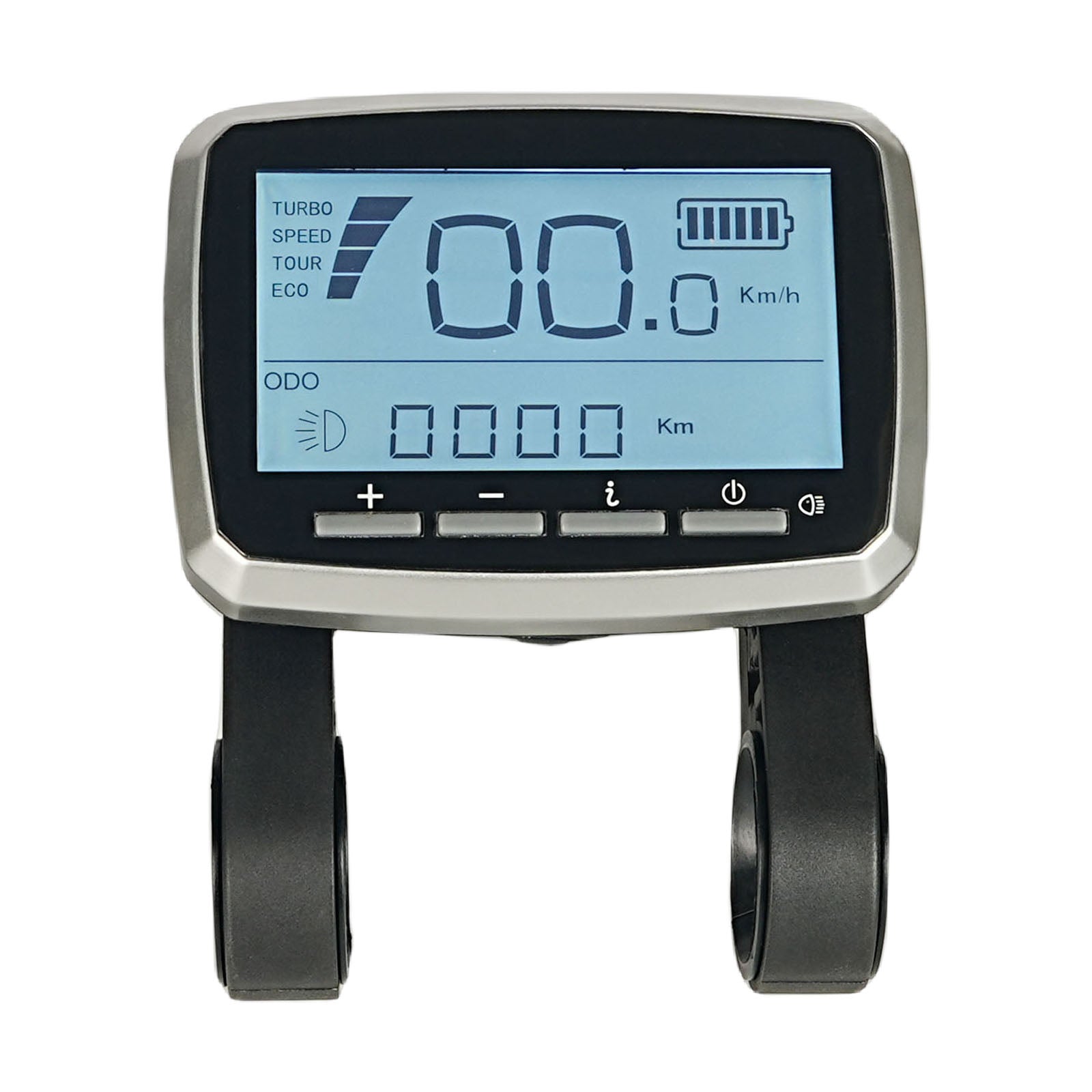

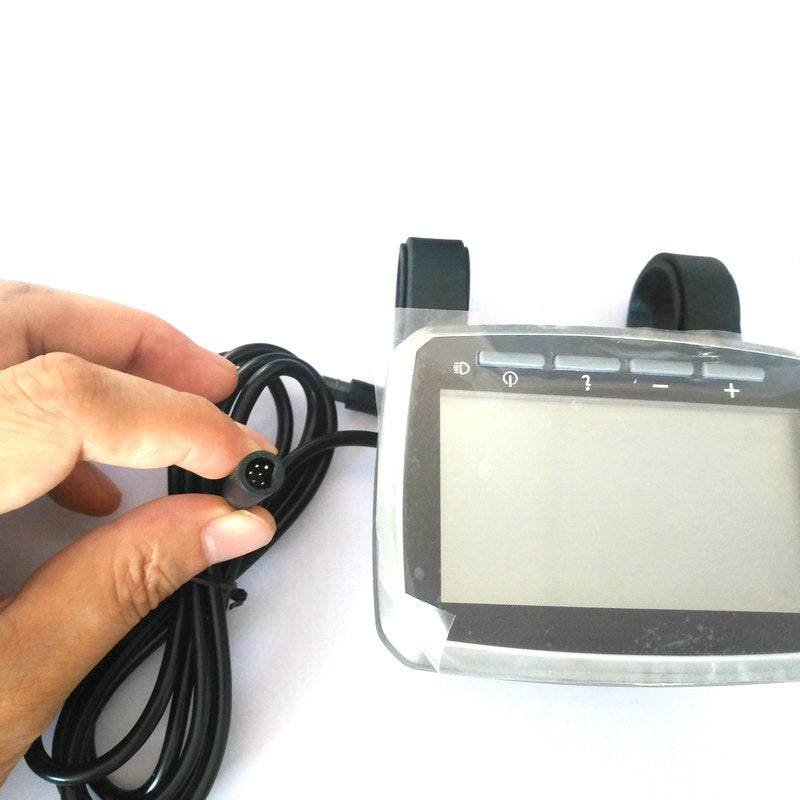

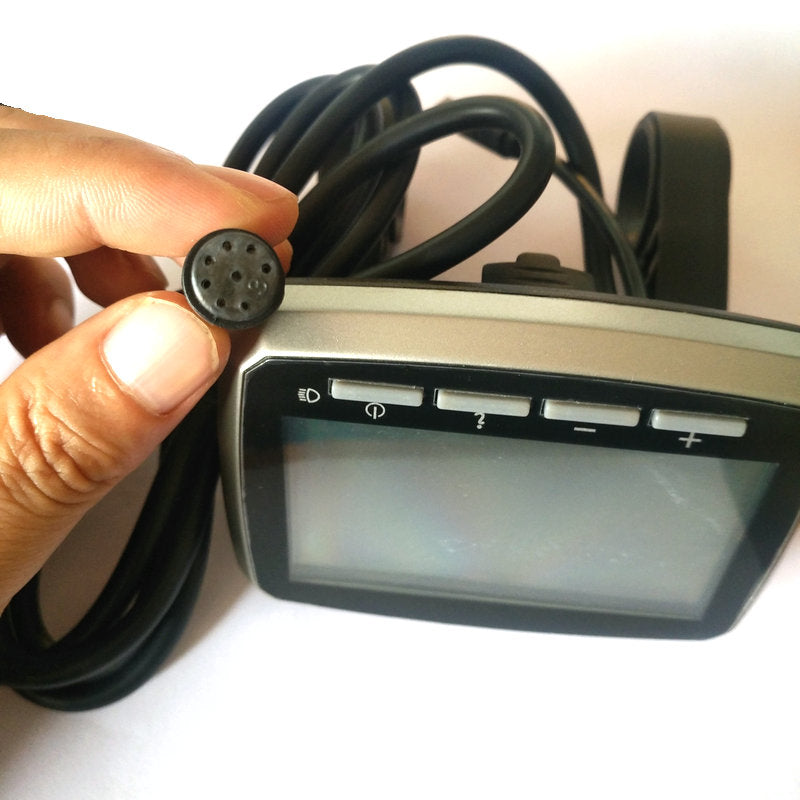

VLCD5 (HTN-LCD Grey)

Mounting Parameters

SizeL*W*H                 102.7*75.8*40.5mm

Holder                        φ22.2

Communication          UART/ CAN

Core Data

Display Type              HTN-LCD Grey

Voltage                       20-60V

Function

RT Speed(Km/h):                       √

Max Speed(Km/h):                     √

AVG Speed(Km/h):                     √

Single Trip Duration:                   -

Single Trip Distance:                  √

Reset Single Trip Duration:         -

Reset Single Trip Distance:         √

Total Distance:                            √

Intelligent Power Display:            √

Ride Mode:                                  √

Error Code:             √

Walk Assistance:     √

Headlight:                √

Bluetooth:                -
USB Charge:          √

IP Level:        IP65

Certificate:    EN15194:2017/ CE/ RoHS

Packing list:

1pcs VLCD5 display don't include the controller of LCD.

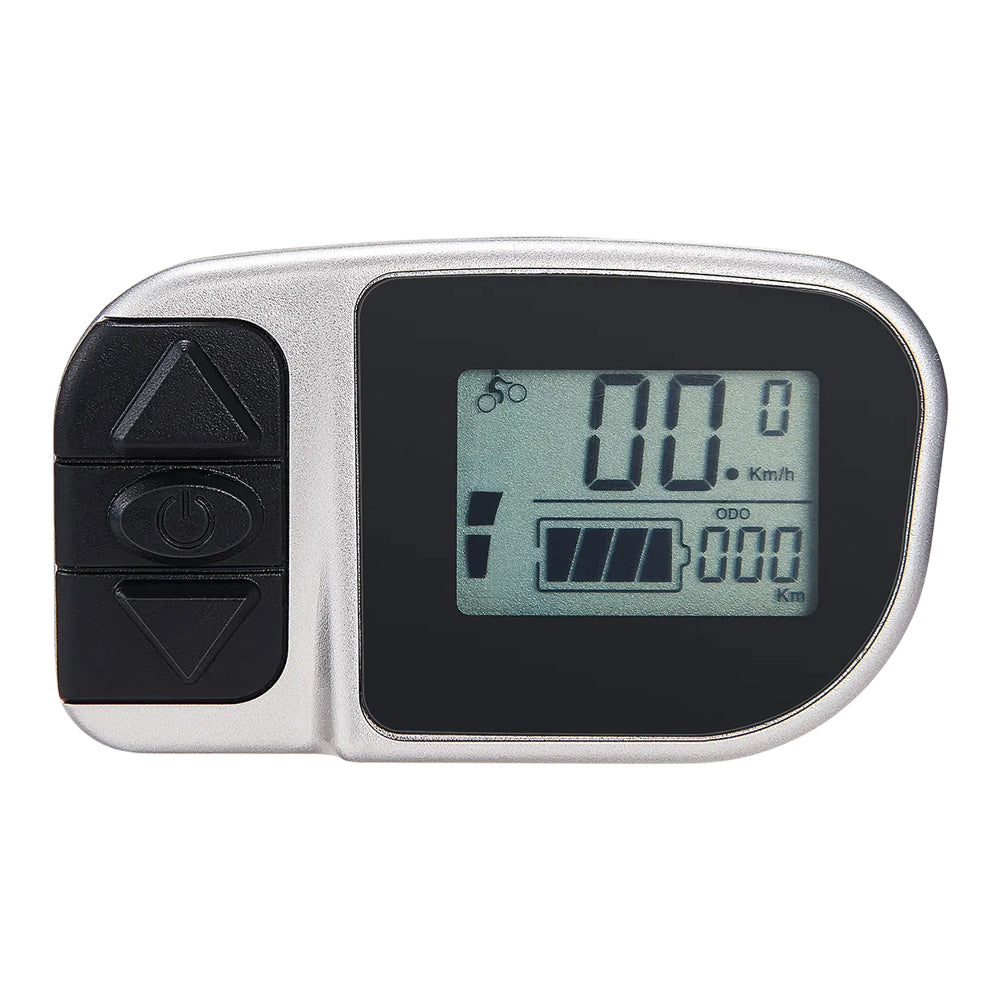

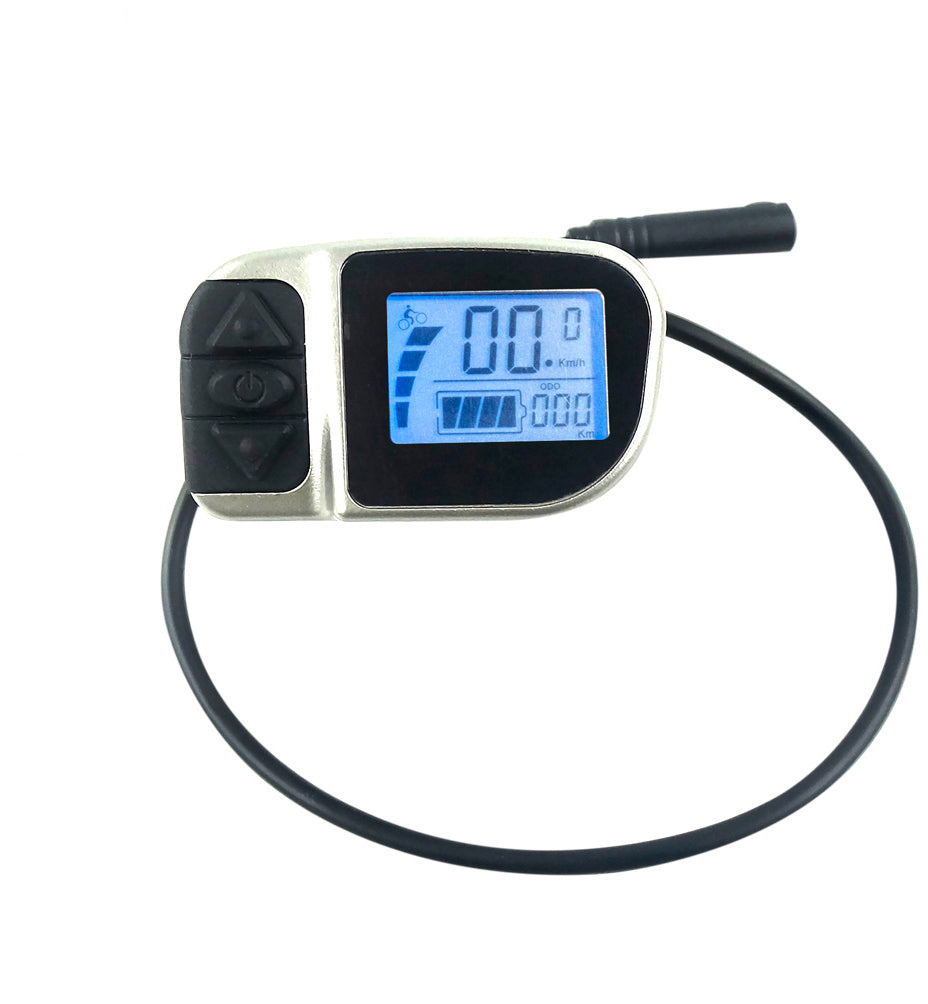

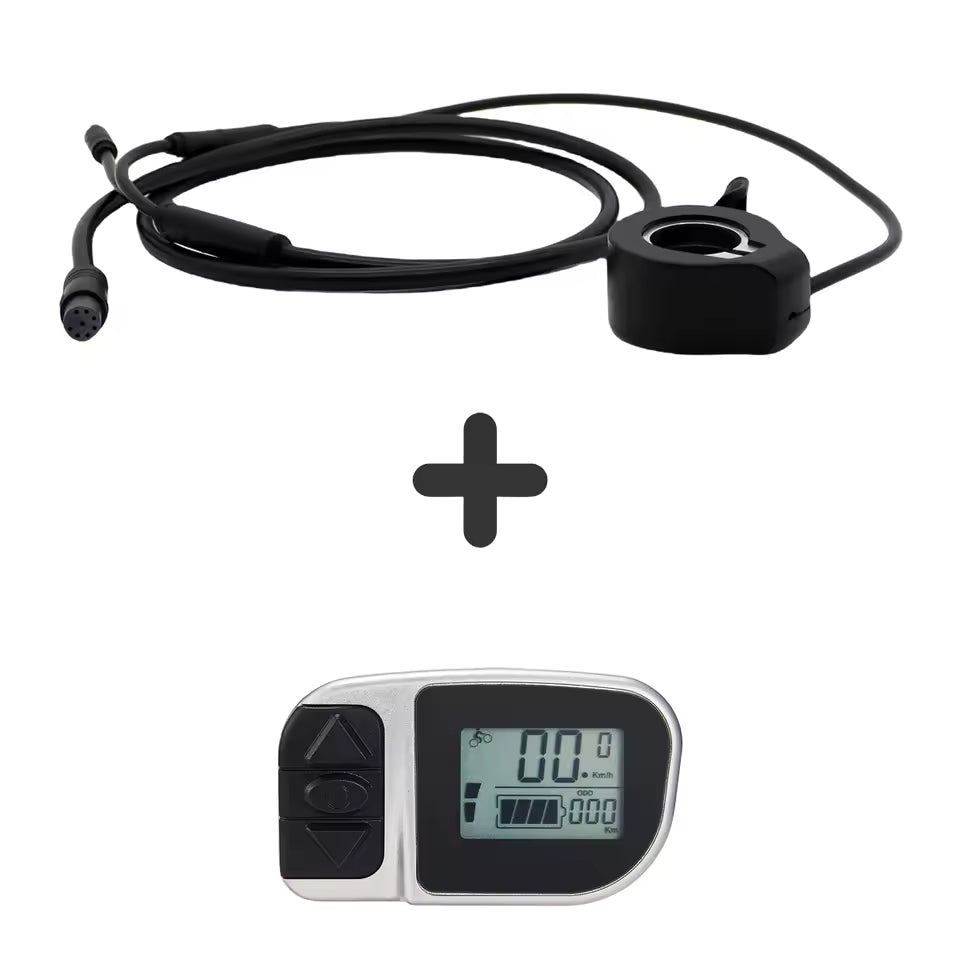

VLCD6 Display

1. Speed display

2. Power indicator

3. Battery electric power display

4. Accumulated mileage

5. 4-level power assist

Background light

Diagnostic code

Waterproof: IPX6

Material: ABS

colour: black+silver

Package Contents:

1 x Display

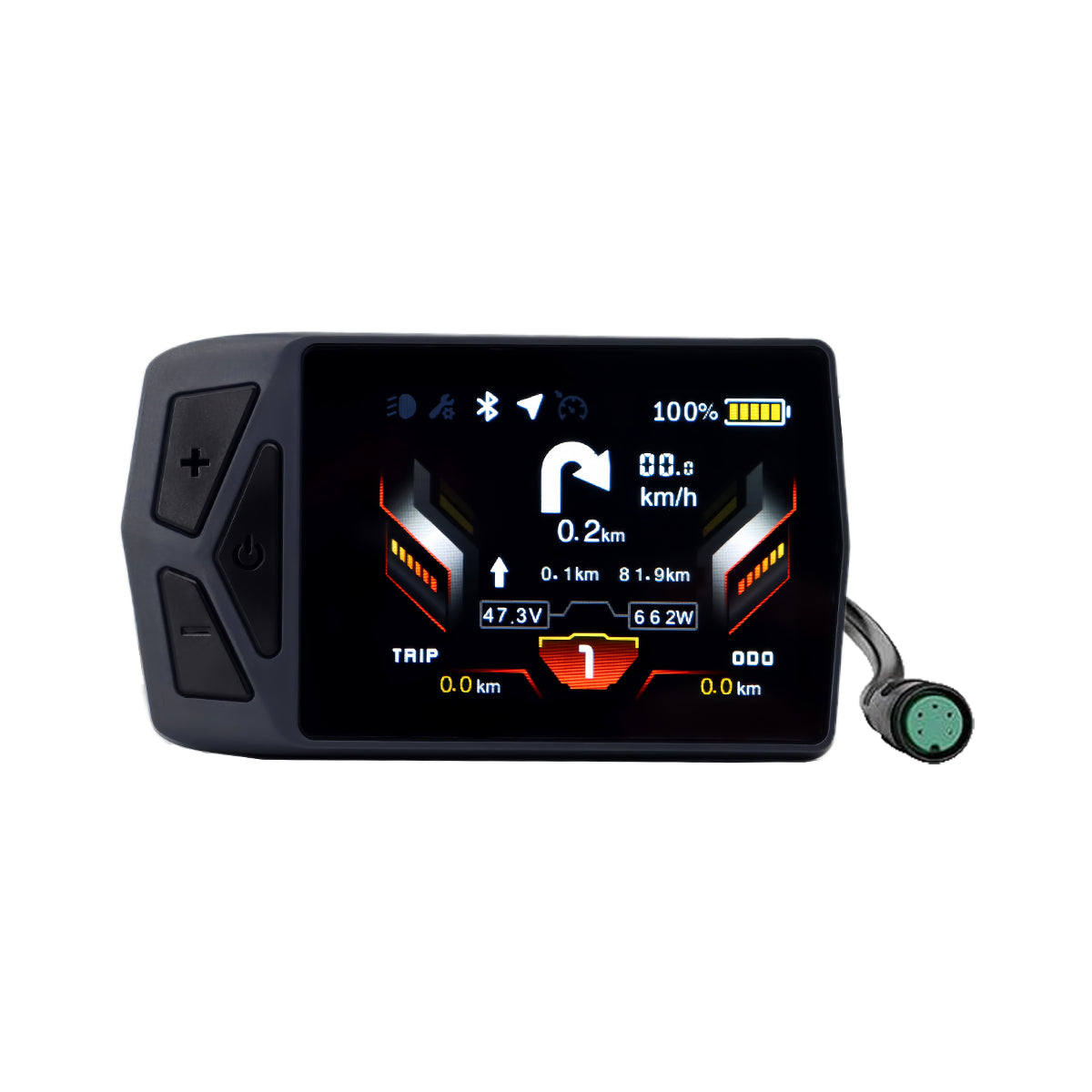

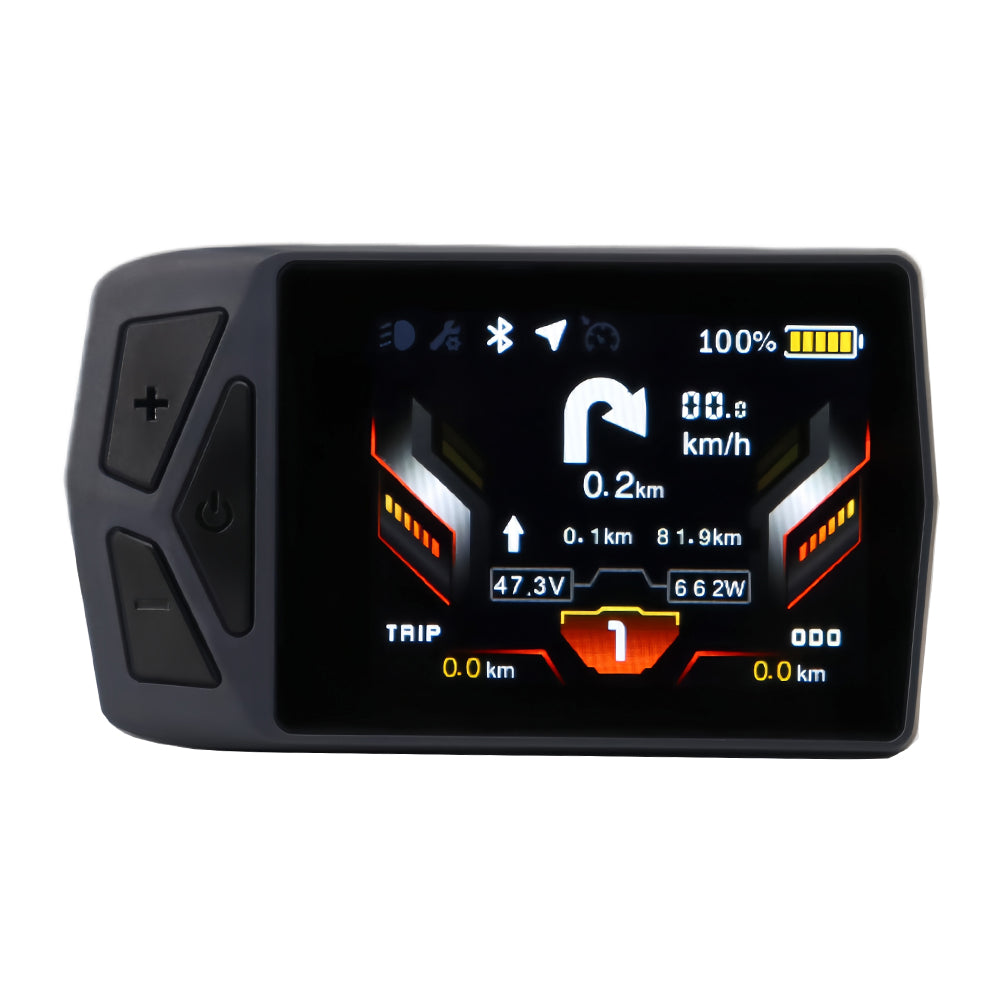

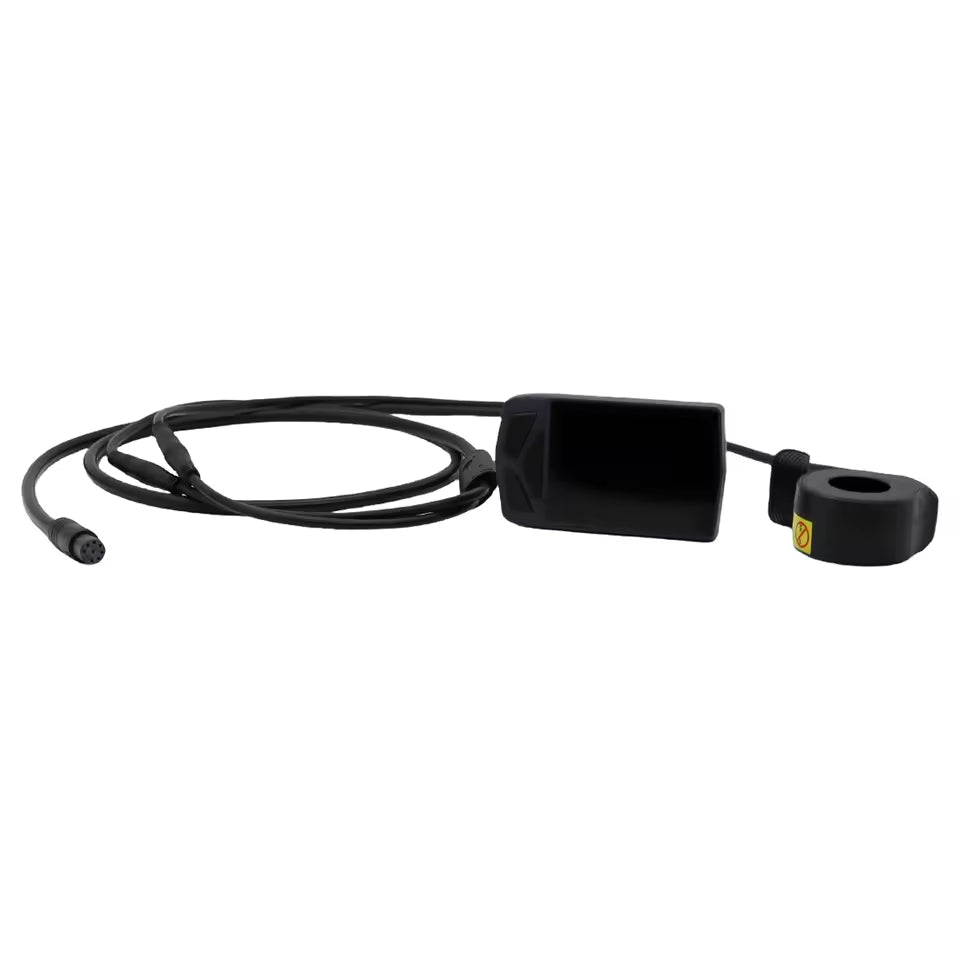

B02N Display

Power supply: DC 12V/32V/48V/60V

Rated current: 18mA/36V

Weight: 78g

Support levels mode: 0-5

Shutdown leakage current: < 1uA;

Screen specifications: LCD digital tube

Communication mode: UART

Screen size: 2.4” LCD(VA)

Operating temperature: -20 C ~ 60 C

Storage temperature: -25 C ~ 75 C

Waterproof grade: IP65

Storage humidity: 30%-70%

Compatible motor: Suitable for Tongsheng TSDZ8 TSDZ2B Mid motor

Bluetooth: 4.0+BLE

Type-cinterface: Yes

CE/ROHS /REACH: Yes

PACKING LIST

1. Tongsheng LCD display

2. Display holder and gaskets
