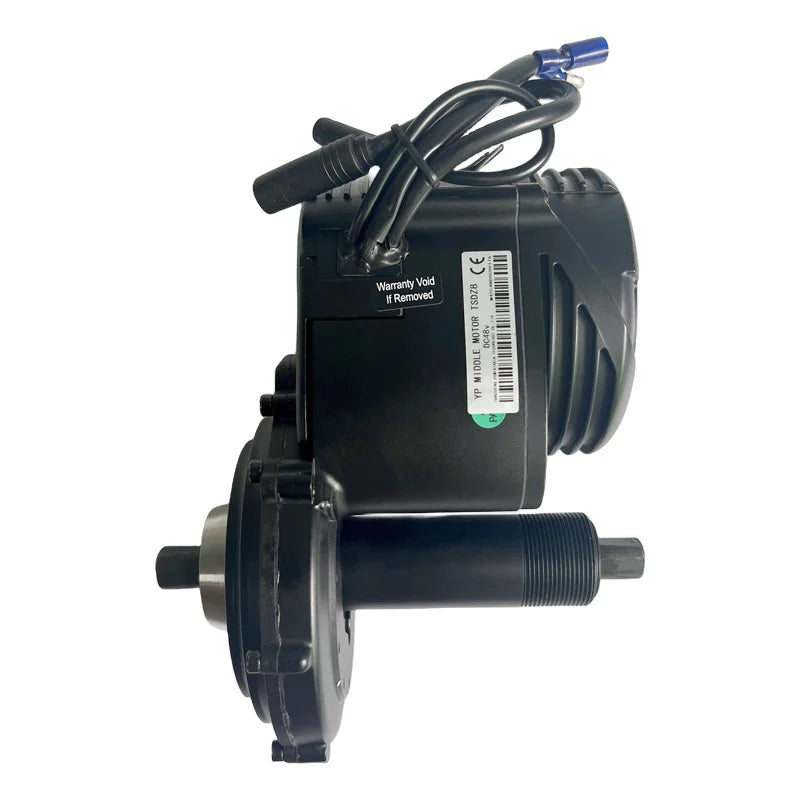

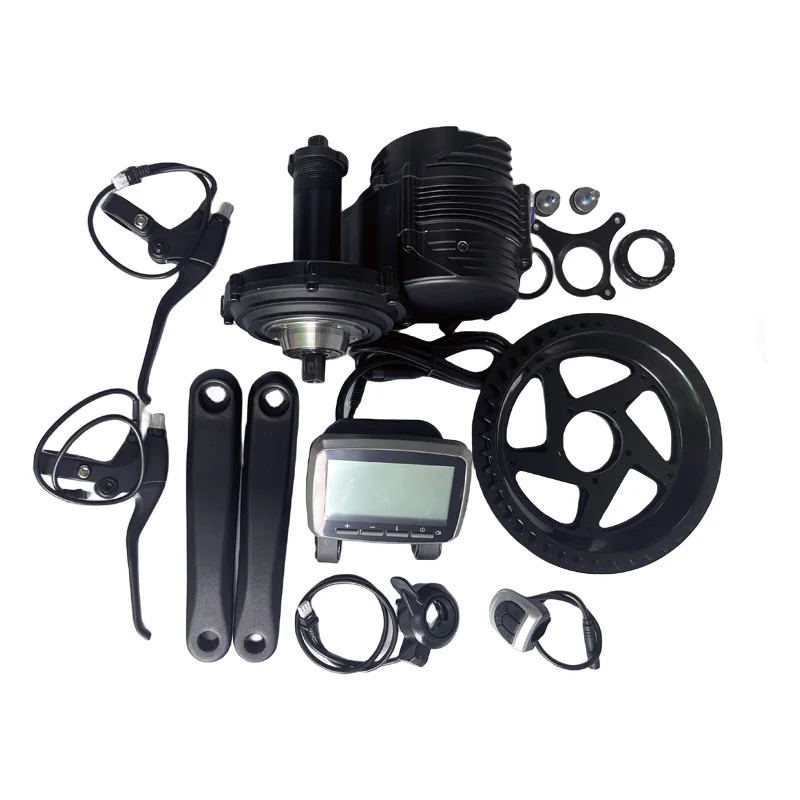

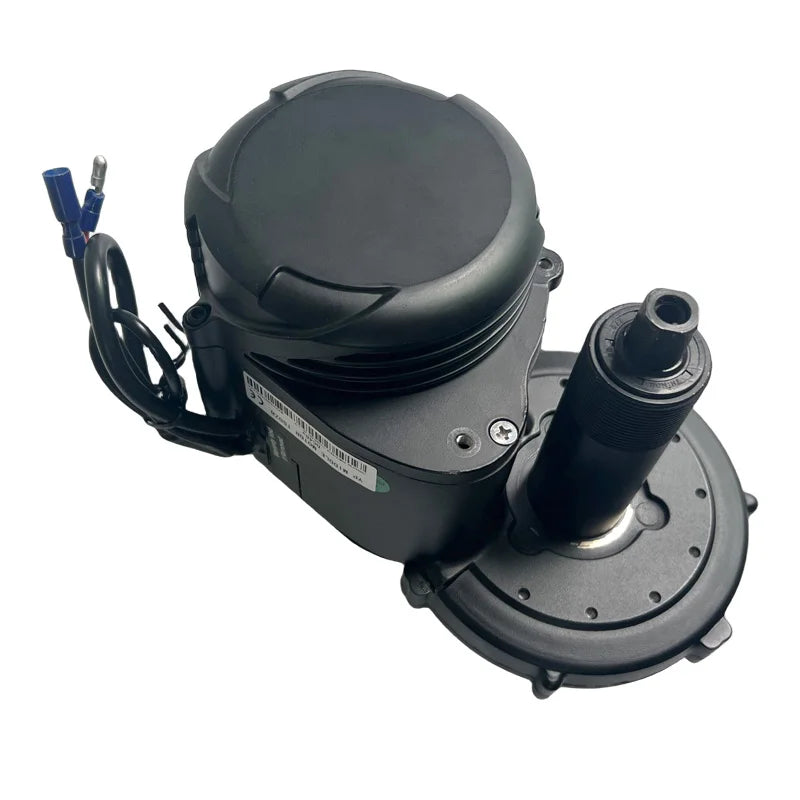

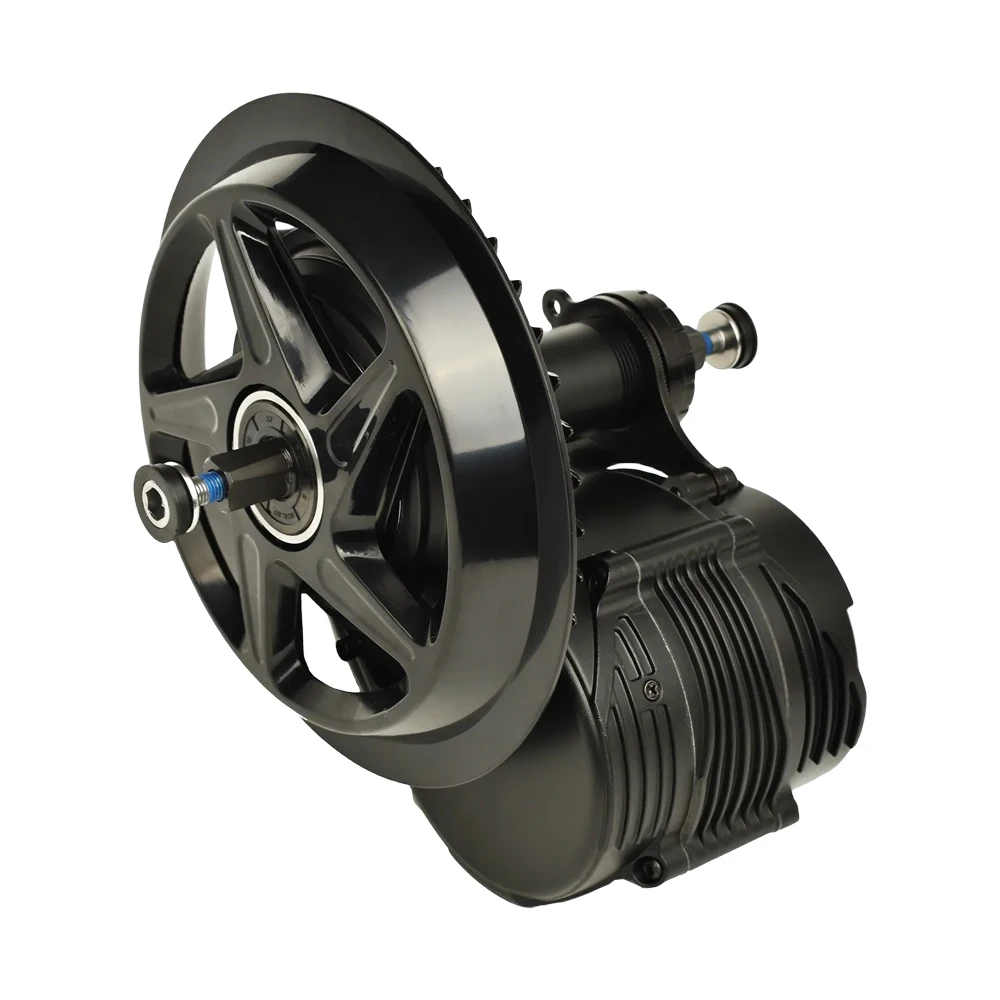

TONGSHENG TSDZ8 48V 750W Torque Sensor Mid Drive Motor Kit

TONGSHENG TSDZ8 48V 750W Torque Sensor Mid Drive Motor Kit

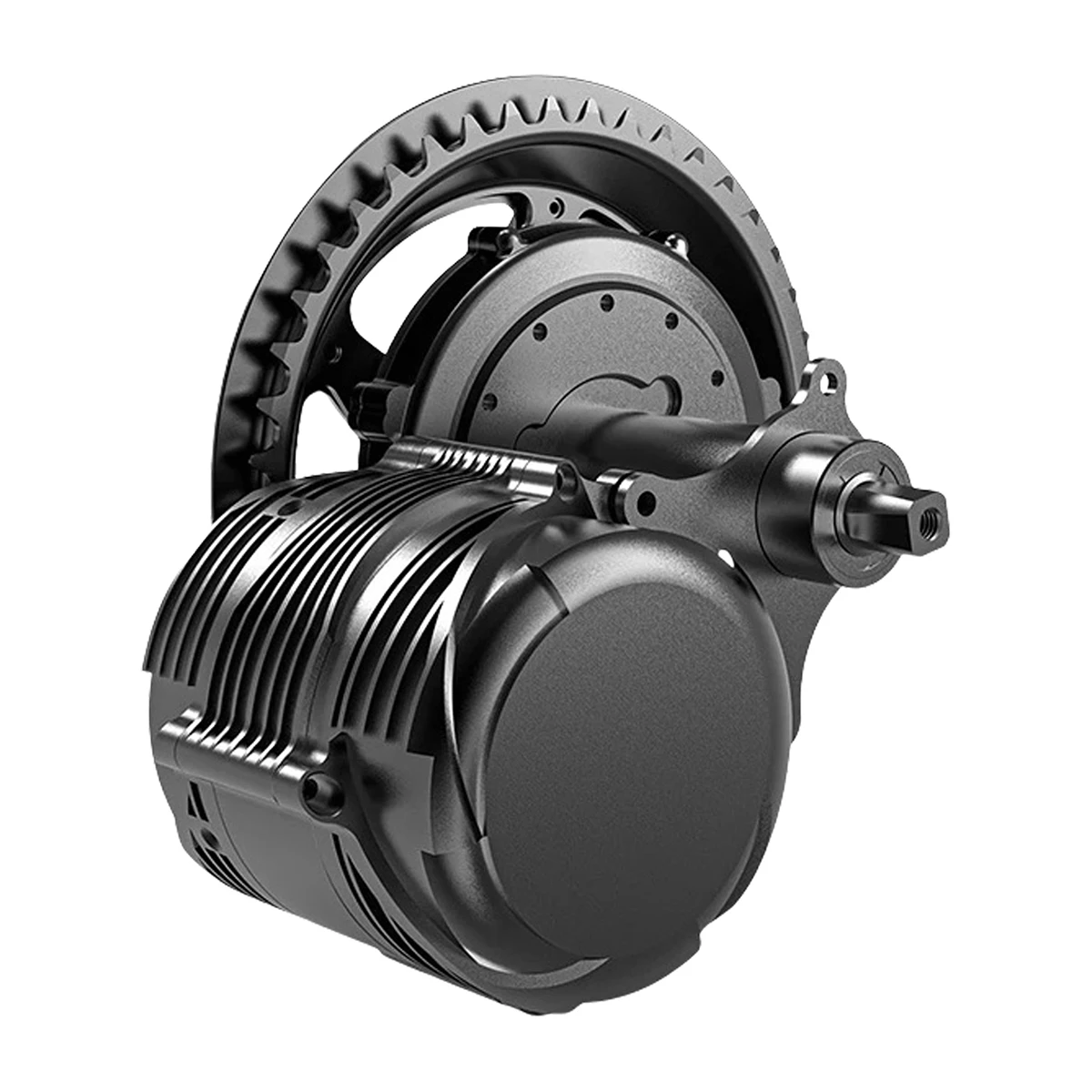

Mid-drive Motor Kit

Voltage: 48Vdc

Power: 750W

Power Assist Ratio: 36%-300%

Speed: 25km/h (Limited); 35~45km/h (Unlimited)

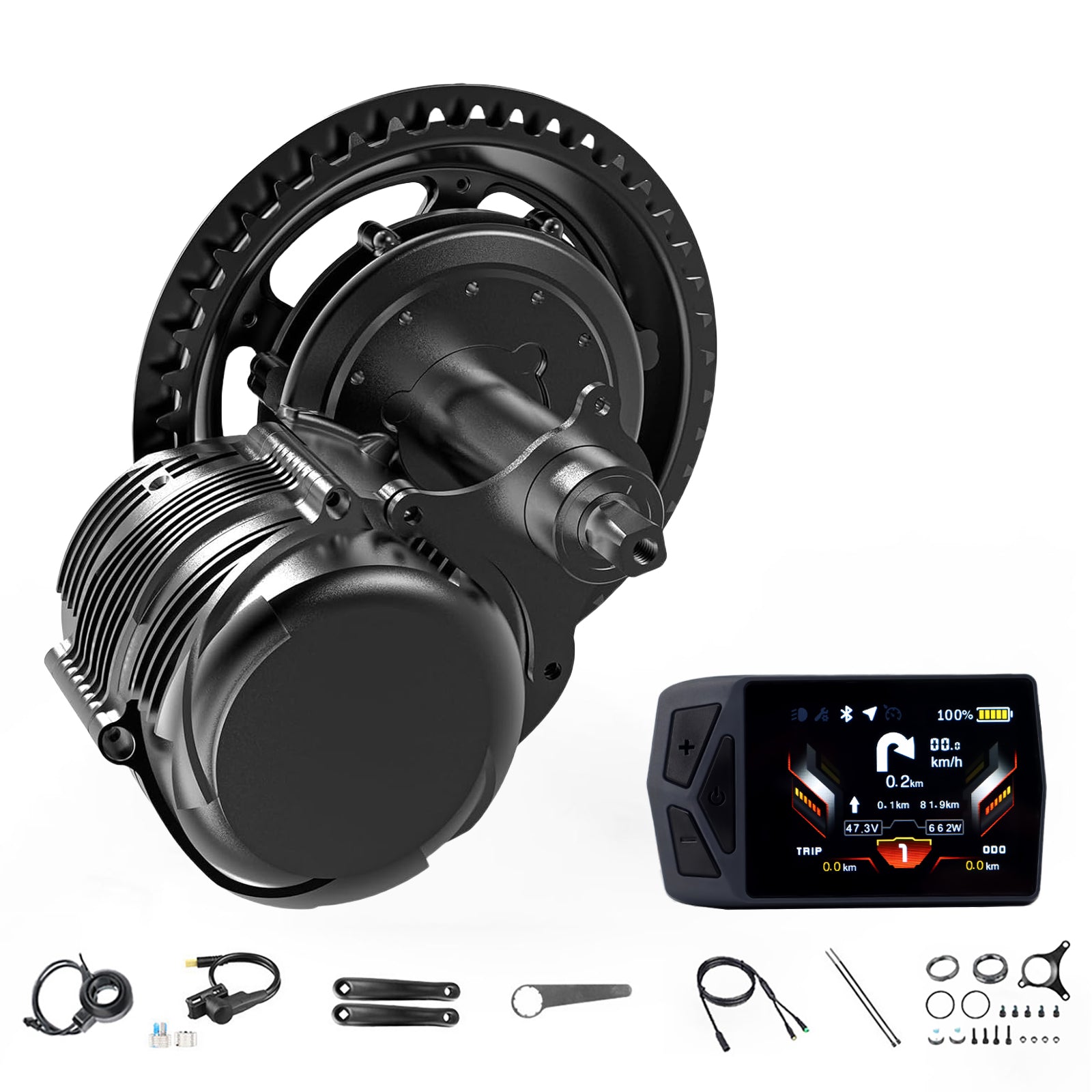

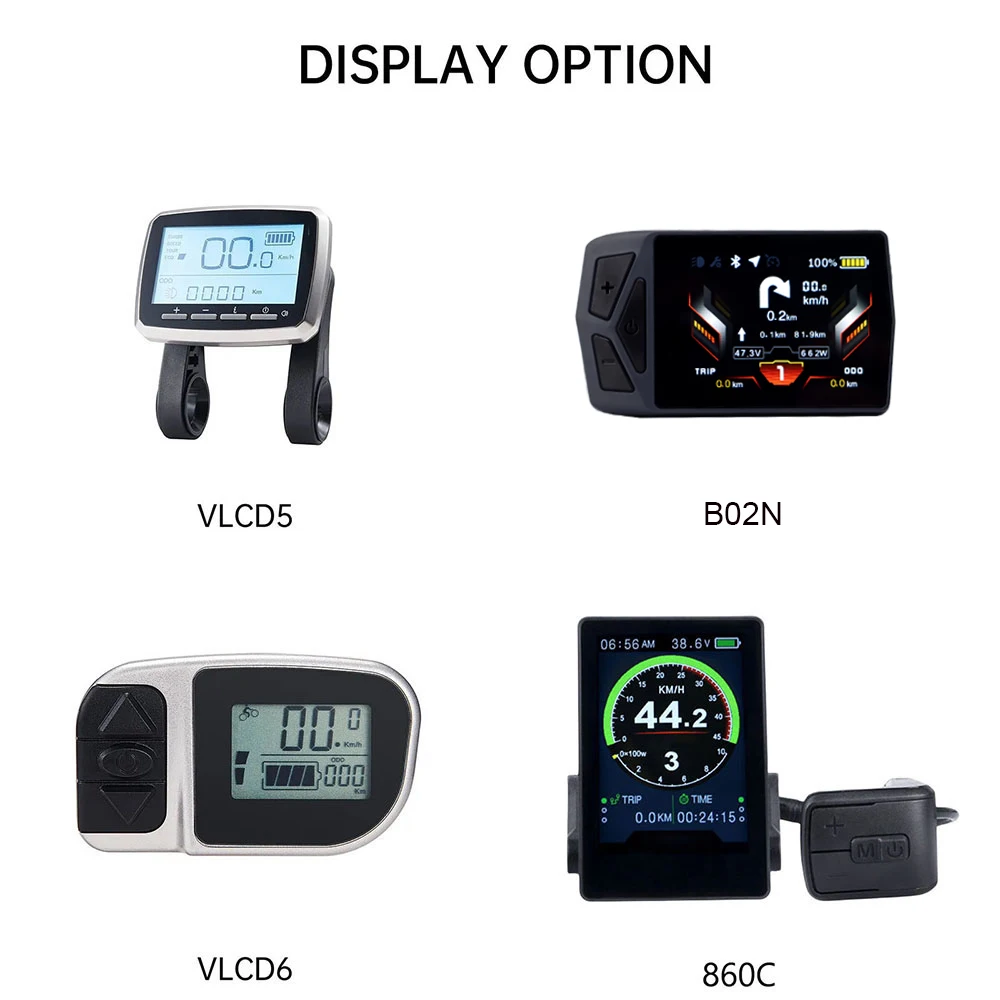

Display: VLCD5, B02N for option

MAX Torque: 140 N.m

Efficiency: >85%

SENSOR: Torque Sensor

Centification: CE/EN 14764/ROHS

Waterproof Grade: IP65

Bare Motor Weight: 4.8kg

Package Weight: 7.16kg

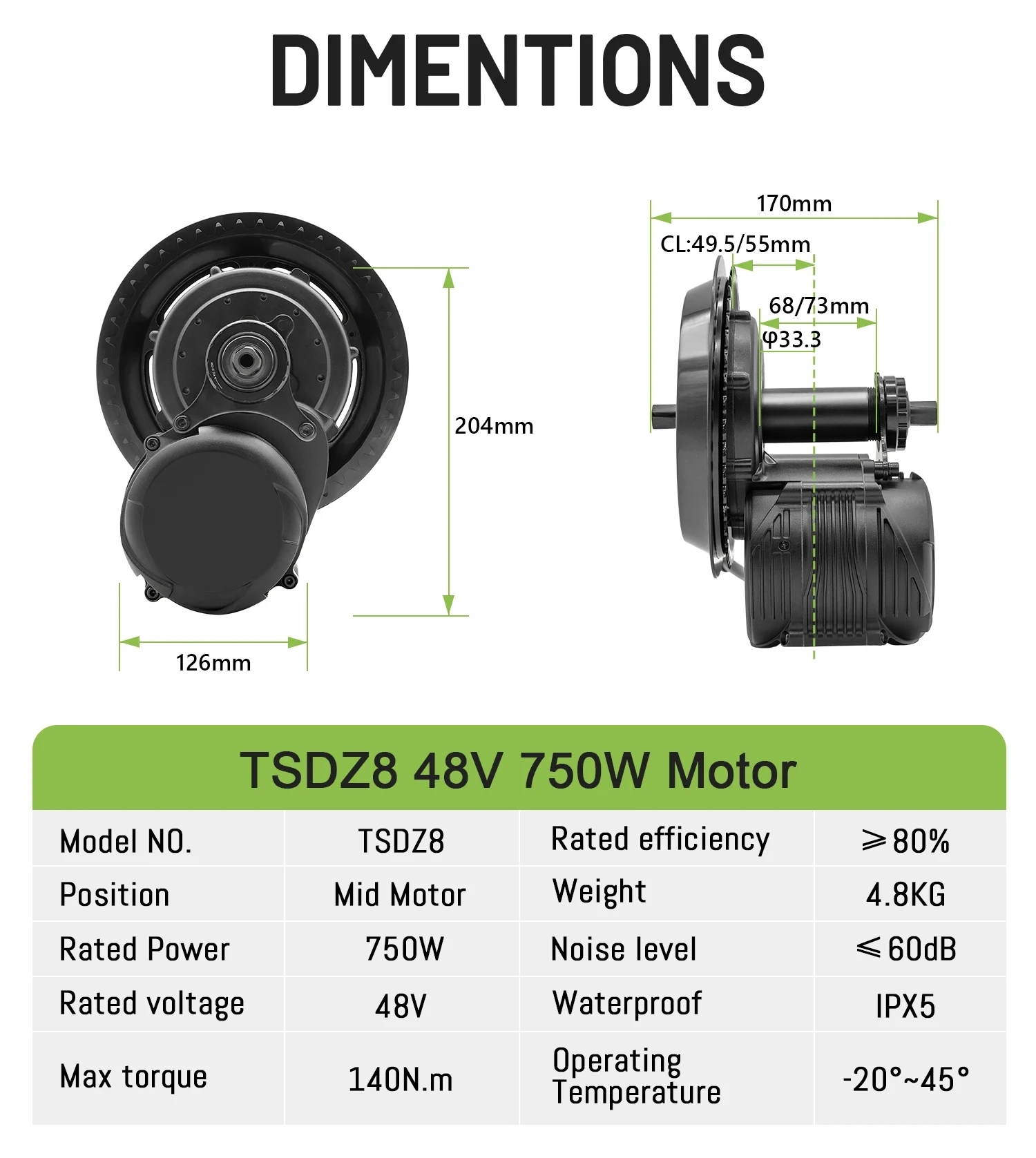

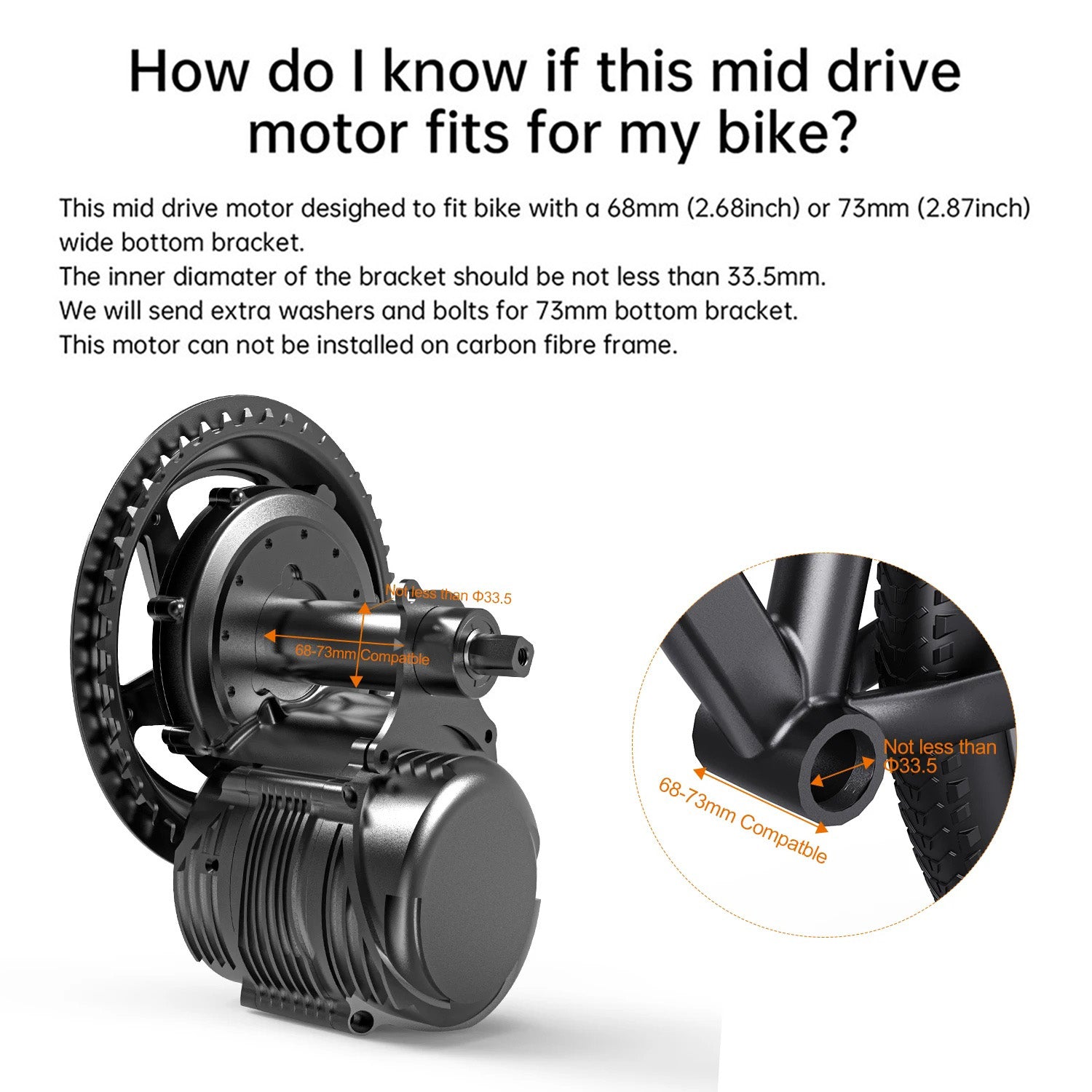

Bracket bottom length: 68/73mm (Standard:JIS)

Motor Operation Temperature: -20℃-45℃

Speed within 25-45km/h can help you ride further

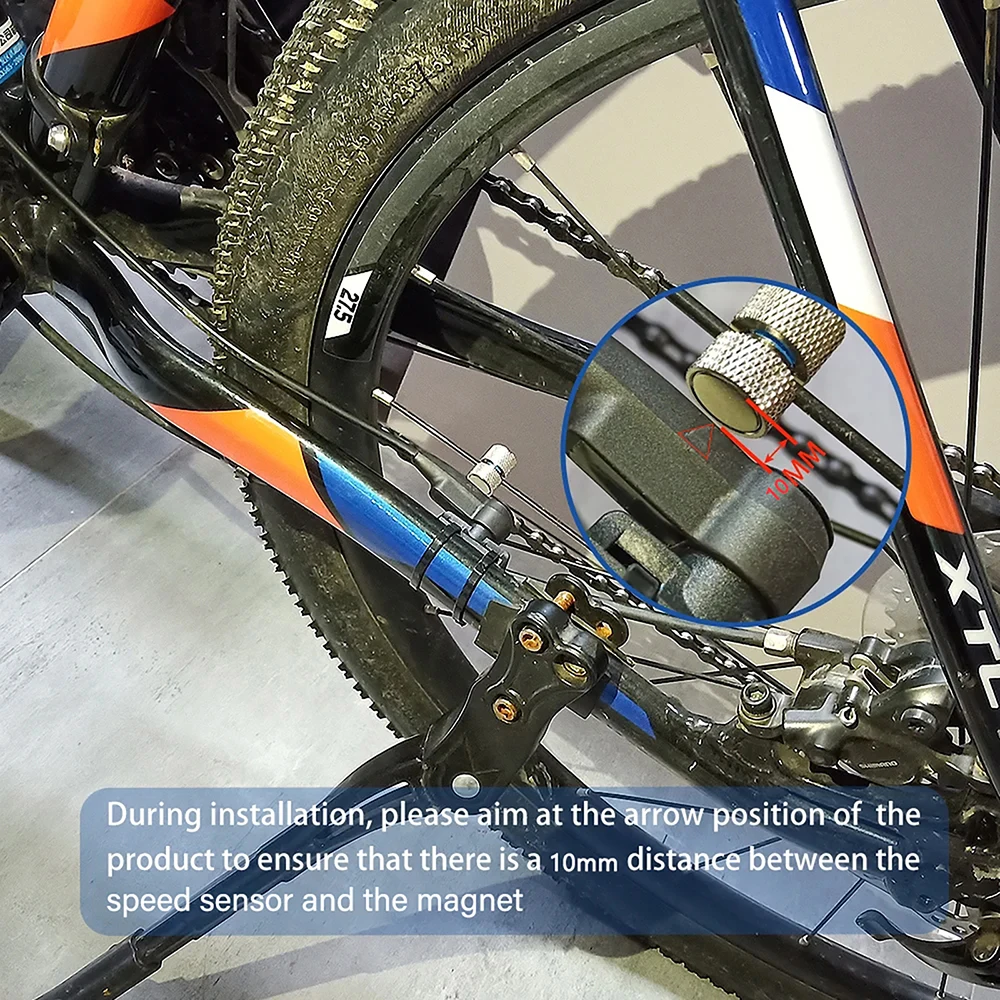

[Speed sensor]

Tighten with cable tie, has to keep distance between 10mm to 15mm and the arrow on the speed sensor align at magnet, otherwise the torque assistance and the speed will not work.

[After Installing]

1. Do not test by hand since the motor does not work if the TSDZ8 mid motor is with no-load.

2. Turn on the display before you sit and put your feet on the pedals, or the torque sensor will have problem.

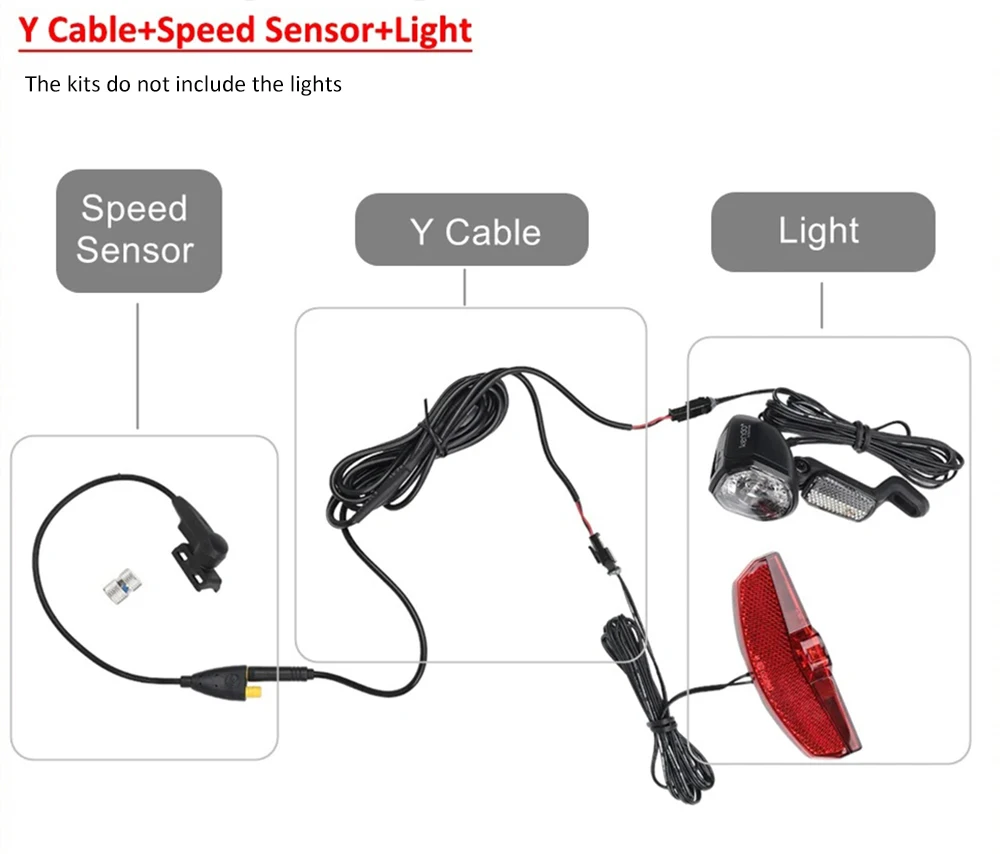

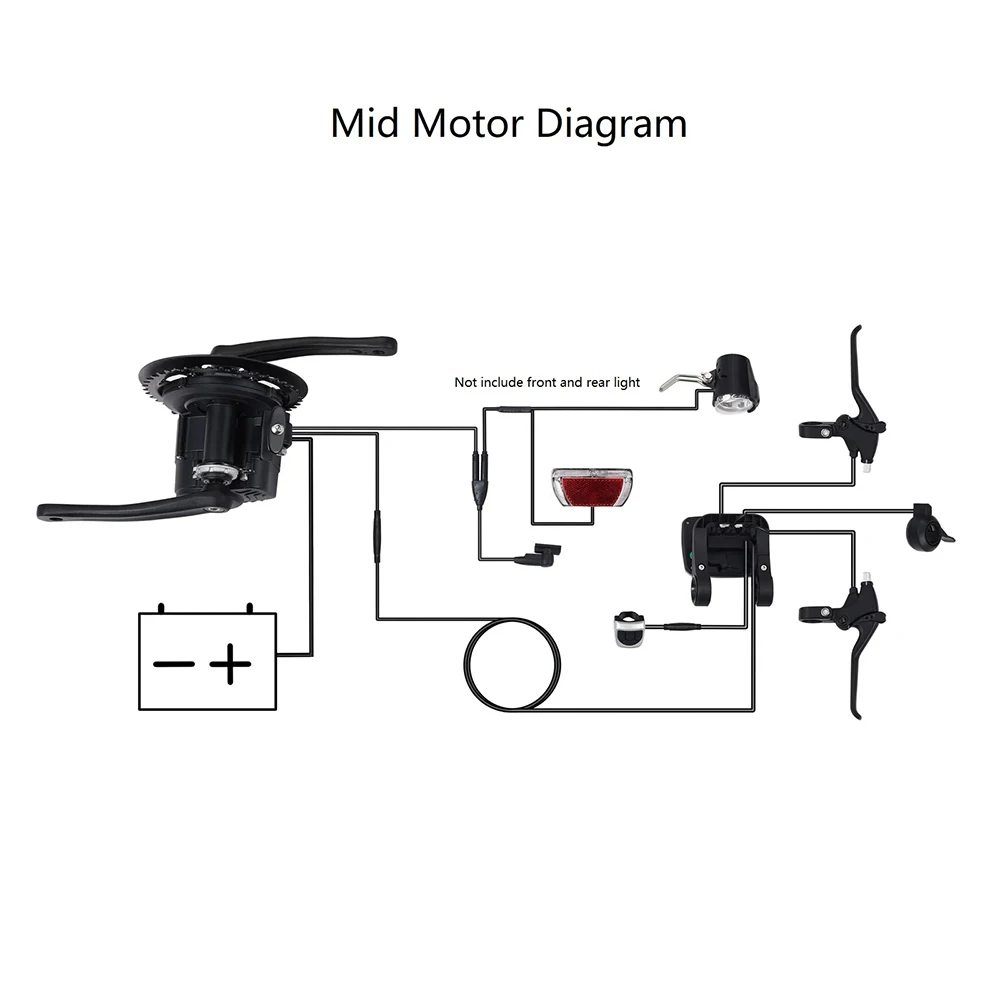

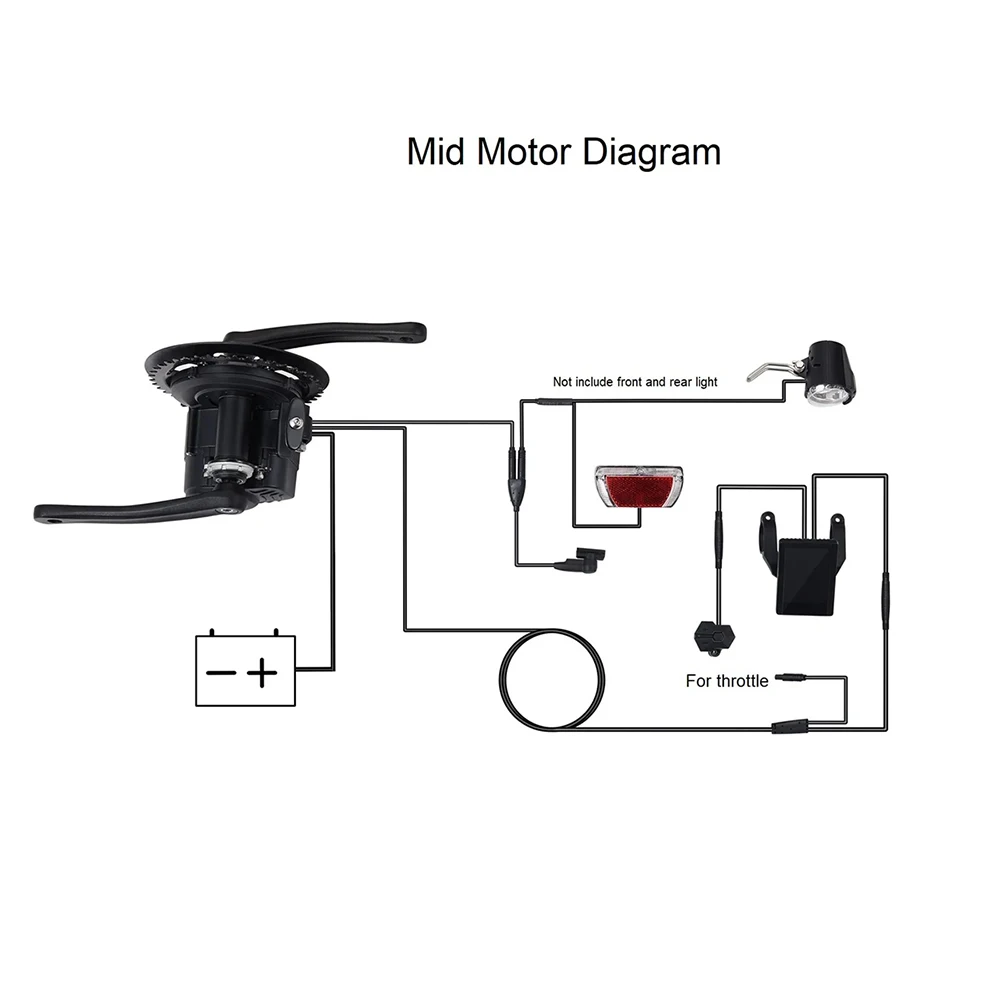

Dual socket speed sensor, which are more robust, and include a split 'Y' adapter, to hook up a 6V 3W headlight, and 6V 3W taillight, which you can control from the display supports up to 54.6V input voltage, this motor cannot works on 58.4V input voltage.

How to connect the Bluetooth Display?

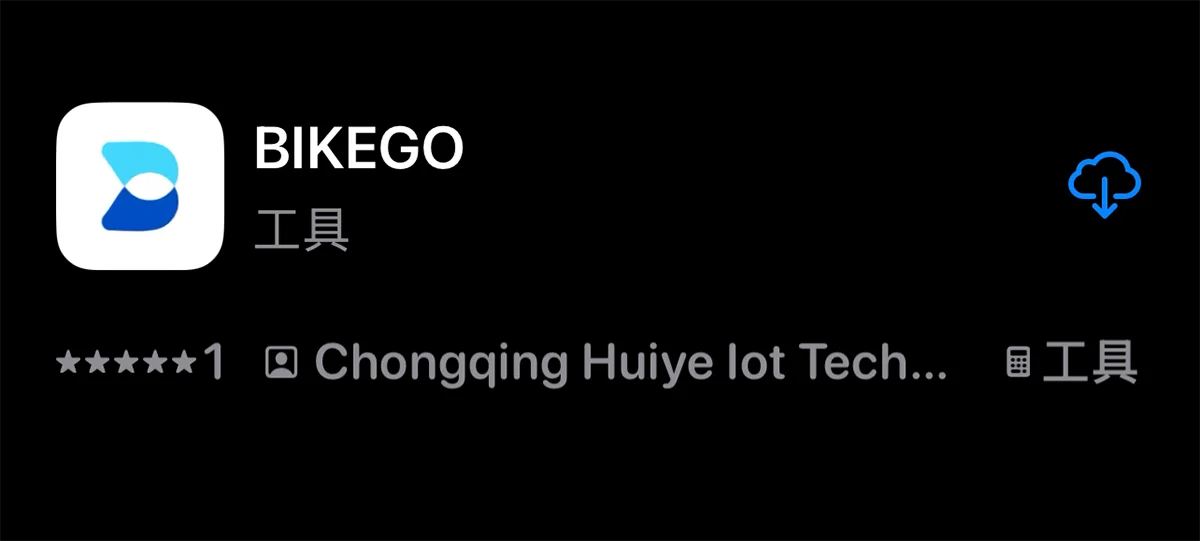

Step1: Download the Bikego APP

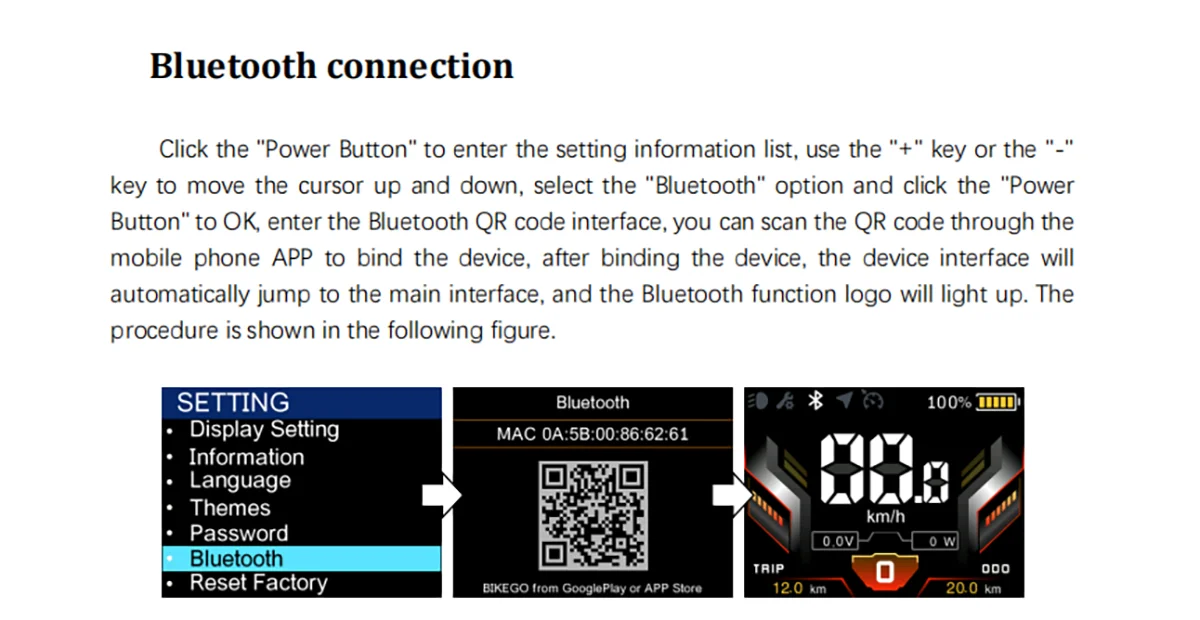

Step 2: Bluetooth connection

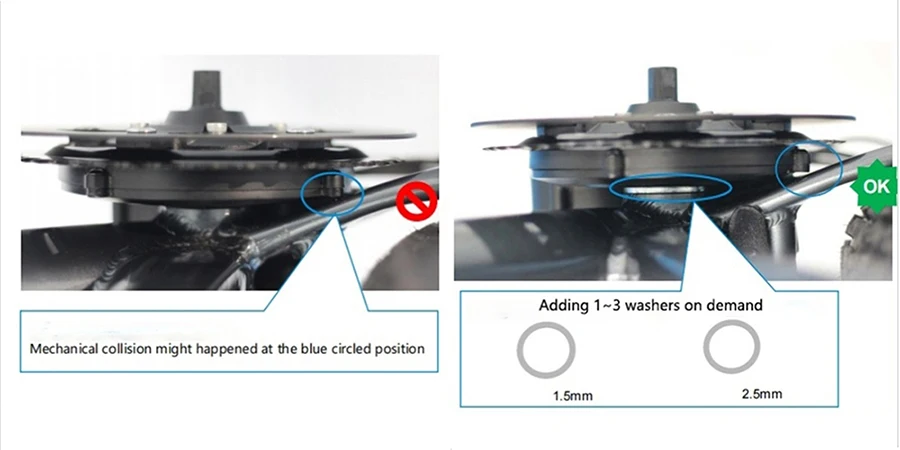

Motor Installation
