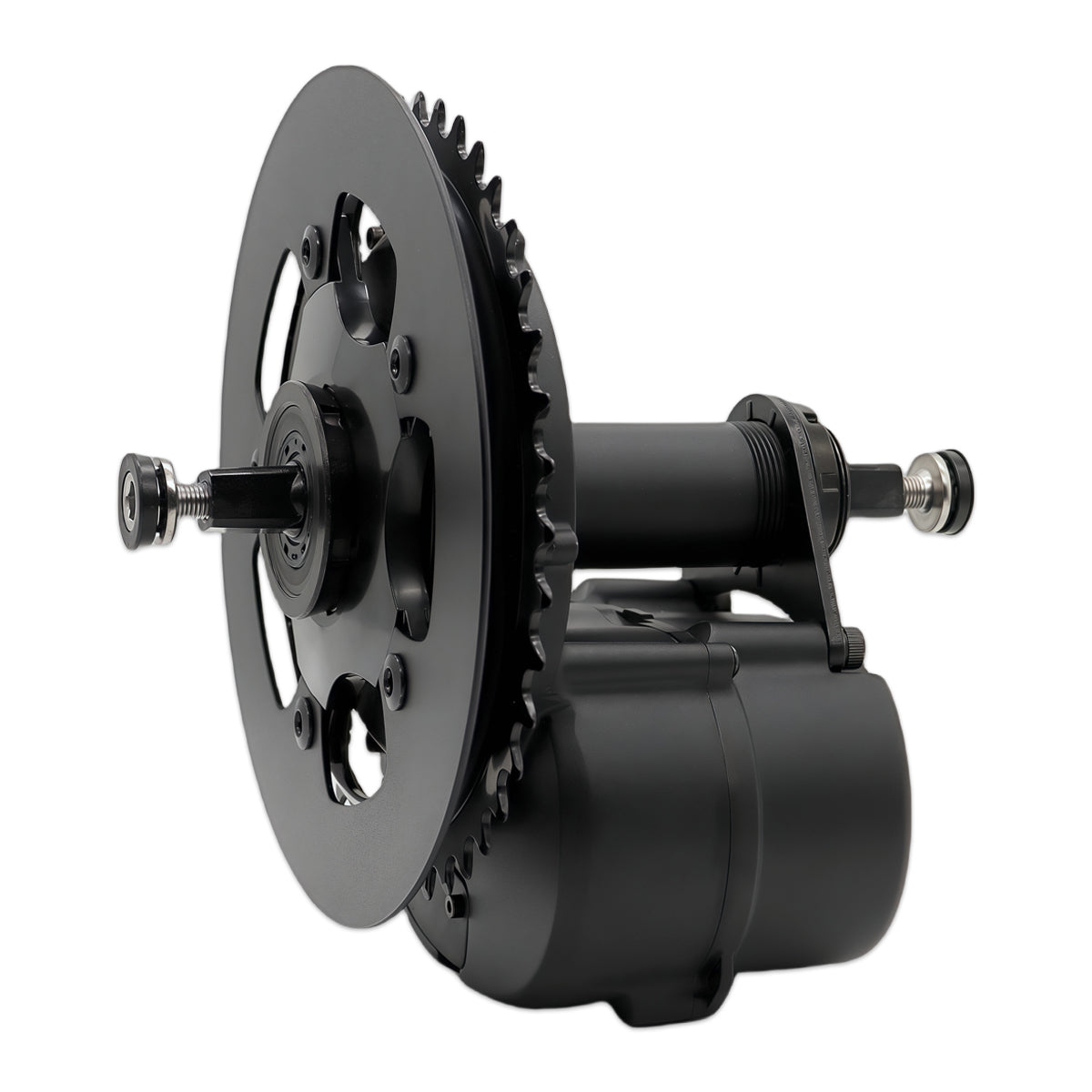

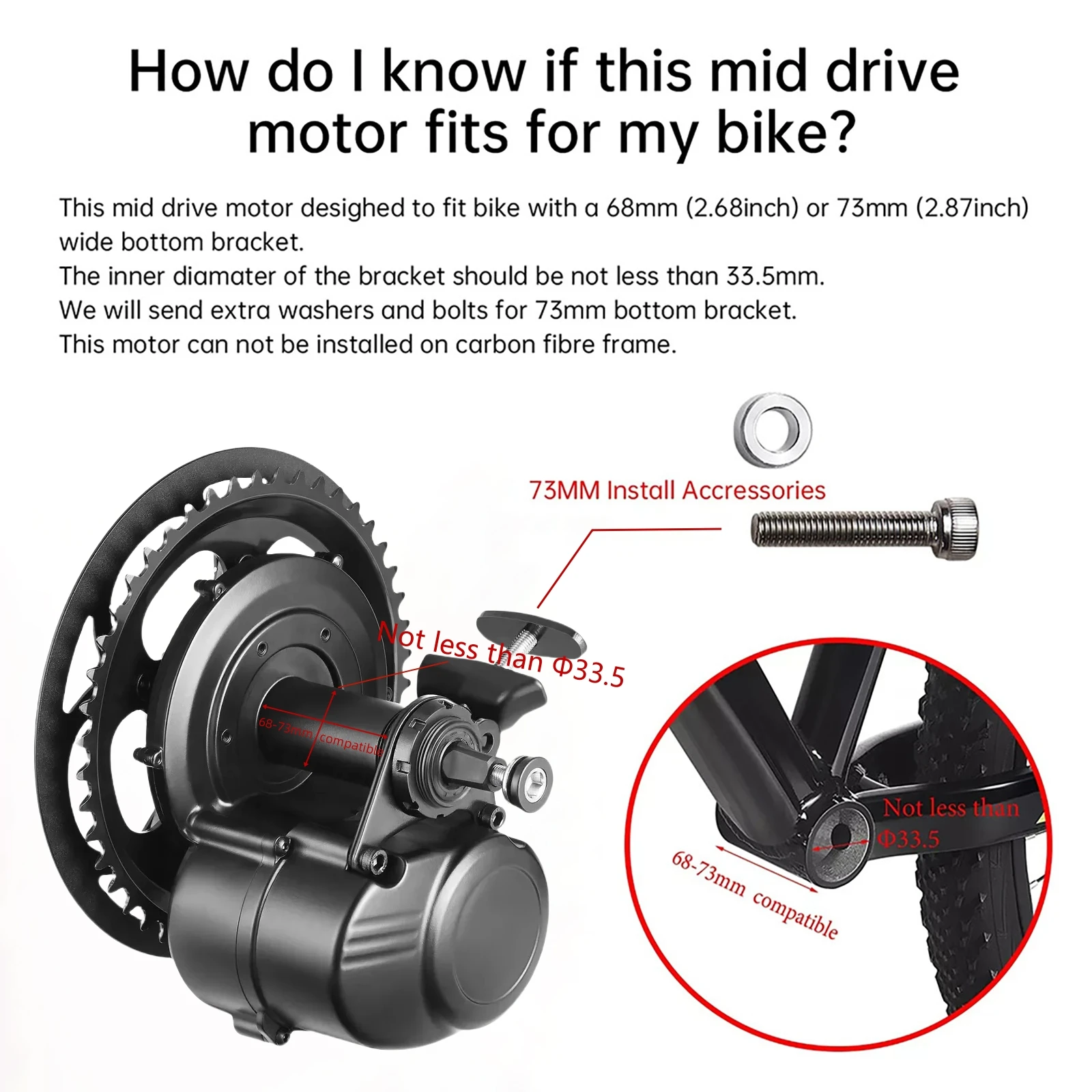

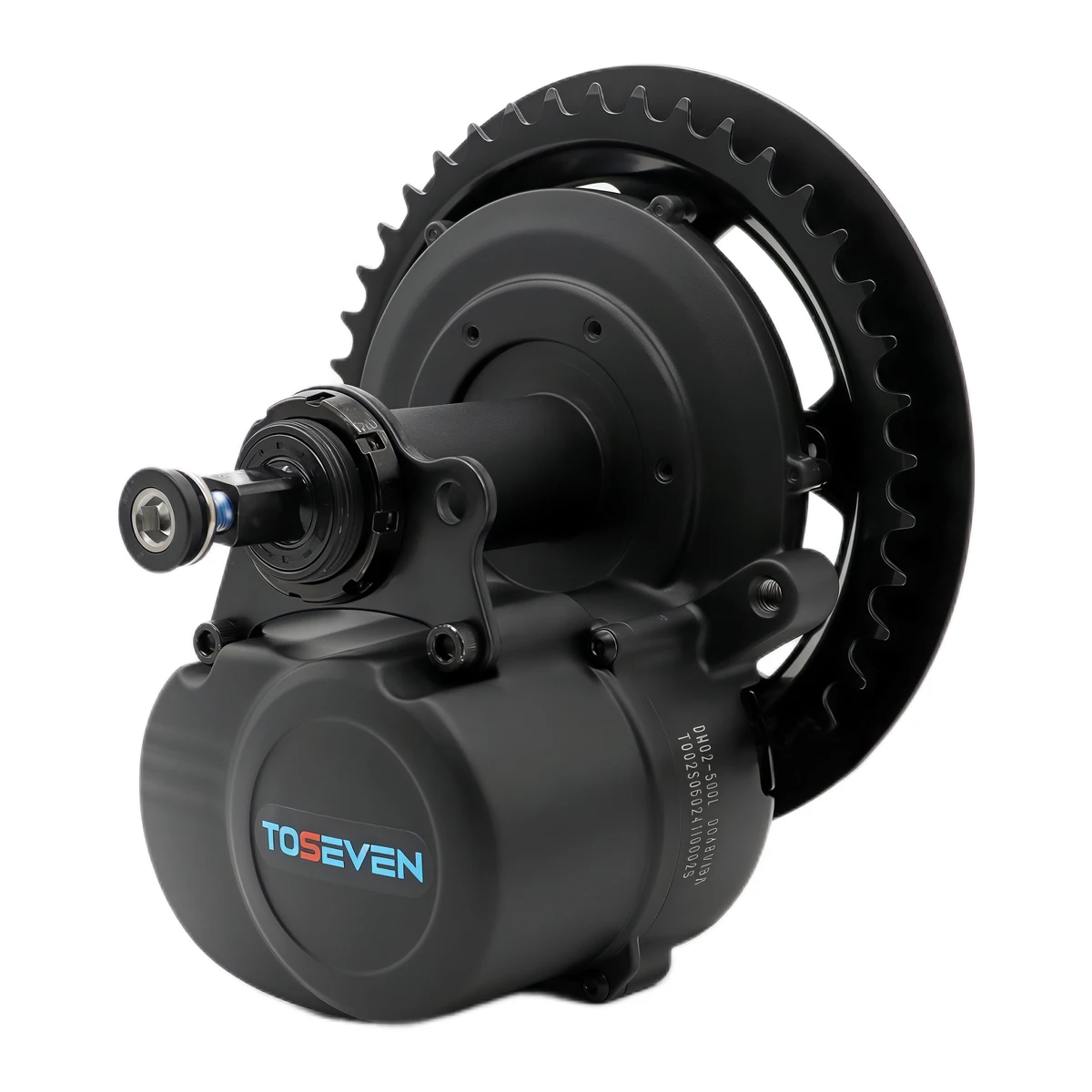

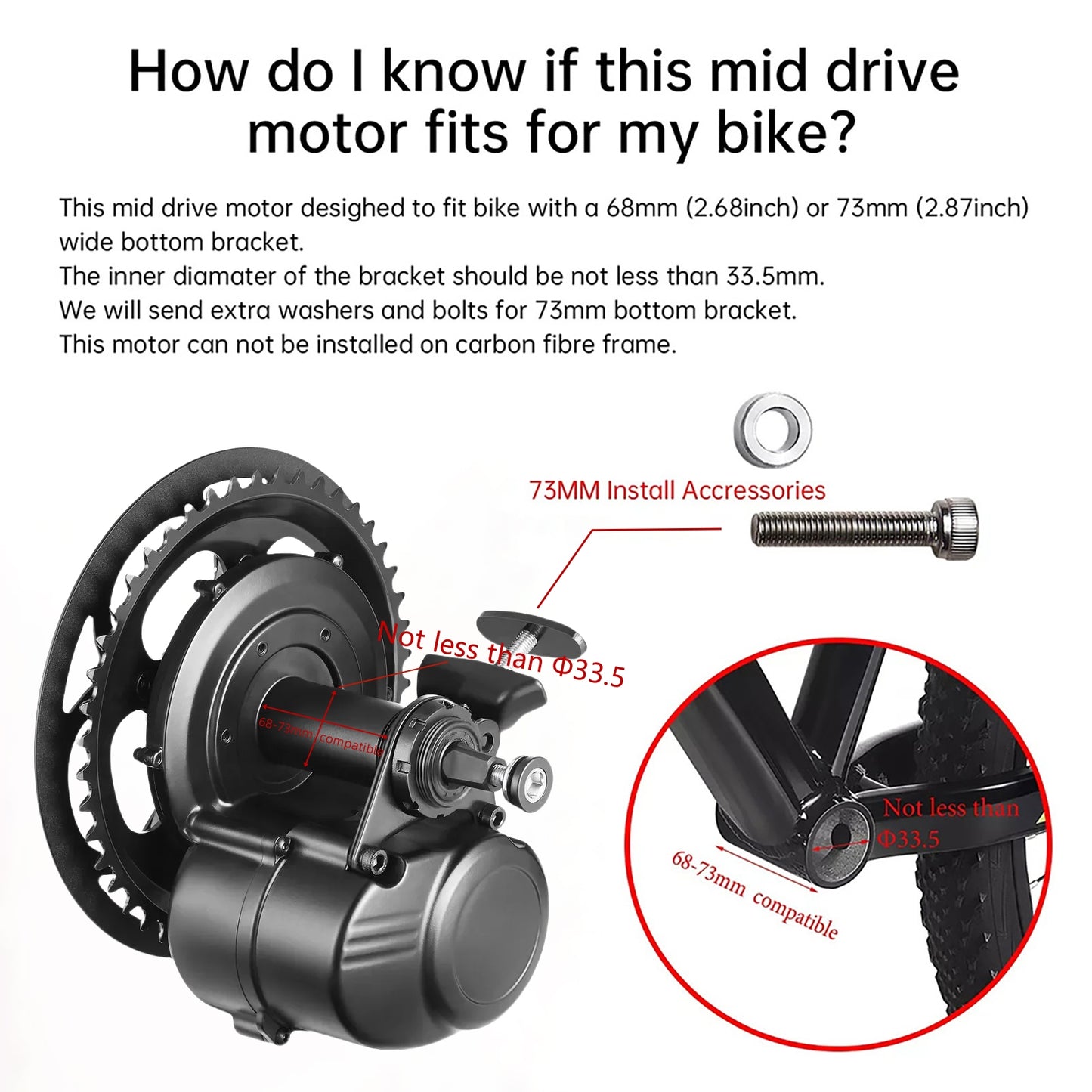

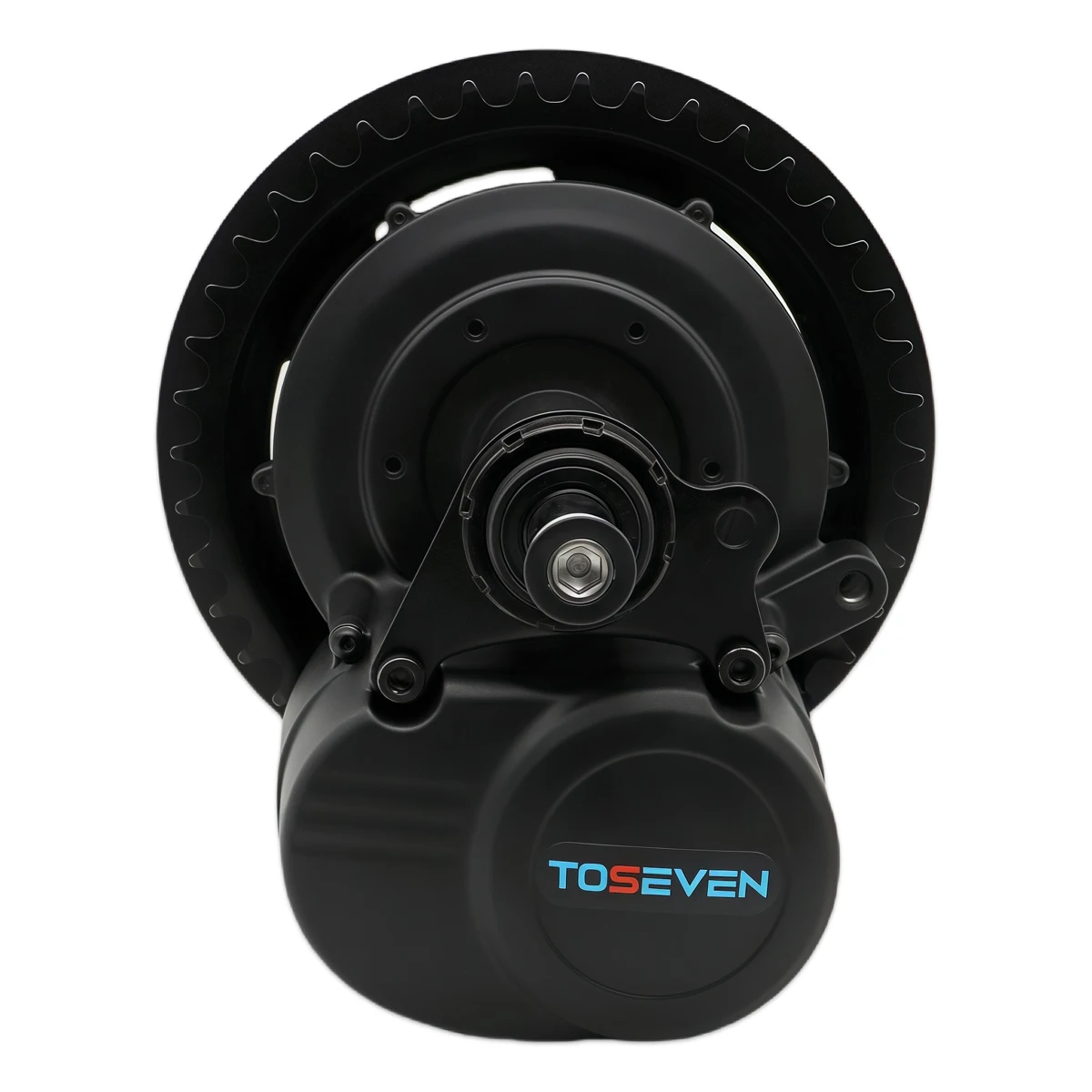

Toseven DM02 48V 500W Mid Drive Motor Kit for BB68/73mm Bike
1) Main Technical Parameters
Model: DM02-500 DM02L-500
Rated Voltage: 48V
Rated Power: 500W
Max. Speed: 100RPM
Max. Output Torque: 90Nm
Assist Ratio: 2.5-3
Speed Ratio: 53
Motor Weight: 3.7-3.9Kg
Waterproof Level: IP65
Suitable Chainring: 42T

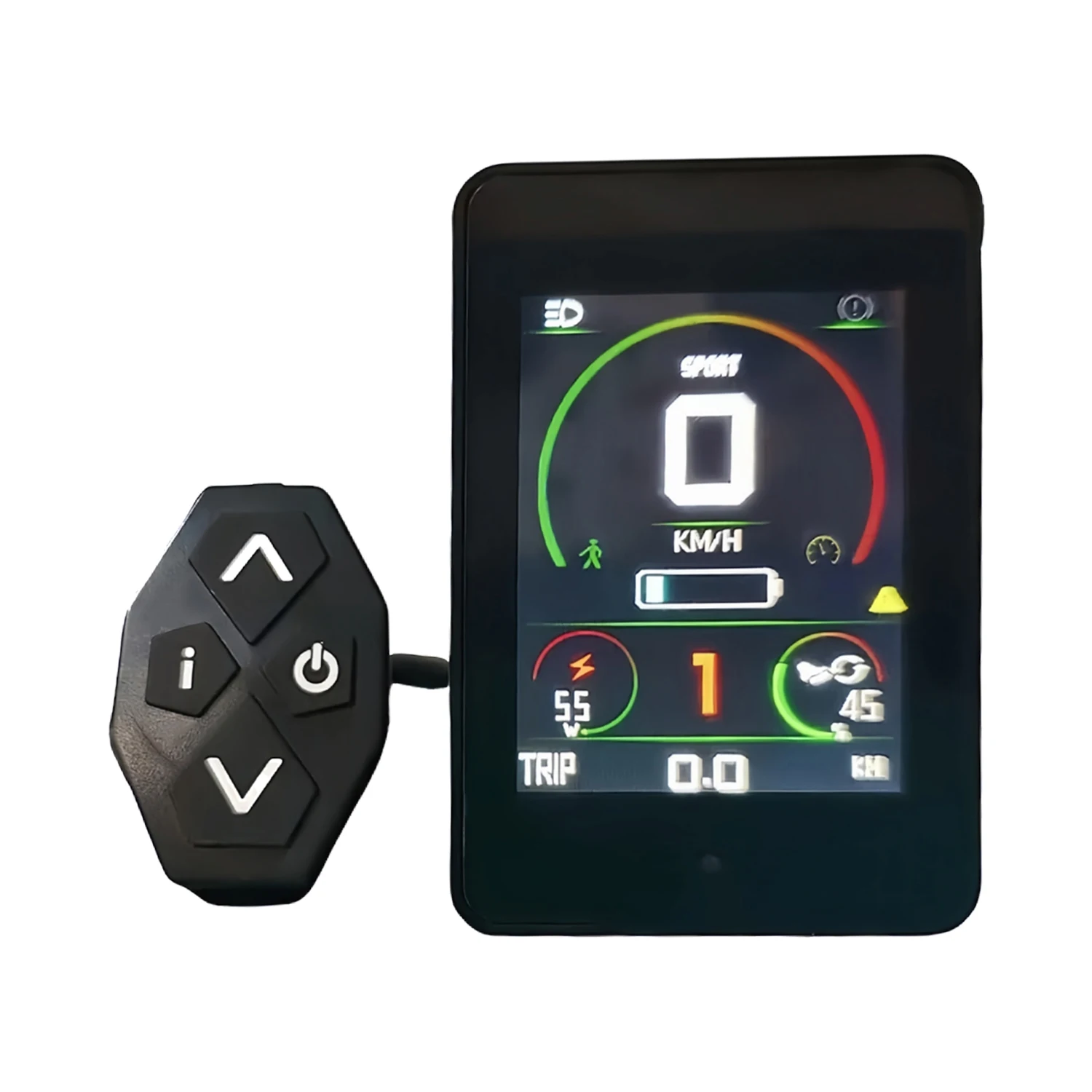

Monitor: T24 TFT Colorful Display
Advantage: Built in Cadence Sensor & Torque Sensor
Working Temperature: -20℃～50℃
Notice:
[Speed sensor]
Tighten with cable tie, has to keep distance between 2mm to 10mm and the arrow on the speed sensor align at magnet, otherwise the torque assistance and the speed will not work.

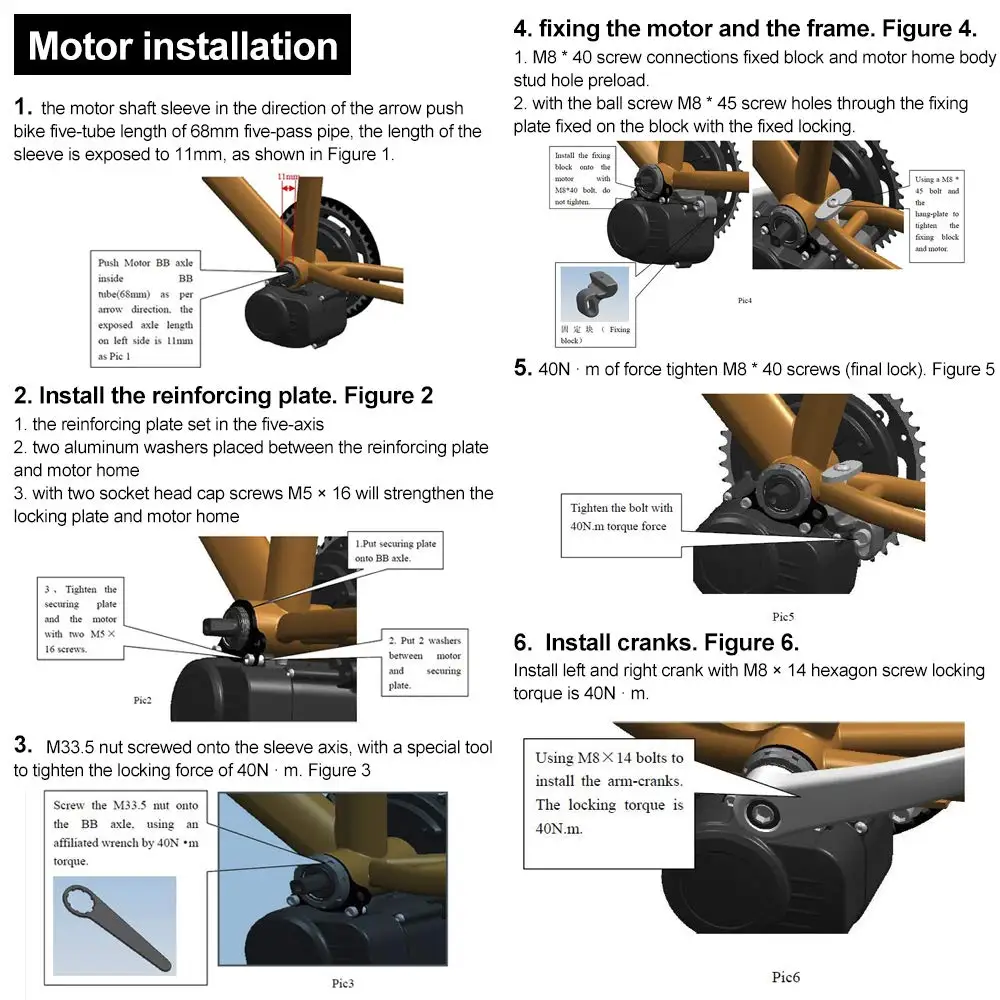

[After Installing]
1. Do not test by hand since the motor does not work if the mid motor is with no-load.
2. Turn on the display before you sit and put your feet on the pedals, or the torque sensor will have problem.

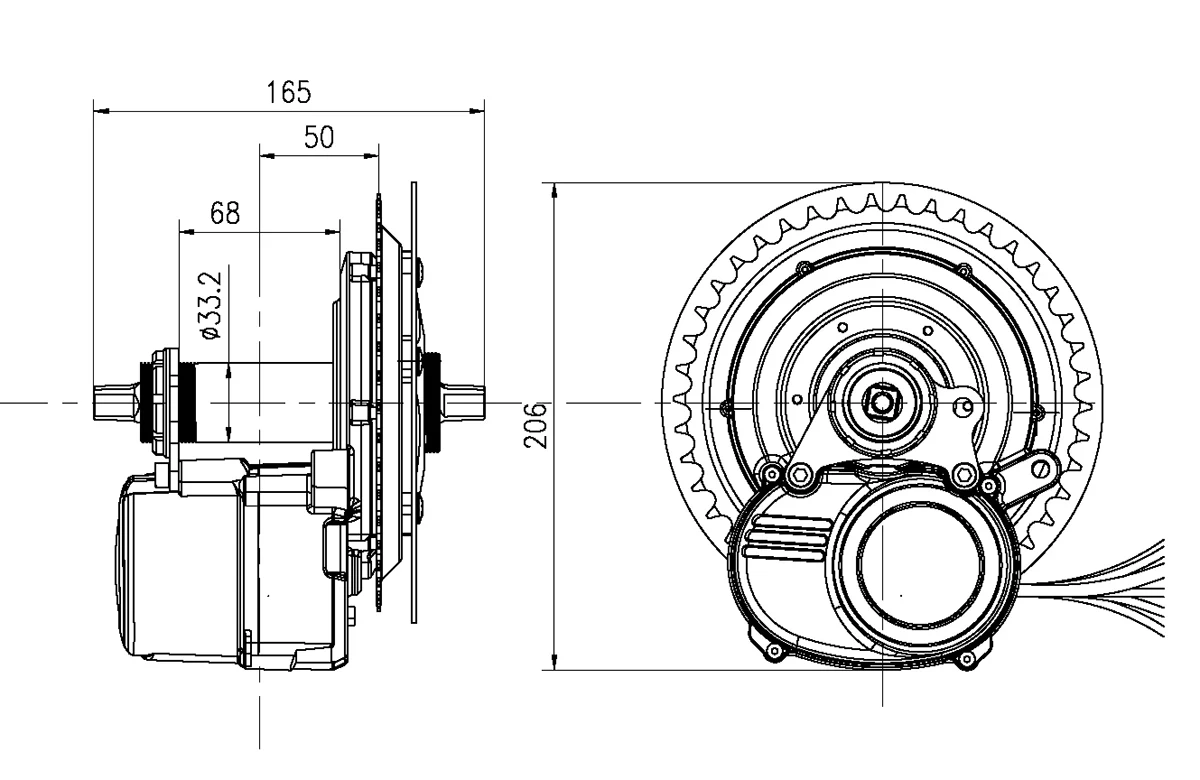

2)Specifications and Dimensions

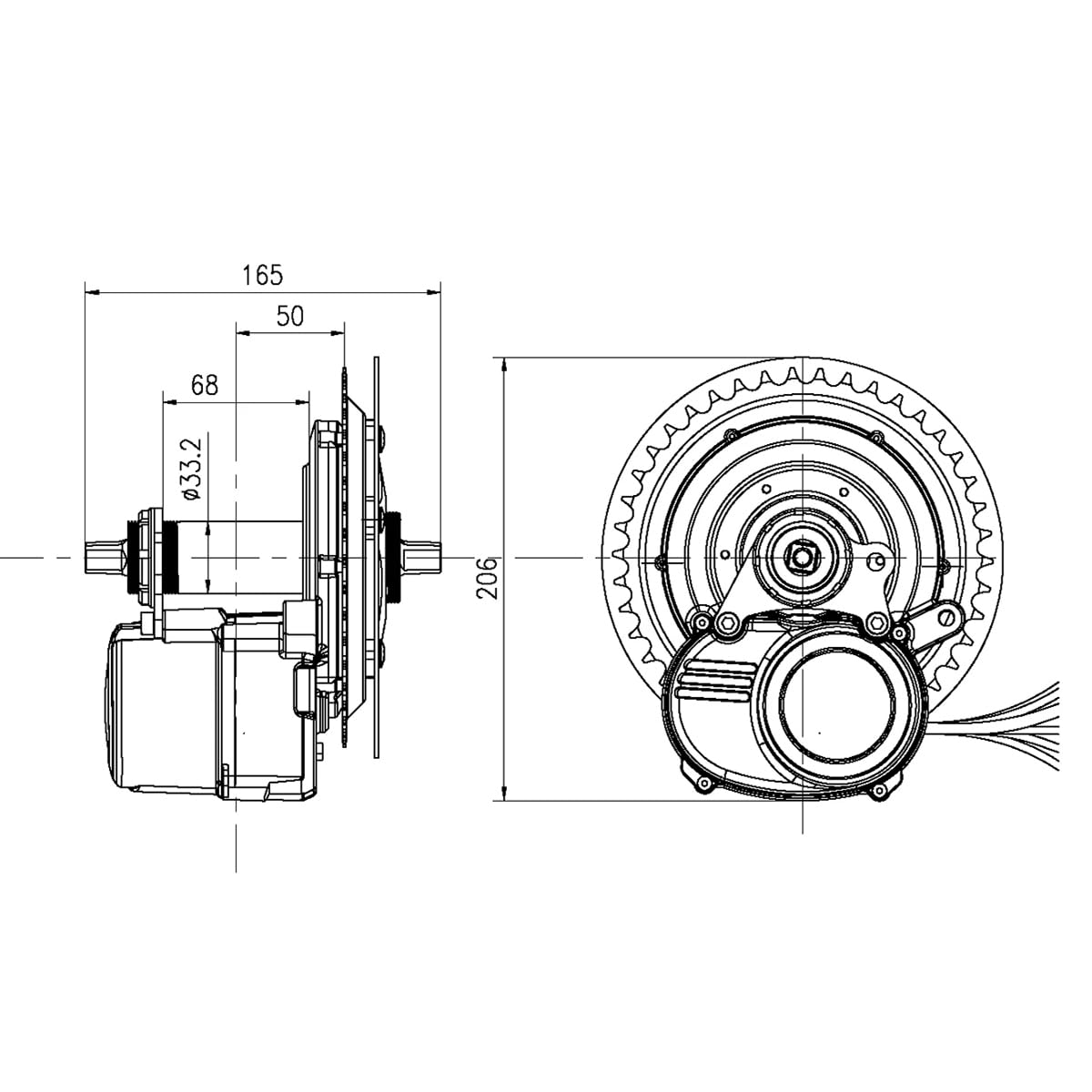

①BB=68 CL=50( or 59) Model: DM02-500

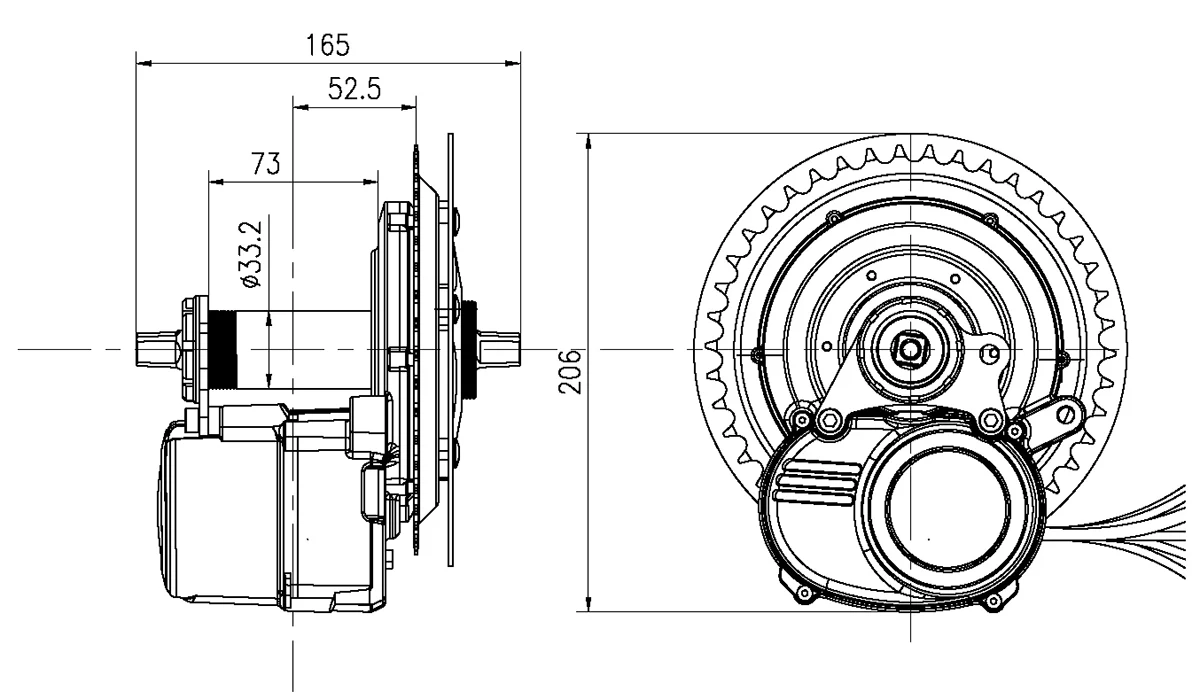

②BB=73 CL=52.5( or 61.5) Model: DM02-500

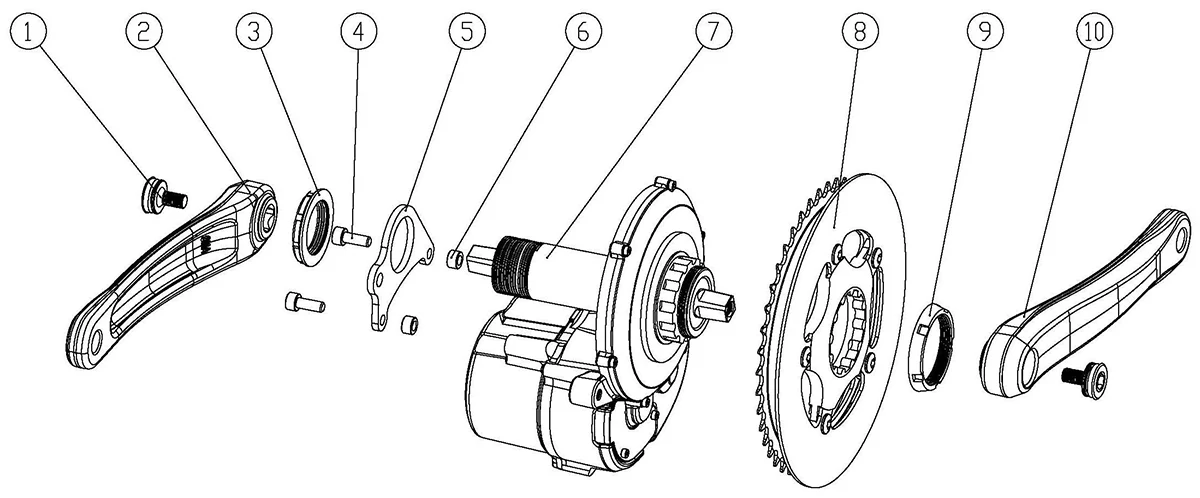

3)Factory Configuration
①BB=68 CL=50( or 59) Model: DM02-500
No. Component Part Code Specification Qty BB=68 BB=73
1 Axle Screw M8X1X15 2 √ √
2 Left Crank 170mm 1 √ √
3 Decorative Cap M33.5X1.5 1 √ √
4 Non-standard Nut See Column 6 or 7 2 M6X16 M6X20
5 Screw 1 √ √
6 Reinforced Plates See Column 7 2 × Φ6X5
7 Drive Unit DM02-500 or DM02-350 1 √ √
8 Chainring 42T 1 √ √
9 Locknut M42X1.5 1 √ √
10 Right Crank 170mm 1 √ √
